Product Description

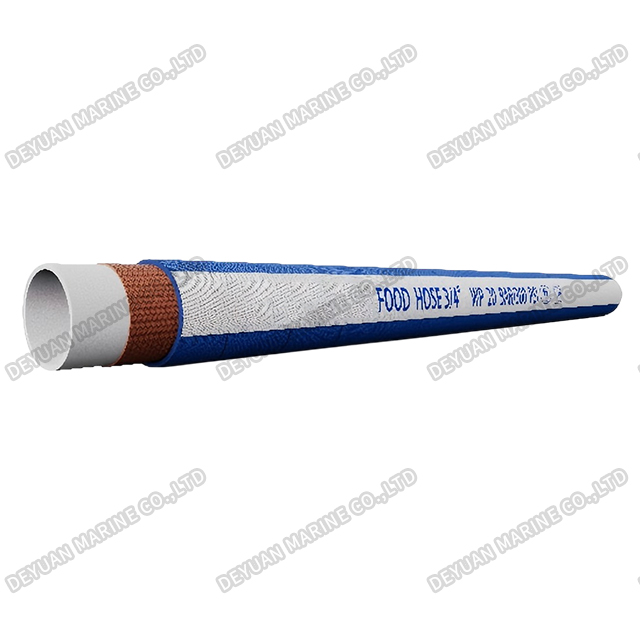

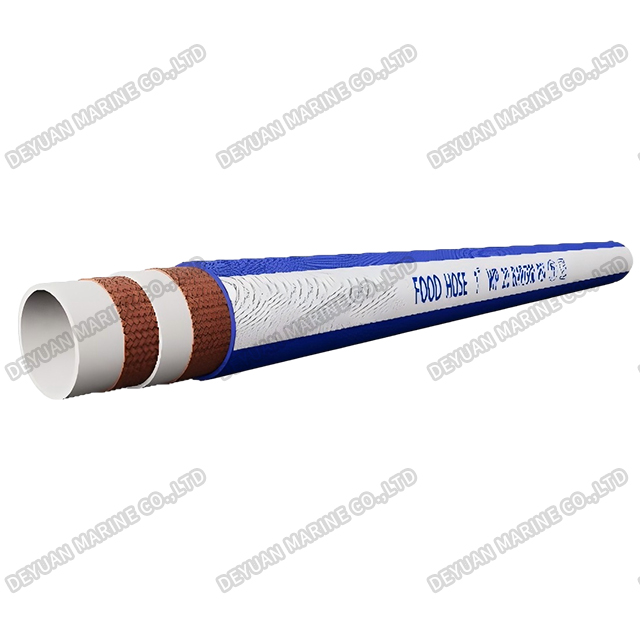

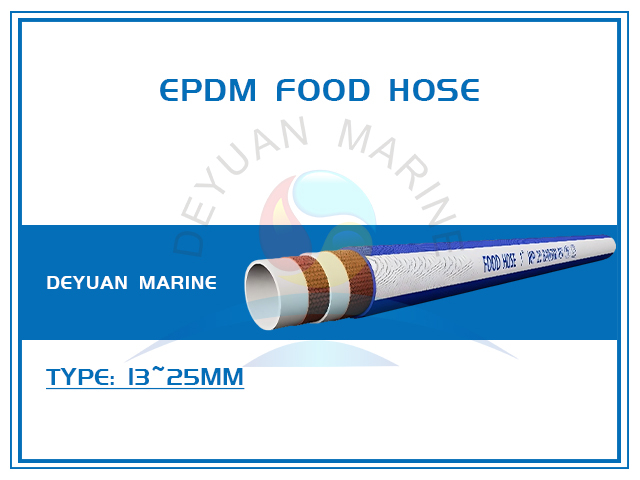

Ethylene Propylene Diene Monomer Food Hose
Product Introduction:
EPDM Food Hose is a high-quality, food-grade industrial hose specifically engineered for the safe and hygienic transfer of a wide range of food and beverage products, as well as hot water and steam cleaning applications. Featuring an inner tube made of EPDM (Ethylene Propylene Diene Monomer) rubber, this hose offers excellent heat resistance, superior water resistance, outstanding weatherability, and full compliance with international food safety standards.
Product Parameters:
| Inner | EPDM |
| Cover | EPDM |
| Working Temperature | -40 ℃ ~150 ℃ |
| Safety Factor | 3:1 |
| Color | Blue, Green, Black, Etc |
| Reinforcement layer | Single layer braiding with high-strength textile cord;Double layer braiding with high-strength textile cord |
| Application | Used for transporting non greasy foods such as drinking water and beverages.Mainly used in the food processing industry. |
Specification Dimensions:
| Inside Diameter | Working Pressure | Max Length | Inside Diameter | Working Pressure | Max Length | ||
| mm | inch | bar | m | mm | inch | bar | m |
| 13 | 1/2" | 20 | 100 | 13 | 1/2" | 20 | 100 |
| 16 | 5/8" | 20 | 100 | 16 | 5/8" | 20 | 100 |
| 19 | 3/4" | 20 | 100 | 19 | 3/4" | 20 | 100 |
| 25 | 1" | 10 | 100 | 25 | 1" | 20 | 100 |
| Note:Specifications,pressures,colors,etc.can be customized according to requirements | |||||||
Key Features:
1.Food-Grade Compliance – Manufactured from non-toxic, odorless, and tasteless EPDM rubber compound. Complies with FDA 21 CFR 177.2600, EU Regulation 10/2011, 3-A Sanitary Standards, and NSF 51 requirements for food contact applications.
2.Excellent Heat Resistance – Designed for continuous service from -40°C to +120°C (-40°F to +248°F), with the ability to withstand intermittent steam cleaning up to +140°C (+284°F) for short durations.
3.Superior Water & Detergent Resistance – EPDM rubber offers outstanding resistance to hot and cold water, aqueous solutions, cleaning agents, and sanitizers, making it ideal for dairy, beverage, and general food processing environments.
4.Excellent Weather & Ozone Resistance – Highly resistant to UV radiation, ozone cracking, and outdoor aging, ensuring long service life even in exposed or wash-down environments.
5.Smooth, Non-Porous Inner Surface – The hygienic, bacteria-resistant inner tube prevents product absorption, flavor transfer, and residue buildup, allowing easy cleaning and minimizing contamination risks.
6.Reinforced Construction – Typically reinforced with one or more layers of high-strength synthetic textile braids, providing excellent pressure resistance, kink resistance, and dimensional stability. Some models include a helix wire for vacuum service or static dissipation.
7.Flexible & Lightweight – Remains flexible even at low temperatures, reducing operator fatigue during handling and installation.
