Product Description

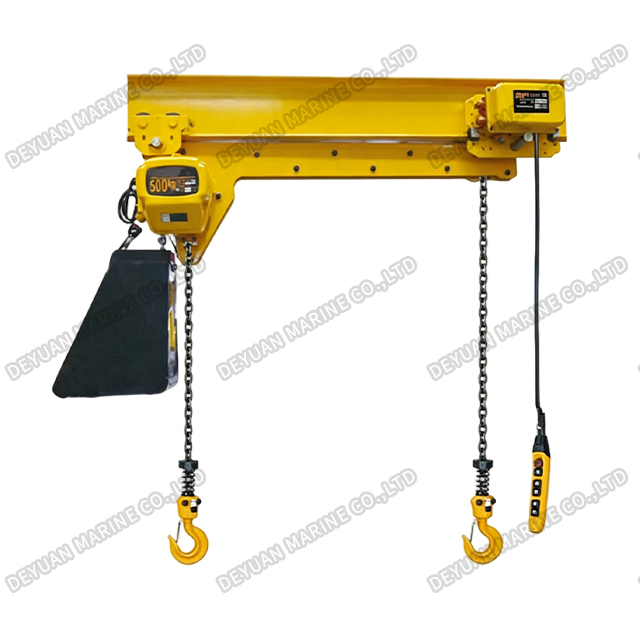

500kg-5Ton Double Hook Chain Electric Hoist
Product Introduction:
The 500kg-5Ton Double Hook Chain Electric Hoist is a specialized lifting solution designed for handling long, unbalanced, or irregularly shaped loads. With a capacity range from 500 kilograms to 5 tons, this hoist features a dual-hook design that provides superior load stability compared to standard single-hook models.
Key Features:
1.Dual Hook Design: Two lifting points distribute weight evenly, preventing load tilting or spinning. Ideal for lifting beams, pipes, molds, and long steel sections.
2.Wide Capacity Range: Available from 500kg to 5 tons to suit various applications.
3.Smooth Electric Operation: Powered by an efficient electric motor with precise positioning and low noise.
4.High-Strength Chain: Made from alloy steel with high tensile strength and wear resistance.
5.Enhanced Safety Features: Includes overload protection, emergency stop, and a reliable electromagnetic brake.
6.Easy Control: Pendant control or optional remote control for safe operation from a distance.
7.Durable Construction: Robust housing designed for industrial environments such as factories, warehouses, shipyards, and construction sites.

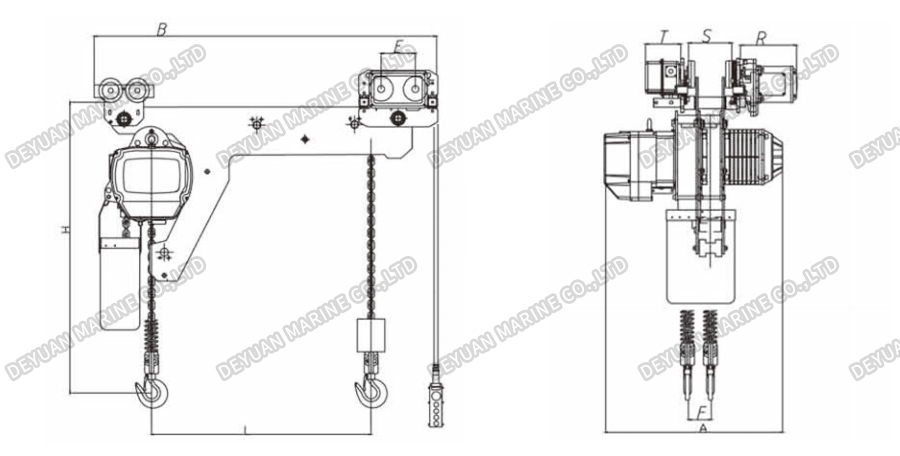

Drawing:
Technical Parameters:
| Lifting weight (t) | Model | Lifting speed (m/min) | Lifting electric power (kw) | Rotational speed (r/min) | Motor insulation class | Working voltage | Control voltage | Chain return | Chain specification |
| 0.5T | SK-0025+0025 | 6.8 | 0.8 | 1400 | F | 3P/220V-690V/50Hz | 24V/36V/48V | 2×1 | Φ6.3 |
| 1T | SK-005+005 | 6.6 | 1.5 | 1400 | F | 3P/220V-690V/50Hz | 24V/36V/48V | 2×1 | Φ7.1 |
| 2T | SK-010+010 | 6.6 | 3.0 | 1400 | F | 3P/220V-690V/50Hz | 24V/36V/48V | 2×1 | Φ10.0 |
| 3T | SK-015+015 | 5.4 | 3.0 | 1400 | F | 3P/220V-690V/50Hz | 24V/36V/48V | 2×1 | Φ10.0 |
| 5T | SK-025+025 | 2.7 | 3.0 | 1400 | F | 3P/220V-690V/50Hz | 24V/36V/48V | 2×2 | Φ11.2 |
