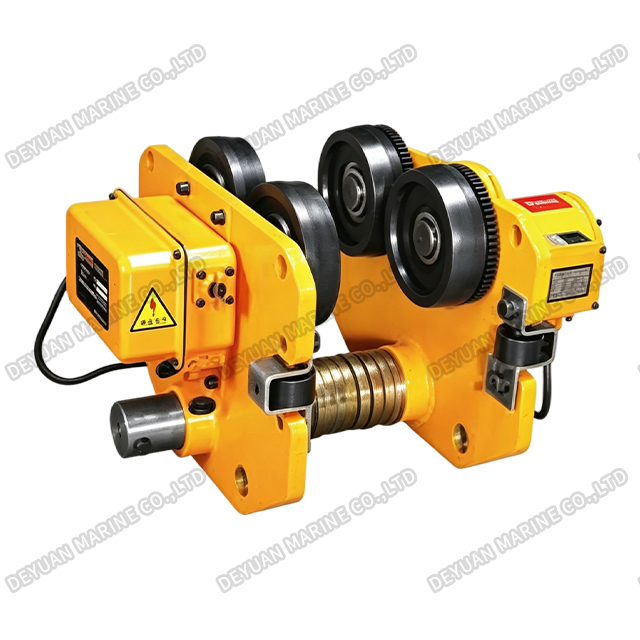

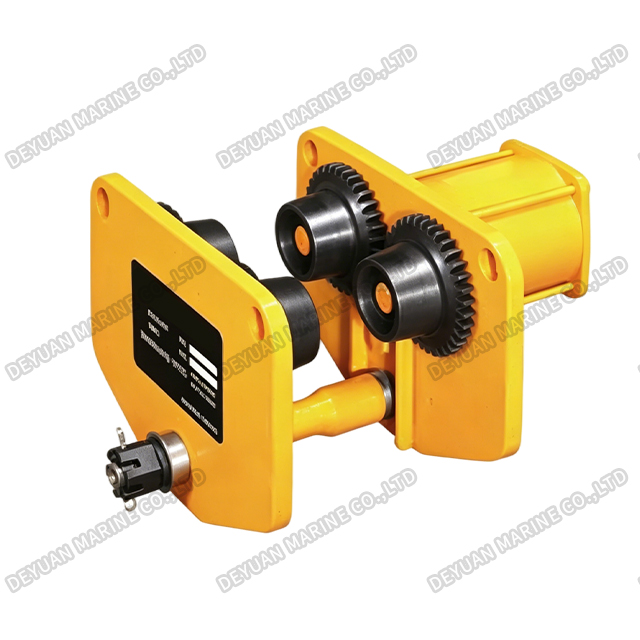

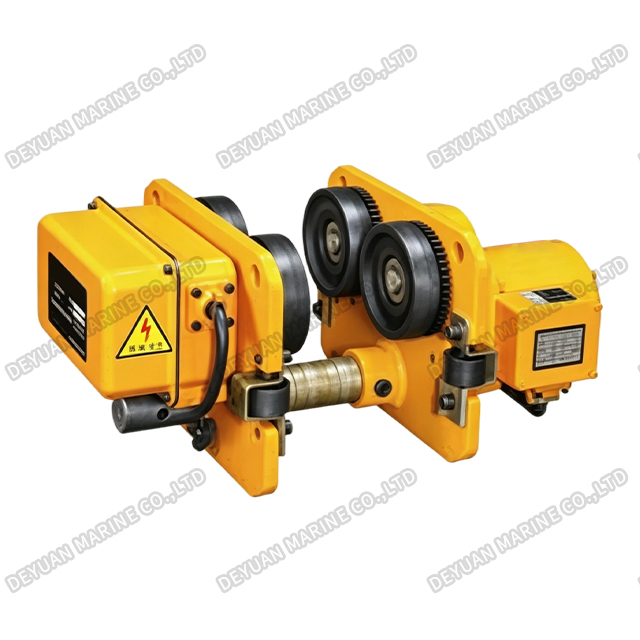

Electric Pulley For Electric Chain Hoist
Product Introduction:
The Electric Pulley for Electric Chain Hoist is an innovative powered drive unit designed to replace or supplement traditional chain wheel assemblies in electric chain hoist systems. Unlike a passive chain guide or idler pulley, this electric pulley integrates a high-efficiency motor, precision gear train, and load-sensing electronics into a compact, wheel-shaped housing. When installed on an electric chain hoist — especially low‑headroom or space‑constrained configurations — it actively drives the load chain, reduces chain wear, and enables smoother lifting with better positional control.
Engineered for hoist capacities from 2 t to 10 t, the Electric Pulley can be used as a bolt‑on powered assist module for standard hoists or as a key component in custom low‑headroom lifting systems. Its motor is fully enclosed, IP55 rated, and equipped with an electromagnetic brake. The pulley’s chain pockets are machined to match ISO/grade V alloy chains, ensuring positive engagement without slipping or sprocket skipping.

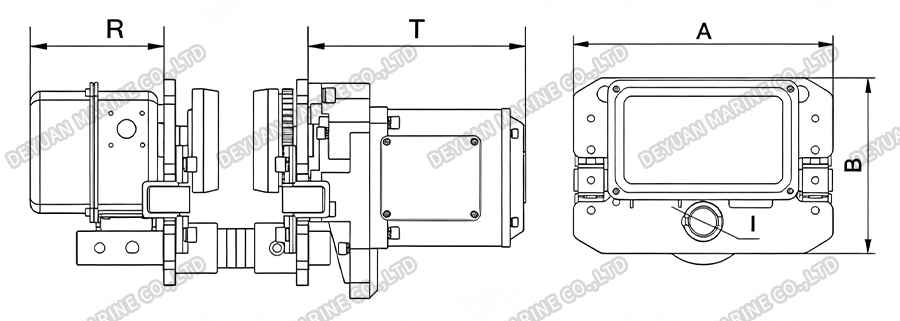

Drawing:
Size Specification:
| Type | ET-005 | ET-01 | ET-02 | ET-03 | ET-05 | ET-075 | ET-100 | |
| Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 7.5 | 10 | |
| Unit(mm) | A | 315 | 315 | 325 | 340 | 400 | 400 | 500 |
| B | 212 | 212 | 220 | 250 | 291 | 291 | 370 | |
| R | 142 | 142 | 142 | 142 | 142 | 142 | 142 | |
| T | 231 | 231 | 231 | 231 | 231 | 231 | 231 | |
| I | φ31 | φ31 | φ36 | φ43 | φ54 | φ54 | φ70 | |
| Speed 50Hz(m/min) | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | |
| Motor(kW) | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | |
| Minimum Turning Radius(m) | 0.8 | 0.8 | 0.8 | 1.0 | 1.8 | 1.8 | 2.5 | |
| I-Beam(mm) | 52-153 | 52-153 | 82-178 | 100-178 | 100-178 | 100-178 | 150-220 | |
Key features:
*Active chain driving – transforms a passive chain guide into a powered, synchronized drive point
*Ultra‑low headroom contribution – only 60 mm added height above the chain line
*Dual functionality – works as an auxiliary drive (to share load) or as the main drive in compact hoist designs
*Intelligent control interface – accepts pendant, remote, or PLC signals with integrated overload protection
*Easy retrofit – bolts onto existing hoist frames between the chain container and the lifting point
