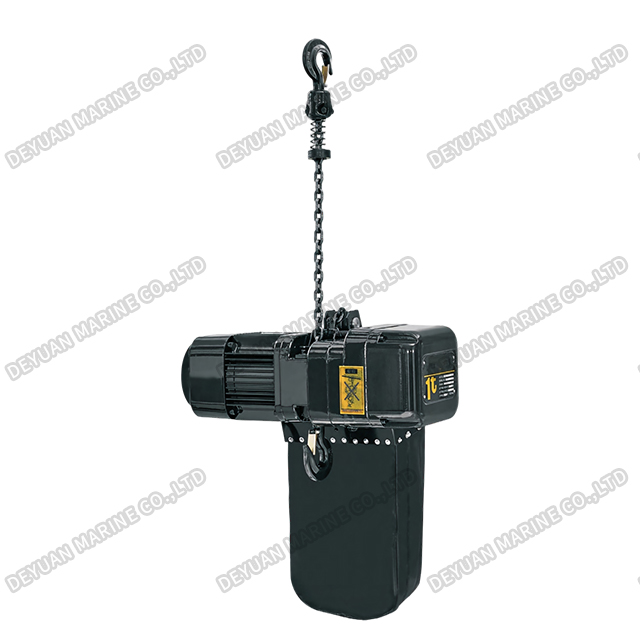

TH-DG Type Inverted Stage Electric Chain Hoist
Product Introduction:
The Inverted Stage Electric Chain Hoist is a specialized lifting solution engineered specifically for the entertainment industry, including theaters, concert venues, exhibition halls, and television studios. Unlike conventional upright hoists, the inverted design positions the motor and gearbox above the load chain, with the chain exiting from the top, making it ideal for suspension from trusses, grids, and overhead rigging structures. This configuration eliminates the need to lift heavy hoist heads to height during installation, significantly simplifying setup and enhancing operational safety.
Technical Specifications:
| Model | TH-DG-025 | TH-DG-050 | TH-DG-100 | TH-DG-200 |
| Capacity(T) | 0.25 | 0.5 | 1 | 2 |
| Lifting Height(m) | 3 | 3 | 3 | 3 |
| Lifting Speed(m/min) | 9.2 | 8.3 | 6.3 | 6.9 |
| Motor Power(kw) | 0.56 | 0.9 | 1.5 | 3.0 |
| Insulation Class | F | F | F | F |
| Chain Dia. (mm) | 4 | 6.3 | 7.1 | 10 |
| No.of Chain | 1 | 1 | 1 | 1 |
| Unit Weight(kg) | 29/34 | 39/34 | 59/64 | 101/107 |
| Extra Weight Per Meter(kg) | 0.45 | 0.81 | 1.1 | 2.3 |

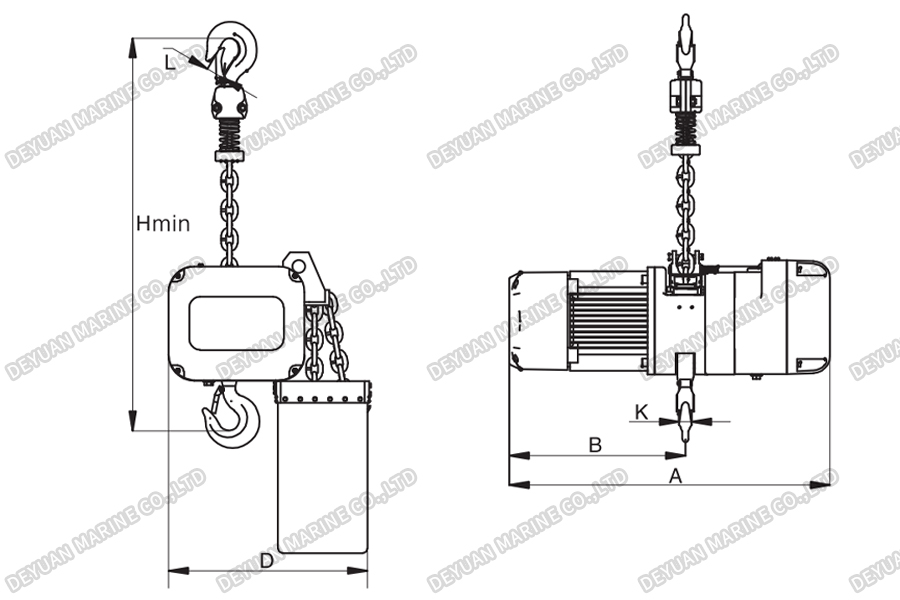

Drawing:
Main Dimensions:
| Model | Capacity(T) | H | A | B | D | K | L |
| TH-DG-025 | 0.25 | 354 | 475 | 260 | 300 | 20 | 28 |
| TH-DG-050 | 0.5 | 380 | 510 | 265 | 315 | 20 | 28 |
| TH-DG-100 | 1 | 410 | 620 | 326 | 305 | 24 | 34 |
| TH-DG-200 | 2 | 615 | 745 | 410 | 420 | 30 | 40 |
Key Features:
1.The hoist hook can be conveniently suspended from overhead ceiling beams or fixed structural supports for effortless operation. Alternatively, it may be utilized in the traditional manner, suspended from lifting beams with the hoisting mechanism attached.
2.A dual-brake system, combining electromagnetic and mechanical braking devices, operates in unison to deliver enhanced safety and reliable performance.
3.The hoist is available in both single-speed and dual-speed versions, with rated capacities from 0.25T to 2T.
4.Power requirements: 3-phase, 220V–690V, 50Hz power supply, with a 24V control voltage.
This hoist is widely applied in stage, theater, and temporary construction environments, ideal for the installation of lighting and sound equipment, as well as for general load lifting and positioning tasks.
