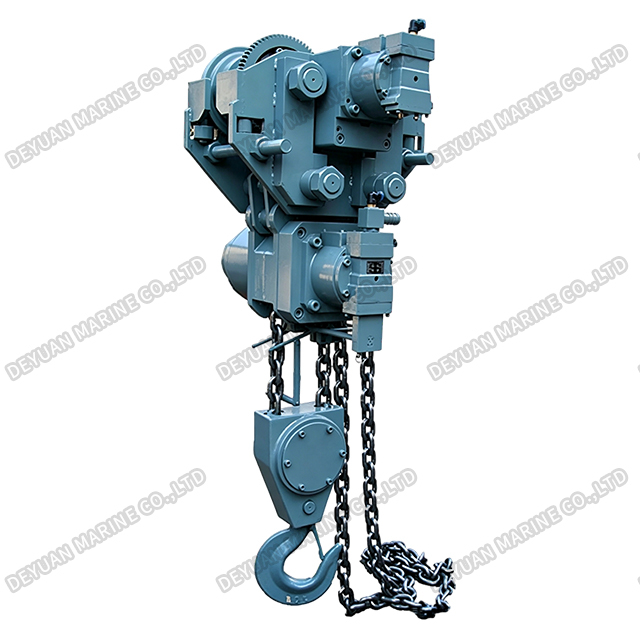

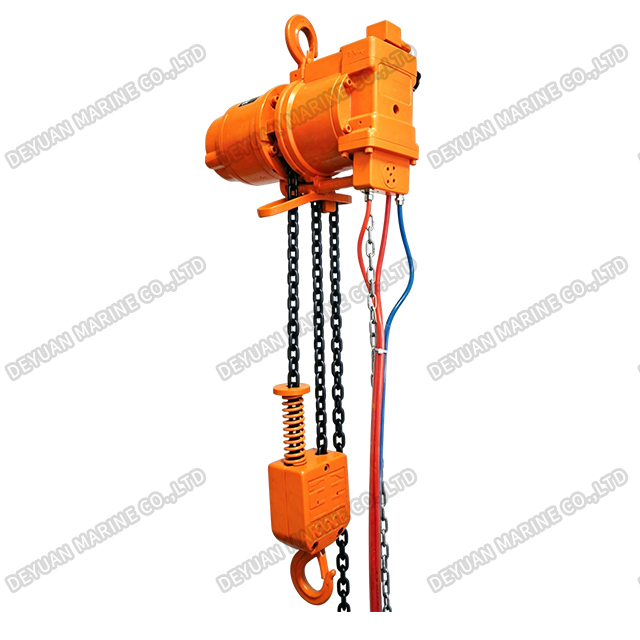

THSQ Type Electric Chain Hoist
Product Introduction:
The THSQ Type Electric Chain Hoist is a high-performance material handling solution engineered for reliability, safety, and efficiency in industrial environments. Designed with a compact structure and robust construction, this hoist is ideal for precise lifting operations in workshops, warehouses, assembly lines, and construction sites. Its modular design ensures easy maintenance and long service life, making it a cost-effective choice for continuous heavy-duty applications.
Key Features:
1.High-Grade Motor & Brake System: Equipped with a heavy-duty, thermally protected motor and an electromagnetic disc brake, the THSQ hoist ensures instant, secure load holding with minimal wear, guaranteeing operator safety.
2.Durable Load Chain: The hoist uses a high-strength, case-hardened alloy steel load chain, which offers exceptional resistance to wear and elongation. This ensures consistent performance and safety even under rated maximum loads.
3.Precision Control: Available with both single-speed and dual-speed control options, the THSQ hoist allows for smooth acceleration and precise load positioning. An optional low-voltage pendant control provides additional safety for the operator.
4.IP54 Protection: With an industry-standard IP54 protection rating, the hoist is well-protected against dust and water splashes, ensuring dependable operation in demanding work conditions.
5.Low Noise & Energy Efficiency: Engineered with high-efficiency gearing and precision-machined components, the THSQ operates with low noise levels and reduced energy consumption, contributing to a better working environment and lower operational costs.
Technical Specifications:
| Model | TSHQ 02 | TSHQ 03 | TSHQ 04 | TSHQ 05 | TSHQ 06 | TSHQ 07 | TSHQ 08 | TSHQ 09 | TSHQ 10 | TSHQ 11 | TSHQ 12 | TSHQ 13 | TSHQ 14 | TSHQ 15 | TSHQ 16 |
| Capacity(t) | 0.125 | 0.25 | 0.5 | 1 | 2 | 3.2 | 5 | 8/10 | 15/16 | 20 | 25 | 30 | 40 | 50 | 60 |
| Lifting Speed(m/min) | 11 | 9 | 7 | 4 | 4 | 3 | 1.2 | 1.0 | 6 | 1.0 | 0.8 | 0.6 | 0.5 | ||
| Lowering Speed(m/min) | 12 | 10 | 8 | 5 | 4 | 3 | 1.2 | 1.0 | 0.8 | 1.0 | 0.8 | 0.6 | 0.5 | ||
| Motor Power(ps) | 0.9 | 2.2 | 3.2 | 5.5 | 9 | 9 | 18 | 15 | 18.4 | ||||||
| Air consumption(m³/min) | 1 | 1.86 | 2.56 | 3.6 | 6.8 | 13.5 | 16.5 | 20.5 | |||||||
| Working Air Pressure(Mpa) | ≥0.55 | ||||||||||||||
| Load Duration Factor | 100% | ||||||||||||||
| Weight(kg) | 16 | 18 | 28 | 32 | 44 | 58 | 126 | 245 | 320 | 978 | 1100 | 1250 | 1400 | 1500 | 1980 |
| Shut Height(mm) | 320 | 430 | 480 | 610 | 637 | 668 | 814 | 975 | 1100 | 1380 | 1450 | 1600 | 1780 | 1950 | |
| Suitable I-beam(#) | 10-18 | 16-18 | 16-22 | 18-28 | 28-36 | 36-50 | 40-63c | 55c-63c | |||||||
| Length(mm) | 251 | 337 | 346 | 425 | 438 | 448 | 514 | 700 | 1500 | 1650 | 1760 | 1800 | 1980 | ||
| Weight(mm) | 260-287 | 280-305 | 287-311 | 455-495 | 520 | 745 | 780 | 900 | 1350 | 1500 | |||||
| Height(mm) | 240 | 300 | 400 | 560 | 980 | 1100 | 1250 | 1500 | 1680 | 1760 | 2000 | ||||
| Inside Diameter of Air hose for Hoist(mm) | Φ12、Φ14、Φ16、Φ18、Φ22、Φ25、Φ32 | Chose the i.d and length of air hose according to capacity and running distance | |||||||||||||
| Inside Diameter of Air Hose for Trolley(mm) | Φ8、Φ10、Φ12、Φ13、Φ16 | ||||||||||||||
| Inside Diameter of Control Air Hose(mm) | Φ4、Φ6、Φ8、Φ10、Φ12 | ||||||||||||||
Applications:
*Automated production lines
*Shipbuilding and aircraft manufacturing
*Petrochemical industry
*Printing and dyeing industry
*Coal mining industry
