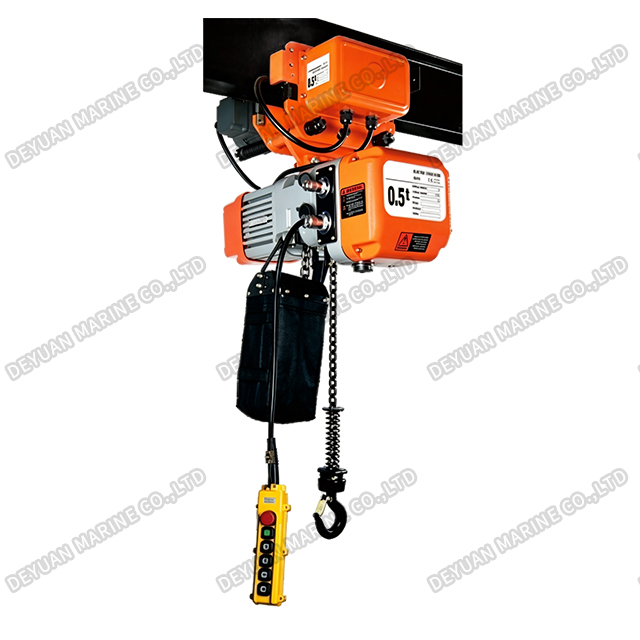

SHH-EC Electric Chain Hoist with Electric Trolley(0.25t-5t)

SHH-EC Electric Chain Hoist with Electric Trolley(0.25t-5t)

Product Introduction:

The SHH-EC Electric Chain Hoist with Electric Trolley is a compact, lightweight, and cost-effective lifting solution designed for light to medium-duty material handling applications. With a rated capacity range from 0.25 tons to 5 tons, this hoist series features an integrated electric trolley that provides motorized horizontal travel along an overhead monorail, delivering efficient two-dimensional load movement – vertical lifting plus horizontal traversing – all controlled effortlessly via pendant push-button or wireless remote.

Engineered for reliability, safety, and ease of use, the SHH-EC is the ideal choice for workshops, assembly lines, warehouses, maintenance facilities, and light industrial environments where space is limited and budget matters.

Technical Parameters:

Size Specification:

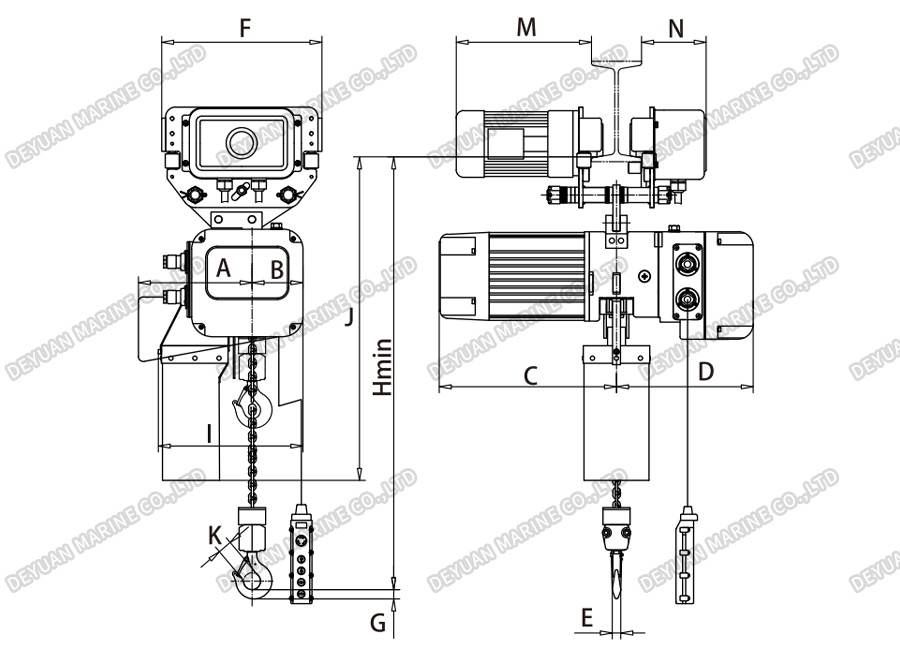

Drawing:

Key Features:

1.Electric Chain Hoist – Utilizes high-strength alloy steel load chain, offering compact dimensions, light weight, and lower cost while delivering reliable lifting performance.

2.Integrated Electric Trolley – Motorized trolley runs smoothly on standard I-beam or H-beam monorails, eliminating manual pushing and reducing operator fatigue.

3.Wide Capacity Range – Available from 0.25 tons to 5 tons, covering micro-load to medium-duty lifting requirements.

4.Compact & Lightweight Design – The chain drive system minimizes overall dimensions, making installation easy in confined spaces and low-headroom environments.

5.High-Strength Load Chain – Manufactured from premium alloy steel with precision heat treatment, offering excellent tensile strength, wear resistance, and long service life.

6.Efficient Electric Motor – Powered by a high-efficiency induction motor with built-in thermal overload protection, ensuring reliable continuous operation.

7.Dual Braking System – Features both an electromagnetic disc brake and a mechanical load brake, providing redundant safety and precise load holding.

8.Precision Limit Switches – Fitted with upper and lower travel limit switches to prevent over-travel, plus chain end-stop protection.

9.Smooth Trolley Travel – Hardened steel wheels and precision bearings ensure quiet, smooth, and low-vibration movement along the rail.

10.Multiple Control Options – Available with pendant push-button control (standard) or wireless remote control (optional).

11.Corrosion-Resistant Finish – Heavy-duty industrial painting with anti-rust primer and topcoat, with optional marine-grade coating for humid or corrosive environments.

12.Low Maintenance – Chain design requires minimal upkeep – only periodic chain lubrication and inspection.

13.Flexible Installation – Compatible with most standard I-beam flange widths (75mm – 180mm).
