Product Description

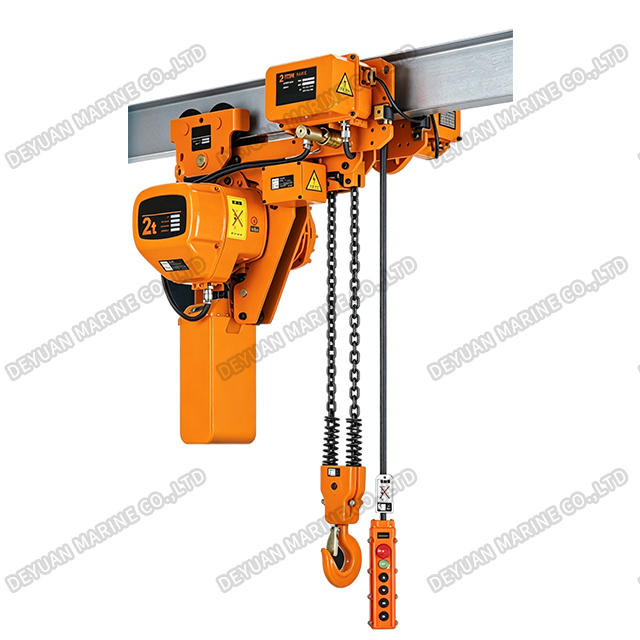

SY-A Type 0.5T-10T Low Headroom Electric Chain Hoist
Product Introduction:
The SY-A Series Low Headroom Electric Chain Hoist, available in capacities from 0.5 tons to 10 tons, is a compact lifting solution specifically engineered for environments with restricted ceiling height. The low headroom design minimizes the distance between the hook and the supporting beam, maximizing the effective lifting height in low-ceiling workshops, tunnels, and other space-constrained locations .
Key Features & Advantages:
1.Ultra-Compact Low Headroom Design: The hoist's structure is optimized to compress the motor, gearbox, and trolley into a minimal profile, allowing the hook to reach much closer to the I-beam. This delivers significantly more usable lift in low buildings compared to standard hoists .
2.Versatile Capacity Range: Covering 0.5T to 10T, this series offers flexible options for various industrial tasks, from light assembly work to heavy material handling .
3.Durable & Reliable Construction: Main components are manufactured from high-quality steel, ensuring long-term durability under demanding operational conditions . The unit can be suspended from an I-beam for straight or curved track travel or mounted on a fixed bracket for stationary lifting .
4.Adaptable Power & Speed Options: Available with single or dual lifting speeds. The drive system operates on standard three-phase power supplies (220-440V, 50/60Hz), with motors sized appropriately for each capacity model .
5.CE & ISO Certified: Manufactured to meet international safety and quality standards, ensuring reliable performance .

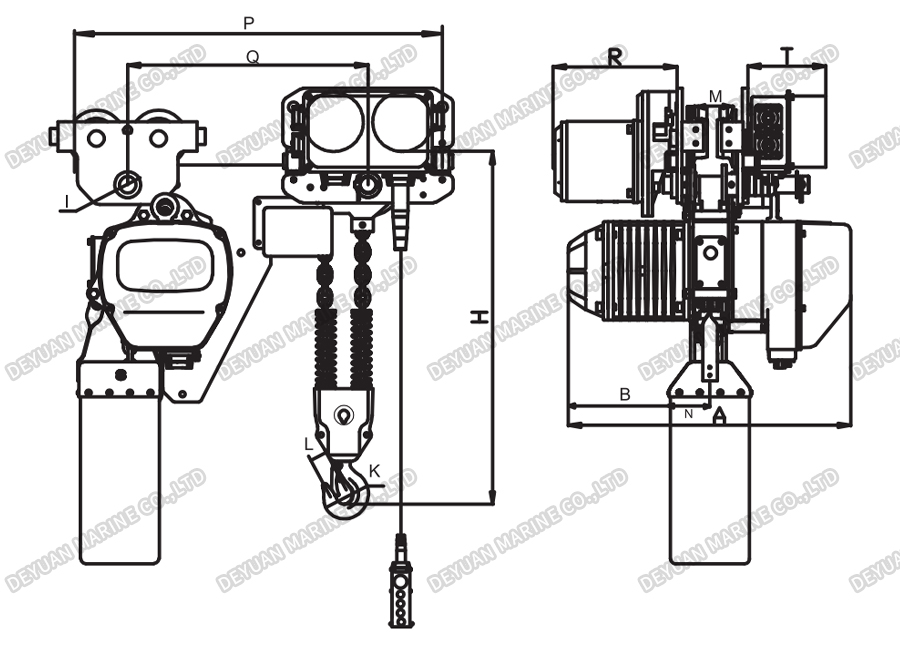

Drawing:
Technical Parameters:
| Model | Capacity | Standard lift | Test load | Motor Power Single/Dual | No.of Chain | Dia of Chain | Lifting Speed Single/Dual | Net weight | Extra weight per meter of extra lift |
| ton | m | kn | (kw) | mm | (m/min) | kg | kg | ||
| SY-A-0.5 | 0.5 | 3 | 6.25 | 0.75,0.8/0.27 | 1 | 6.3 | 6.8,6.9/2.3 | 47 | 0.81 |
| SY-A-1.0 | 1 | 3 | 12.5 | 1.5,1.8/0.6 | 1 | 7.1 | 6.6,6.9/2.3 | 61 | 1.1 |
| SY-A-1.0 | 1 | 3 | 12.5 | 0.75,0.8/0.27 | 2 | 6.3 | 3.4,3.5/1.2 | 52 | 1.62 |
| SY-A-2.0 | 2 | 3 | 25 | 3.0,3.0/1.0 | 1 | 10 | 6.6,6.8/2.3 | 115 | 2.3 |
| SY-A-2.0 | 2 | 3 | 25 | 1.5,1.8/0.6 | 2 | 7.1 | 3.3,3.3/1.1 | 73 | 2.2 |
| SY-A-3.0 | 3 | 3 | 37.5 | 3.0,3.0/1.0 | 1 | 11.2 | 5.4,5.4/1.8 | 122 | 2.8 |
| SY-A-3.0 | 3 | 3 | 37.5 | 3.0,3.0/1.0 | 2 | 10 | 4.4,4.5/1.5 | 131 | 4.7 |
| SY-A-5.0 | 5 | 3 | 62.5 | 3.0,3.0/1.0 | 2 | 11.2 | 2.8,2.7/0.9 | 151 | 5.6 |
| SY-A-7.5 | 7.5 | 3 | 94 | 3.0,3.0/1.0 | 3 | 11.2 | 1.8,1.8/0.6 | 266 | 8.4 |
| SY-A-10 | 10 | 6 | 125 | 3.0,3.0x2/1.0×2 | 4 | 11.2 | 2.7,2.7/0.9 | 335 | 11.2 |

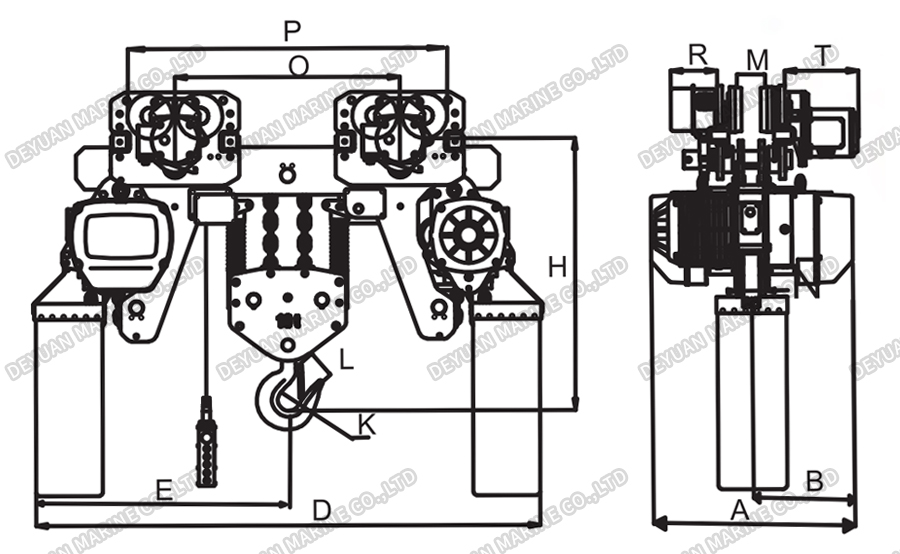

Main Dimensions:
| Model | Capacity | H | A | B | D | E | I | J | K | L | M | N | P | Q | R | T | I-beam size |
| Ton | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| SY-A-0.5 | 0.5 | 440 | 460 | 230 | / | / | 31 | 31 | 35 | 25 | 25 | 17 | 206 | 111 | 142 | 231 | 58-153 |
| SY-A-1.0 | 1.0 | 480 | 520 | 260 | / | / | 31 | 31 | 40 | 31 | 31 | 22 | 206 | 111 | 142 | 231 | 58-153 |
| SY-A-1.0 | 1.0 | 570 | 615 | 295 | / | / | 31 | 36 | 47 | 31 | 31 | 22 | 206 | 111 | 142 | 231 | 58-153 |
| SY-A-2.0 | 2.0 | 535 | 615 | 295 | / | / | 31 | 36 | 47 | 38 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
| SY-A-2.0 | 2.0 | 535 | 520 | 260 | / | / | 31 | 36 | 47 | 38 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
| SY-A-3.0 | 3.0 | 640 | 615 | 295 | / | / | 36 | 43 | 58 | 47 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
| SY-A-3.0 | 3.0 | 685 | 615 | 295 | / | / | 36 | 43 | 58 | 47 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
| SY-A-5.0 | 5.0 | 740 | 615 | 295 | / | / | 43 | 54 | 60 | 48 | 48 | 43 | 296 | 156 | 142 | 231 | 100-178 |
| SY-A-7.5 | 7.5 | 890 | 615 | 295 | / | / | 43 | 54 | 85 | 80 | 80 | 55 | 296 | 156 | 142 | 231 | 100-178 |
| SY-A-10 | 10 | 880 | 630 | 315 | 1640 | 820 | 54 | 54 | 85 | 80 | 80 | 55 | 366 | 191 | 142 | 231 | 150-220 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
