Product Description
SY-D Type 0.25T-1T Electric Chain Hoist
Product Introduction:
The SY-D Series Electric Chain Hoist, available in capacities from 0.25 tons to 1 ton, is a compact and efficient lifting solution tailored for light-duty industrial applications. This model range is ideal for workshops, assembly lines, and small warehouses where precise and reliable lifting of lighter loads is required .
Key Features & Advantages:
1.Quality Steel Construction: Main components are manufactured from high-quality steel, ensuring long-term durability and reliable performance under regular working conditions .
2.Flexible Capacity Options: Available in 0.25T, 0.5T, and 1T models, offering versatile solutions for various light lifting needs .
3.Versatile Mounting: The hoist body can be suspended from an I-beam for straight or curved track travel, or installed on a fixed bracket for stationary lifting operations .
4.Dual Speed Operation: Features lifting speeds of 8/2 m/min for 0.25T and 0.5T models, with 4/1 m/min available for 1T models, allowing both rapid positioning and precise load control .
5.Global Voltage Compatibility: Supports 220V-460V power supplies with 24V control voltage for safe operation .

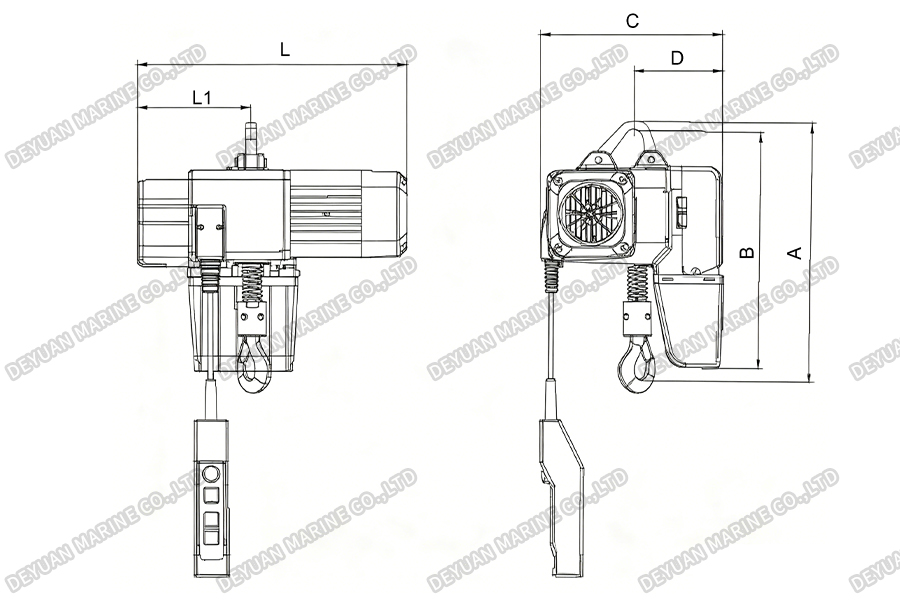

Drawing:
Technical Parameters:
| Model | Capacity (t) | Lifting speed (m/min) | Voltage | Contol voltage | L(mm) | L1(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
| SY-D0.25-01m | 0.25 | 8/2 | 220-460V | 24V | 425 | 156 | 420 | 370 | 275 | 148 |
| SY-D0.5-01m | 0.5 | 8/2 | 467 | 197 | 450 | 400 | 315 | 153 | ||
| SY-D0.5-02m | 0.5 | 4/1 | 425 | 156 | 420 | 420 | 275 | 148 | ||
| SY-D 0.1-01m | 1 | 4/1 | 467 | 197 | 450 | 450 | 315 | 153 |
Typical Applications:
*Small workshop lifting and material handling
*Assembly line feeding and positioning
*Warehouse storage and retrieval
*Light manufacturing operations
*Maintenance and repair tasks
