Product Description

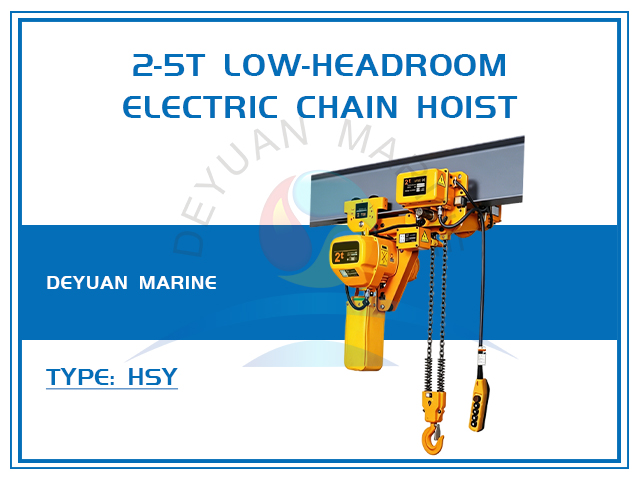

2-5t Low-Headroom Electric Chain Hoist
Product Introduction:
Our 2–5 ton Low-Headroom Electric Chain Hoist is specifically engineered for lifting applications where vertical space is limited. Designed with a compact, low-profile body, this hoist maximizes lift height by minimizing the distance between the hook and the chain fall, making it an ideal solution for workshops, warehouses, shipyards, and construction sites with restricted headroom.
Available in capacities from 2 to 5 tons, the hoist features a high-efficiency electric motor with overload protection, fail-safe electromagnetic braking, and a durable nickel-plated load chain for superior corrosion resistance and wear life. The low-headroom configuration ensures safe and efficient lifting even under low ceilings, mezzanines, or crane beams where standard hoists cannot operate.
Technical Parameters:
| Type | HSY-02002SL | HSY-03002SL | HSY-05002SL | |
| Capacity(t) | 2 | 3 | 5 | |
| Standard Lifting Height(m) | 3 | |||
| Lifting Speed(m/min) | 3.3 | 4.4 | 2.7 | |
| Lifting Motor | Power(KW) | 1.5 | 3.0 | 3.0 |
| Rotation Speed(r/min) | 1440 | |||
| Phases | 3 | |||
| Voltage(V) | 200-440 | |||
| Frequency(Hz) | 50 | |||
| Operating Motor | Power(KW) | 0.4 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 | |||
| Operating Speed(m/min) | 11/21 | |||
| Phases | 3 | |||
| Voltage(V) | 200-440 | |||
| Frequency(Hz) | 50 | |||
| Chain Turns | 2 | |||
| Chain Specification | φ7.1 | φ10.0 | φ11.2 | |
| Test Load(t) | 2.5 | 3.75 | 6.25 | |
| I-Beam(mm) | 82-178 | 100-178 | 100-178 | |
| Weight Added with 1m Higher | 2.2 | 4.7 | 5.6 | |
Size Specification:
| Type | HSY-02002SL | HSY-03002SL | HSY-05002SL |
| H | 535 | 685 | 740 |
| A | 520 | 615 | 615 |
| B | 260 | 295 | 295 |
| K | φ47 | φ58 | φ60 |
| L | 38 | 47 | 48 |
| M | 56 | 66 | 73 |
| N | 30 | 36 | 43 |
| I | 31 | 36 | 43 |
| J | 36 | 43 | 54 |
| P | 665 | 750 | 825 |
| Q | 445 | 503 | 541 |
| R | 142 | 142 | 142 |
| T | 231 | 231 | 231 |
Product Features:
It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairy low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required.
