Product Description

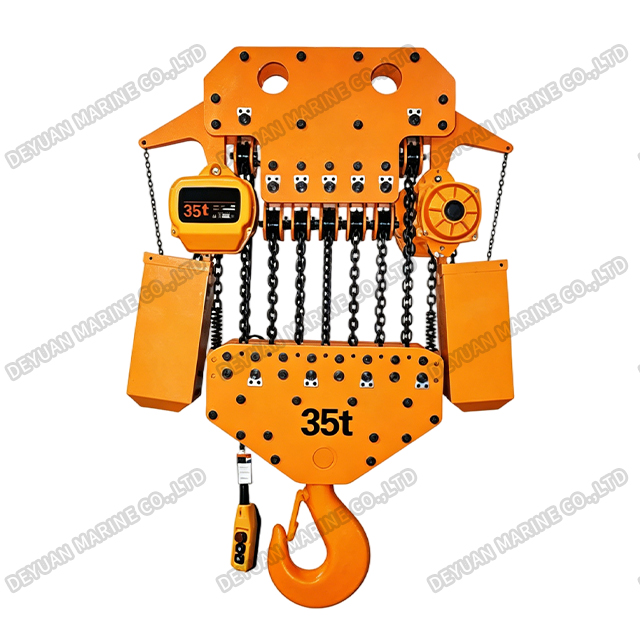

35t Fixed Type Electric Chain Hoist
Product Introduction:
The 35t Fixed Type Electric Chain Hoist is a high-capacity lifting solution designed for heavy-duty industrial applications. With a rated load capacity of 35 metric tons, this electric chain hoist delivers reliable and efficient performance in fixed installation settings, such as workshops, warehouses, manufacturing plants, and maintenance facilities.
Built with a robust alloy steel chain and a high-efficiency electric motor, the hoist ensures smooth lifting and lowering operations under demanding conditions. The fixed type design allows the unit to be securely mounted on an I-beam or a dedicated support structure, providing a stable and space-saving lifting solution.
Key safety features include an electromagnetic disc brake, overload protection device, and limit switches to prevent over-travel. The hoist is also equipped with a durable control pendant for precise handling. Its low maintenance requirements and long service life make it an ideal choice for continuous industrial use.
Whether used for heavy machinery assembly, material handling, or equipment installation, the 35t fixed type electric chain hoist offers the power, safety, and durability required for mission-critical lifting tasks.

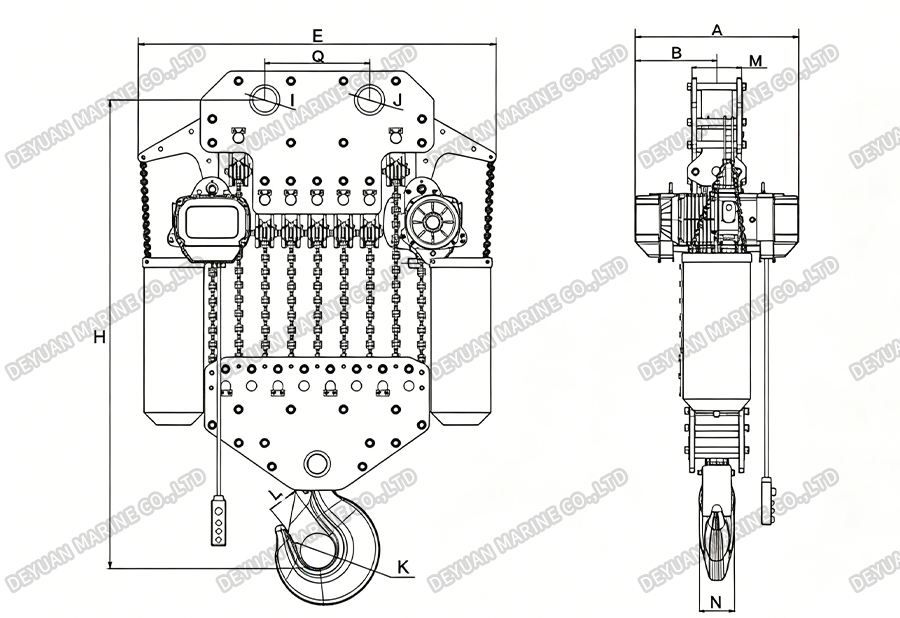

Drawing:
Technical Parameters:
| Type | HSY-35016S | HSY-35016D | |
| Capacity(t) | 35 | ||
| Standard Lifting Height(m) | 3 | ||
| Lifting Speed(m/min) | 0.7 | 0.7/0.25 | |
| Lifting Motor | Power(KW) | 3.0*2 | 3.0*2/1.0*2 |
| Rotation Speed (r/min) | 1440 | 2890/980 | |
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Chain Turns | 16 | ||
| Chain Specification | φ11.2 | ||
| Test Load(t) | 43.75 | ||
| Weight Added with 1m Higher | 44.8 | ||
Size Specification:
| Type | HSY-35016S | HSY-35016D |
| H | 1790 | |
| A | 740 | 795 |
| B | 315 | 352 |
| E | 1500 | |
| I | φ100 | |
| J | φ100 | |
| K | φ200 | |
| L | 140 | |
| Q | 440 | |
| M | 217 | |
| N | 150 | |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
