Product Description

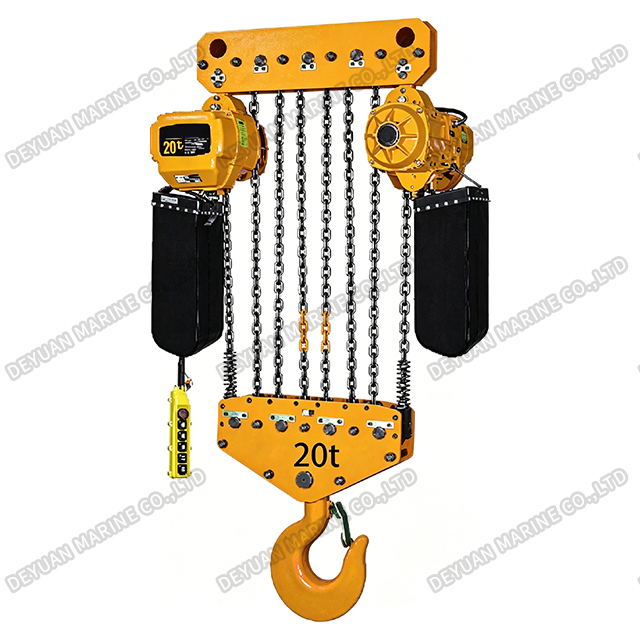

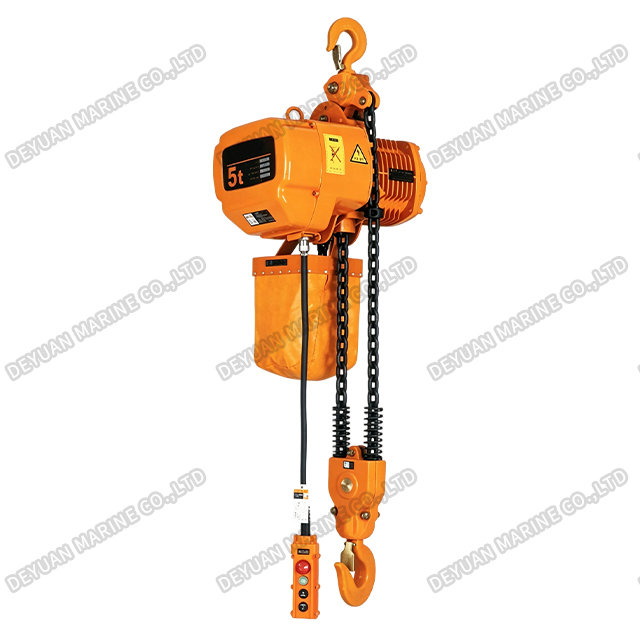

SY-A Type 0.5T-35T Electric Chain Hoist
Product Introduction:
The SY-A Series Electric Chain Hoist is a versatile and reliable lifting solution designed for a broad range of industrial applications. Covering a capacity range from 0.5 tons to 35 tons, this hoist series offers flexibility for light workshop tasks through to heavy material handling operations
The hoist is equipped with a dual-brake system based on advanced Japanese technology, delivering superior safety and operational reliability. Its high-strength aluminum alloy construction ensures a lightweight yet robust structure with a compact footprint. The dual-gear drive mechanism guarantees smooth, quiet performance, while all high-strength alloy steel parts undergo specialized heat treatment to effectively eliminate the risk of sudden breakage.

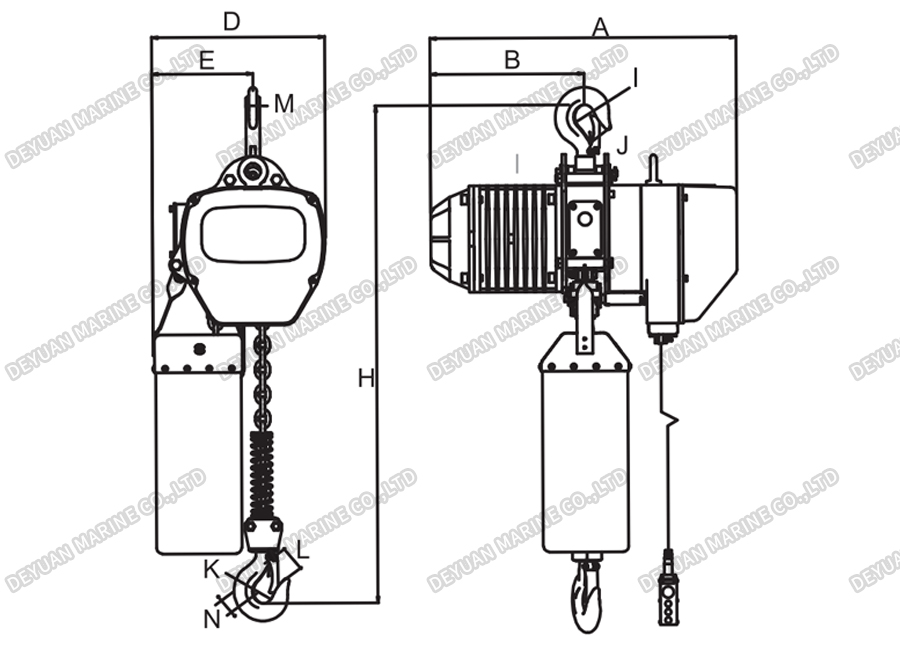

Drawing:
Technical Parameters:
| Model | Capacity | Standard lift | Test load | Motor Power Single/Dual | No.of Chain | Dia of Chain | Lifting Speed Single/Dual | Net weight | Extra weight per meter of extra lift |
| ton | m | kn | (kw) | mm | (m/min) | kg | kg | ||
| SY-A-0.5 | 0.5 | 3 | 6.25 | 0.75,0.8/0.27 | 1 | 6.3 | 6.8,6.9/2.3 | 47 | 0.81 |
| SY-A-1.0 | 1 | 3 | 12.5 | 1.5,1.8/0.6 | 1 | 7.1 | 6.6,6.9/2.3 | 61 | 1.1 |
| SY-A-1.0 | 1 | 3 | 12.5 | 0.75,0.8/0.27 | 2 | 6.3 | 3.4,3.5/1.2 | 52 | 1.62 |
| SY-A-2.0 | 2 | 3 | 25 | 3.0,3.0/1.0 | 1 | 10 | 6.6,6.8/2.3 | 115 | 2.3 |
| SY-A-2.0 | 2 | 3 | 25 | 1.5,1.8/0.6 | 2 | 7.1 | 3.3,3.3/1.1 | 73 | 2.2 |
| SY-A-3.0 | 3 | 3 | 37.5 | 3.0,3.0/1.0 | 1 | 11.2 | 5.4,5.4/1.8 | 122 | 2.8 |
| SY-A-3.0 | 3 | 3 | 37.5 | 3.0,3.0/1.0 | 2 | 10 | 4.4,4.5/1.5 | 131 | 4.7 |
| SY-A-5.0 | 5 | 3 | 62.5 | 3.0,3.0/1.0 | 2 | 11.2 | 2.8,2.7/0.9 | 151 | 5.6 |
| SY-A-7.5 | 7.5 | 3 | 94 | 3.0,3.0/1.0 | 3 | 11.2 | 1.8,1.8/0.6 | 266 | 8.4 |
| SY-A-10 | 10 | 6 | 125 | 3.0,3.0x2/1.0x2 | 4 | 11.2 | 2.7,2.7/0.9 | 335 | 11.2 |
| SY-A-15 | 15 | 6 | 187.5 | 3.0X2,3.0x2/1.0x2 | 6 | 11.2 | 1.8,1.8/0.6 | 451 | 17 |
| SY-A-20 | 20 | 6 | 250 | 3.0X2,3.0x2/1.0x2 | 8 | 11.2 | 1.4,1.5/0.6 | 546 | 22 |
| SY-A-25 | 25 | 6 | 312.5 | 3.0X2,3.0x2/1.0x2 | 10 | 11.2 | 1.1,1.2/0.4 | 624 | 28 |
| SY-A-30 | 30 | 6 | 375 | 3.0X2,3.0x2/1.0x2 | 12 | 11.2 | 0.9,1.0/0.3 | 1143 | 31 |
| SY-A-35 | 35 | 6 | 437.5 | 3.0X2,3.0x2/1.0×2 | 16 | 11.2 | 0.7,0.7/0.25 | 1385 | 44.8 |
Main Dimensions:
| Model | Capacity | H | A | B | D | E | I | J | K | L | M | N |
| Ton | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| SY-A-0.5 | 0.5 | 530 | 545 | 260 | 280 | 160 | 35 | 28 | 35 | 25 | 17 | 17 |
| SY-A-1.0 | 1 | 650 | 582 | 280 | 300 | 176 | 40 | 31 | 40 | 31 | 22 | 22 |
| SY-A-1.0 | 1 | 650 | 545 | 260 | 280 | 205 | 40 | 31 | 40 | 31 | 22 | 2 |
| SY-A-2.0 | 2 | 800 | 670 | 313 | 430 | 265 | 47 | 40 | 47 | 38 | 30 | 30 |
| SY-A-2.0 | 2 | 835 | 582 | 280 | 300 | 236 | 47 | 38 | 47 | 38 | 30 | 30 |
| SY-A-3.0 | 3 | 845 | 670 | 313 | 430 | 265 | 58 | 47 | 58 | 47 | 36 | 36 |
| SY-A-3.0 | 3 | 950 | 670 | 313 | 430 | 320 | 58 | 47 | 58 | 47 | 36 | 36 |
| SY-A-5.0 | 5 | 1030 | 670 | 313 | 430 | 325 | 60 | 48 | 60 | 48 | 43 | 43 |
| SY-A-7.5 | 7.5 | 1200 | 670 | 313 | 505 | 320 | 54 | 31 | 85 | 80 | 85 | 55 |
| SY-A-10 | 10 | 1400 | 685 | 352 | / | 890 | 85 | 80 | 80 | 80 | 104 | 55 |
| SY-A-15 | 15 | 1310 | 630 | 315 | 1070 | 535 | 54 | 54 | 120 | 96 | 88 | 78 |
| SY-A-20 | 20 | 1470 | 630 | 315 | 1260 | 630 | 70 | 70 | 150 | 115 | 88 | 98 |
| SY-A-25 | 25 | 1580 | 630 | 315 | 1260 | 725 | 70 | 70 | 150 | 115 | 88 | 95 |
| SY-A-30 | 30 | 1640 | 740 | 315 | 1300 | 725 | 100 | 100 | 140 | 95 | 217 | 130 |
| SY-A-35 | 35 | 1790 | 740 | 315 | 1500 | 725 | 100 | 100 | 200 | 140 | 217 | 150 |
Typical Applications:
*Warehouses and storage facilities
*Manufacturing and assembly lines
*Construction sites and building material handling
*Docks and logistics centers
*General lifting, fixing, binding, and traction tasks
