Product Description

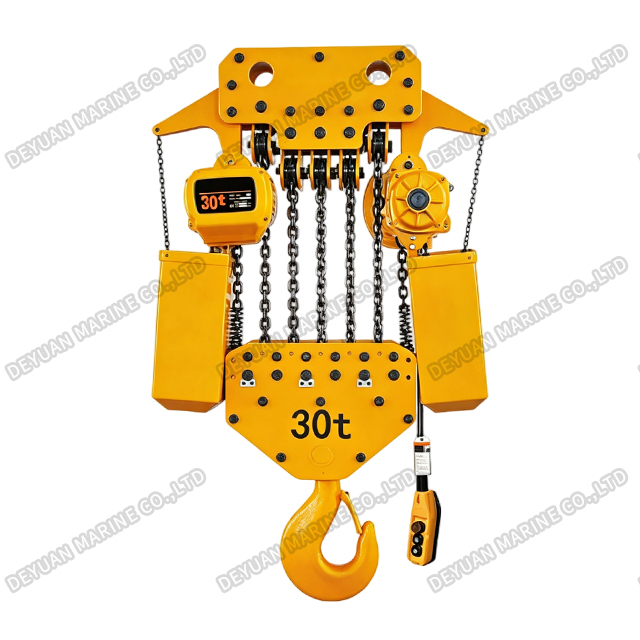

30t Fixed Type Electric Chain Hoist
Product Introduction:
Our 30t Fixed Type Electric Chain Hoist is a heavy-duty stationary lifting solution engineered for extreme industrial applications where overhead rail travel is not required. With a robust fixed suspension design, this hoist delivers powerful, reliable electric lifting for massive loads up to 30 tons from a single stationary point.
Key Features:
1.Ultra-High Capacity – Rated at 30 tons, designed for the heaviest lifting tasks in shipbuilding, steel mills, heavy fabrication, and large-scale construction.
2.Fixed Suspension Design – Top hook or fixed lug mounting allows secure attachment to gantry cranes, A-frames, structural beams, or davit systems. No trolley or rail system required.
3.Multi-Chain Lifting System – Utilizes seven or eight load-bearing chains to evenly distribute the extreme 30-ton load, ensuring safety, stability, and extended component life.
4.Heavy-Duty Braking System – Dual independent fail-safe brakes provide absolute load holding security, even during power failure or emergency stops.
5.Variable Frequency Drive (VFD) Option – Available VFD control for stepless speed adjustment, enabling ultra-precise load positioning for sensitive or valuable cargo.
5.Intelligent Overload Protection – Advanced electronic load limiter with real-time display prevents operation beyond rated capacity.
6.Extreme-Duty Construction – Reinforced steel housing with IP55 rating and corrosion-resistant coating for marine, offshore, and harsh environment applications.

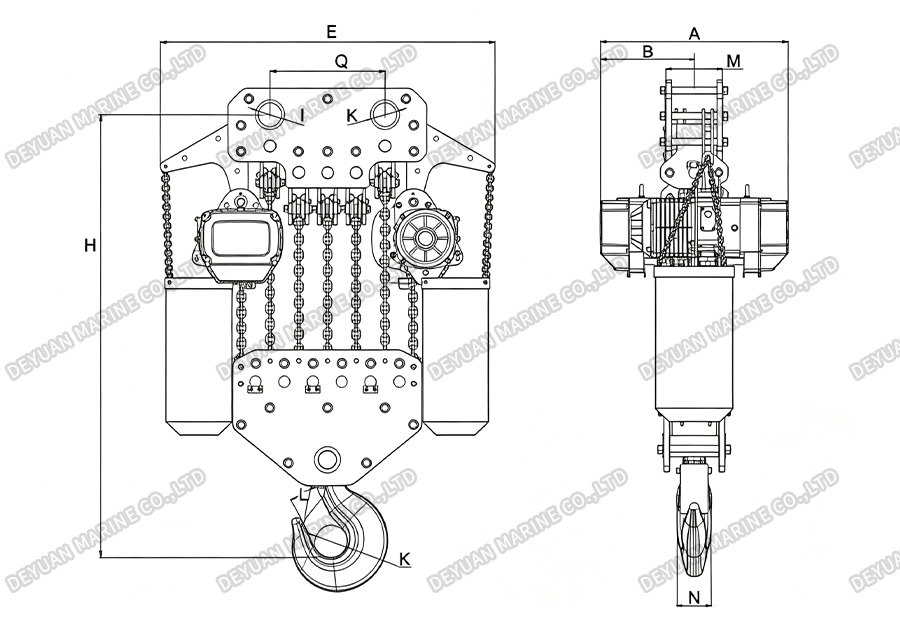

Drawing:
Technical Parameters:
| Type | HSY-30012S | HSY-30012D | |
| Capacity(t) | 30 | ||
| Standard Lifting Height(m) | 3 | ||
| Lifting Speed(m/min) | 0.9 | 1.0/0.3 | |
| Lifting Motor | Power(KW) | 3.0*2 | 3.0*2/1.0*2 |
| Rotation Speed (r/min) | 1440 | 2890/980 | |
| Phases | 3 | ||
| Voltage(V) | 200-440 | ||
| Frequency(Hz) | 50 | ||
| Chain Turns | 12 | ||
| Chain Specification | φ11.2 | ||
| Test Load(t) | 37.50 | ||
| Weight Added with 1m Higher | 28.0 | ||
Size Specification:
| Type | HSY-30012S | HSY-30012D |
| H | 1640 | |
| A | 740 | 795 |
| B | 315 | 352 |
| E | 1300 | |
| I | φ100 | |
| J | φ100 | |
| K | φ140 | |
| L | 95 | |
| Q | 440 | |
| M | 217 | |
| N | 130 | |
Advantages:
*Simple, cost-effective installation – no rails or tracks needed
*Ideal for fixed lifting points or single-station operations
*Lower initial investment compared to trolley-mounted systems
*Suitable for outdoor and marine environments with optional coatings
*Reduced maintenance with fewer moving components
Typical Applications:
*Extreme heavy component lifting at fixed workstations
*Shipyard block and section assembly (large hatch covers, bulkheads)
*Steel mill ladle, slab, and coil handling
*Heavy machinery manufacturing (large presses, turbines, generators)
*Offshore platform equipment installation and maintenance
*Large-scale warehouse heavy goods handling at fixed bays
*Construction sites with gantry crane or A-frame setups
