End Beam Motor
Product Introduction:

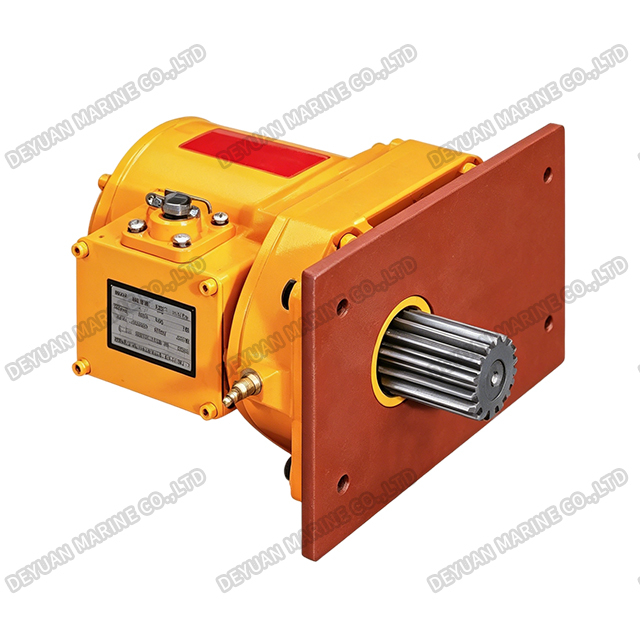

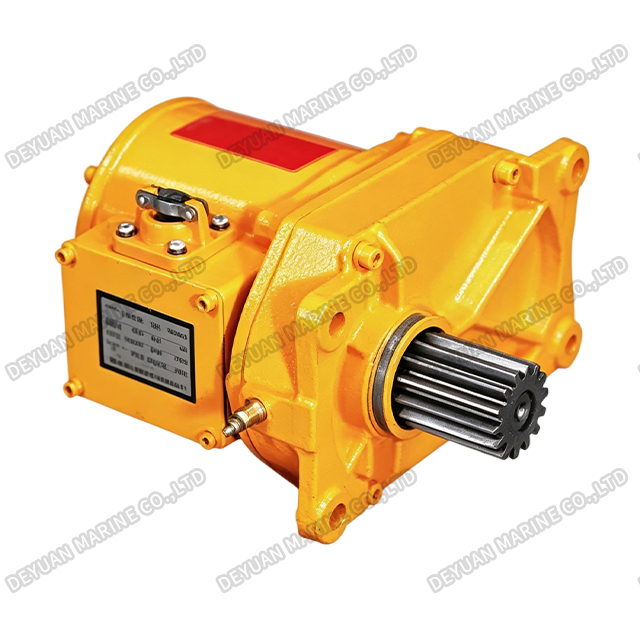

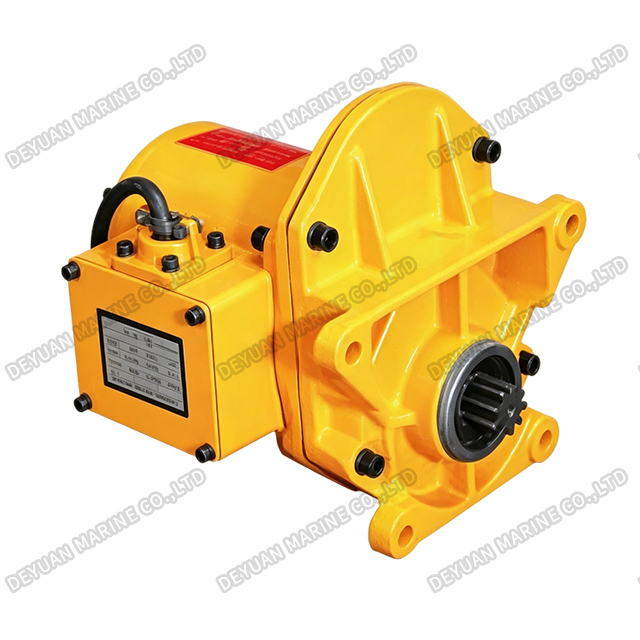

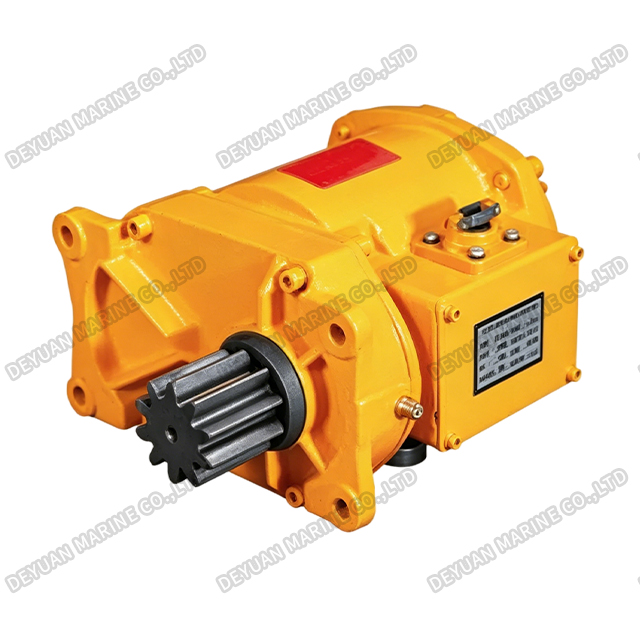

The End Beam Motor is a compact, high-performance drive unit specifically designed for the end carriages of overhead cranes, gantry cranes, and monorail systems. As the core component responsible for the crane travel motion (also known as the long-travel or bridge movement), the end beam motor converts electrical power into mechanical torque to drive the crane smoothly along the runway rails.
Engineered for heavy-duty industrial environments, this motor is typically configured as an integrated "three-in-one" drive system that combines a high-efficiency electric motor, a helical-gear reducer, and a fail-safe electromagnetic brake into a single, space-saving housing. This integrated design eliminates the need for separate couplings or additional mounting brackets, simplifying installation and reducing maintenance requirements.
The end beam motor is available in a wide power range — typically from 0.2 kW to 15 kW — to suit crane capacities from 1 ton up to 50 tons or more. It features class F or H insulation, IP55 or higher ingress protection, and is designed for intermittent duty cycles (S3 or S4) common in crane applications. The motor shaft connects directly to the crane's wheel axle, providing reliable, high-torque starting and precise stopping.

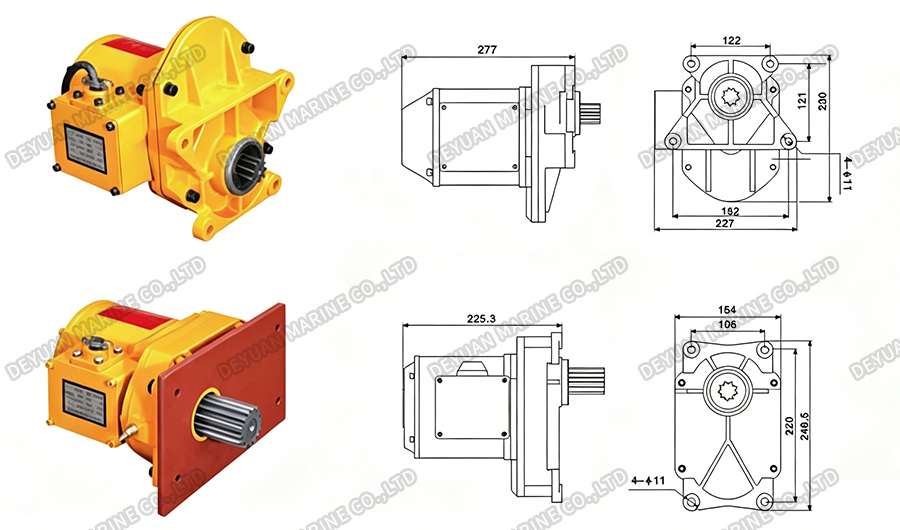

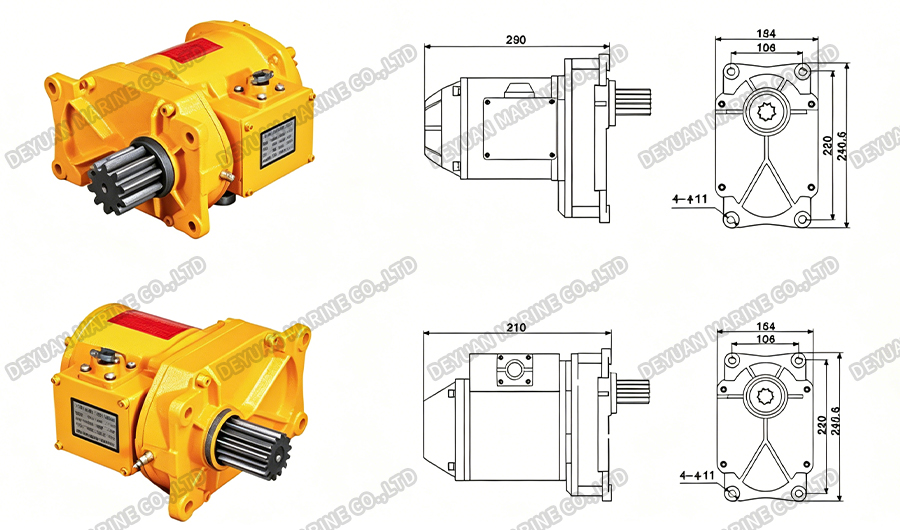

Drawing:
Size Specification:
| Type | DMD-0.4 | DMD-0.75 | DMD-1.5 |
| Power(kW) | 0.4 | 0.75 | 1.5 |
| Number of Poles(P) | 4 | 4 | 4 |
| Frequency(Hz) | 50 | 50 | 50 |
| Voltage(V) | 220-440 | 220-440 | 220-440 |
| Reduction Ratio(i) | 5.1:1 | 5.1:1 | 5.1:1 |
| 10.1:1 | 10.1:1 | 10.1:1 | |
| Rotation Speed(r/min) | 145/174 | 145/174 | 145/174 |
| 290/348 | 290/348 | 290/348 | |
| Output Gear Module(M) | 3 | 3 | 3 |
| 3.5 | 3.5 | 3.5 | |
| 4 | 4 | 4 | |
| Output Gear Number(z) | 10、13、16 | 10、13、16 | 10、13、16 |
| 13 | 13 | 13 | |
| 10 | 10 | 10 | |
| Output Gear Length(mm) | 80 | 80 | 80 |
| 80 | 80 | 80 | |
| 80、55 | 80、55 | 80、55 |
Key features include:
*Integrated three-in-one design – motor, gearbox, and brake in one unit
*Space-saving compact footprint – ideal for low-headroom crane end carriages
*High starting torque – ensures smooth acceleration even under full load
*Fail-safe electromagnetic brake – spring-applied, electrically released for safe holding
*Low noise and high efficiency – helical gearing for quiet, energy-saving operation
*Easy installation and alignment – no coupling required, direct wheel drive
*Durable construction – cast iron housing, sealed bearings, and corrosion-resistant coating
