Product Description

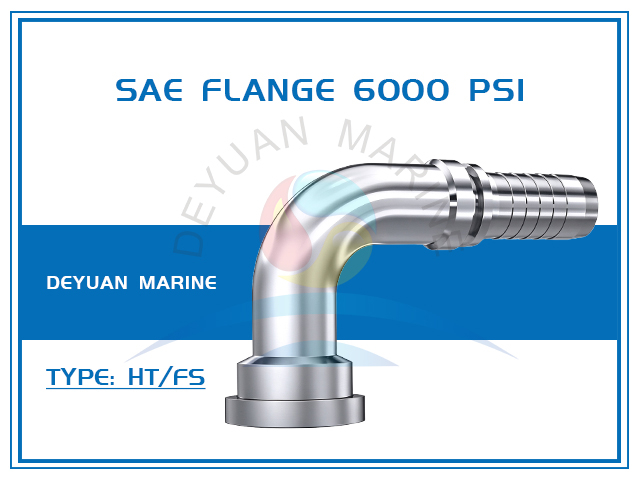

SAE Flange 6000Psi
Product Introduction:
The HT/FS Series represents the heavy-duty tier of marine hydraulic connections, specifically engineered to meet the rigorous SAE J518 Code 62 (6000 PSI) standard. Designed for high-pressure vessel piping systems, this series guarantees superior performance, structural integrity, and zero-leak reliability in the most demanding marine environments.
To cover complex routing requirements in modern engine rooms, the series offers three standard configurations:

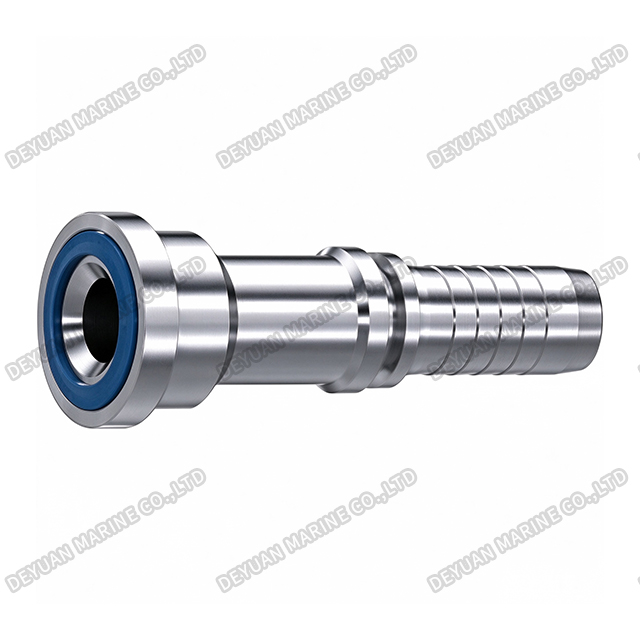

*HT/FS1 (Standard Straight): For direct, high-pressure in-line connections.

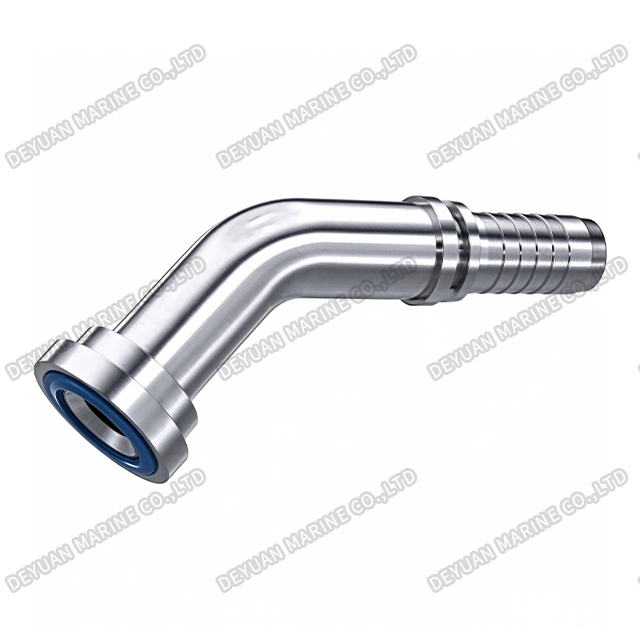

*HT/FS4 (45° Elbow): For optimized fluid flow around moderate bends.

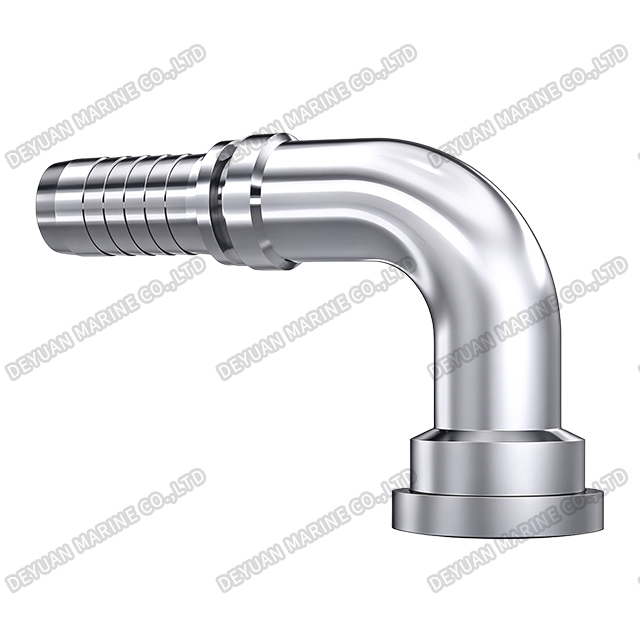

*HT/FS9 (90° Elbow): For right-angle connections in compact spaces.
The system supports flange sizes from 1/2" to 2" and accommodates hose inner diameters (I.D.) ranging from 12.5 mm to 51 mm. Each fitting is precision-machined with specific dimensions (C, B, H) to perfectly match the corresponding HT/FS Split Flange Clamps (HT/FS-08 to HT/FS-32), ensuring a complete and secure high-pressure assembly.

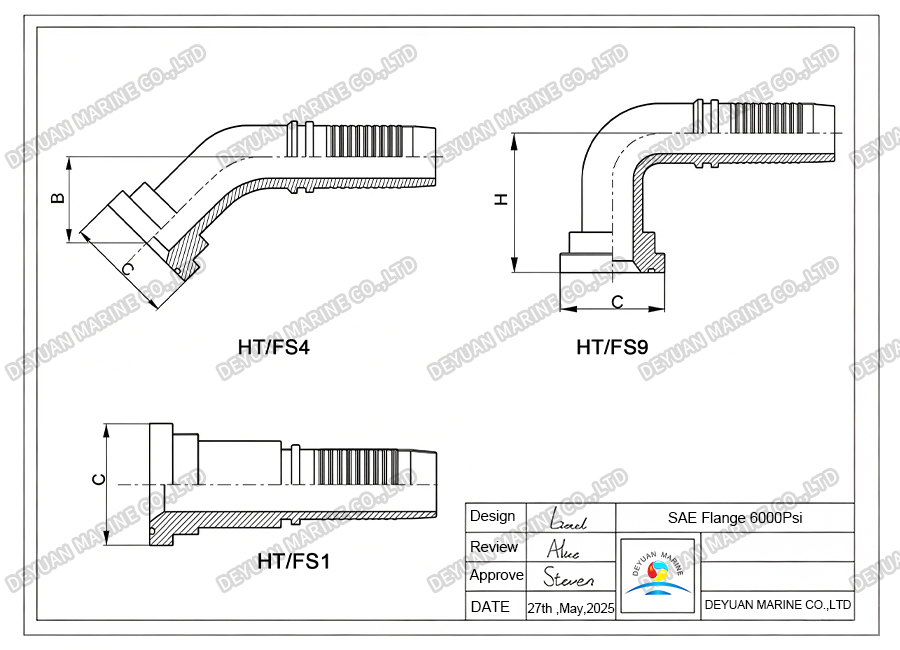

Drawing:
Technical Specifications:
| Part No. Straight | Model | Flange Size | Hose I.D | Dimensions | |||
| 45° | 90° | C | B | H | |||
| HT/FS1-08-12 | HT/FS4- | HT/FS9- | 1/2" | 12.5 | 31.7 | 24 | 48 |
| HT/FS1-12-19 | HT/FS4- | HT/FS9- | 3/4" | 19 | 41.3 | 32 | 66 |
| HT/FS1-16-25 | HT/FS4- | HT/FS9- | 1" | 25 | 47.6 | 35 | 74.5 |
| HT/FS1-20-32 | HT/FS4- | HT/FS9- | 11/4" | 32 | 54 | 41.5 | 89.5 |
| HT/FS1-24-38 | HT/FS4- | HT/FS9- | 11/2" | 38 | 63.5 | 49 | 108 |
| HT/FS1-32-51 | HT/FS4- | HT/FS9- | 2" | 51 | 79.4 | 62 | 136.5 |

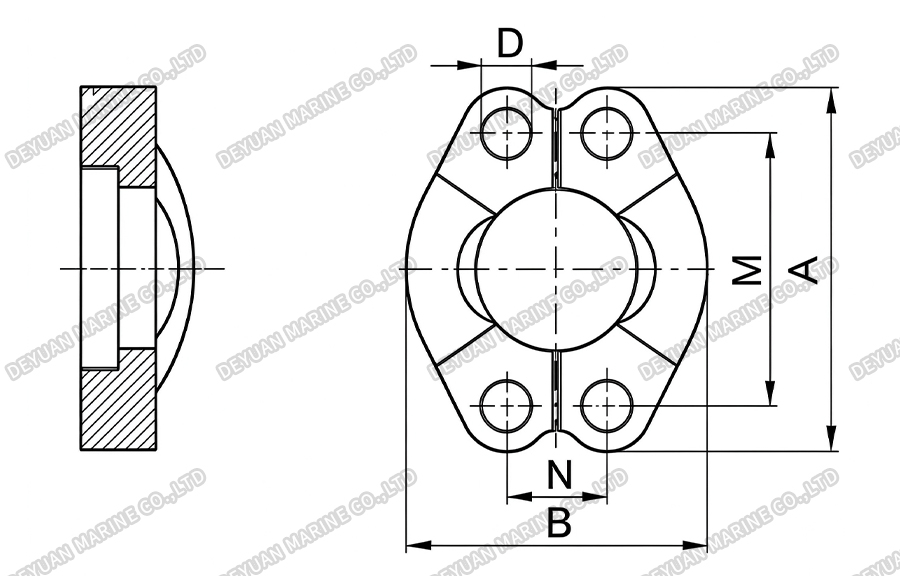

Split Flange Clamps 6000 Psi：
| Part No. | Flange Size | Dimensions | ||||
| A | B | M | N | D | ||
| HT/FS-08 | 1/2" | 56 | 47.2 | 40.5 | 18.2 | 9 |
| HT/FS-12 | 3/4" | 71 | 60 | 50.8 | 23.8 | 11 |
| HT/FS-16 | 1" | 81 | 69.9 | 57.2 | 27.8 | 13.5 |
| HT/FS-20 | 11/4" | 95 | 77.2 | 66.7 | 31.8 | 15 |
| HT/FS-24 | 11/2" | 113 | 95 | 79.4 | 36.5 | 17 |
| HT/FS-32 | 2" | 133 | 113.8 | 96.8 | 44.5 | 21 |
Product Features :
1.Ultra-High Pressure Rating: Rated for up to 6000 PSI (approx. 420 bar), making it ideal for high-pressure hydraulic systems where standard 3000 PSI fittings would fail.
2.Heavy-Duty Construction: Compared to Code 61 (3000 PSI), these fittings feature a thicker flange head, larger bolt holes, and a heavier overall profile to withstand extreme pressure spikes and heavy mechanical stress.
3.Strict Standard Compliance: Manufactured strictly in accordance with SAE J518 Code 62 and ISO 6162-2 standards, ensuring global interchangeability and safety.
4.Split Flange Clamp Design: The two-piece split flange clamps (HT/FS series) allow for quick installation and easy maintenance. O-rings can be serviced without dismantling the entire hydraulic piping system.
5.Superior Vibration & Corrosion Resistance: Engineered specifically for shipboard environments, these fittings resist constant engine vibration, saltwater corrosion, and temperature fluctuations.
6.Leak-Proof Sealing: Utilizes a precision O-ring face seal compressed by heavy-duty clamps against a flat port surface, guaranteeing a zero-leak seal even under extreme pressure pulses.
7.Versatile Configurations: Available in straight, 45°, and 90° elbows with comprehensive dimensional data (A, B, C, M, N, D), providing flexibility for tight engine room layouts.
Product Applications:
1.Marine Hydraulic Systems:Widely used for high-pressure piping connections in steering gear, windlass, winches, and other deck machinery.
2.Marine Power & Propulsion Systems:Suitable for hydraulic oil and cooling lines of main engines, auxiliary engines, and gearboxes.
3.Fuel & Lubrication Systems:Used in marine fuel delivery and lubrication lines to ensure zero leakage under high pressure.
4.Deck & Bilge Piping:Ideal for bilge and deck piping layouts in space-constrained and high-vibration areas.
5.Marine Engineering & Offshore Platforms:Extensively used in hydraulic transmission systems of offshore drilling platforms, engineering vessels, and port machinery.
