Product Description

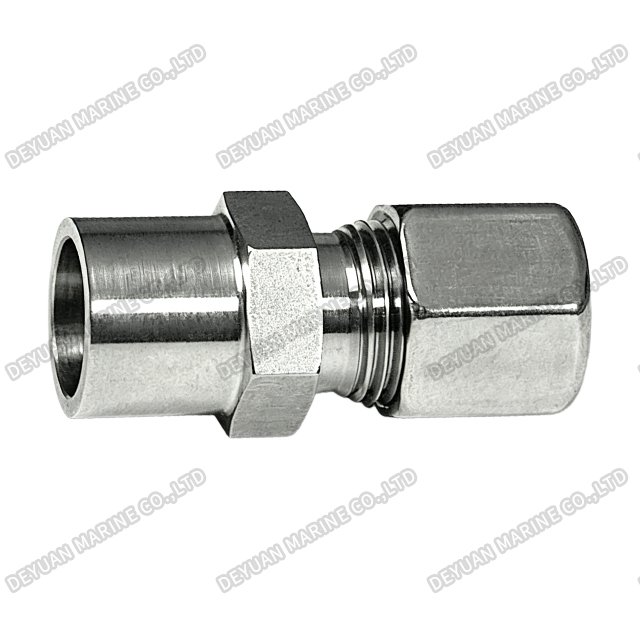

Marine Butt-Welding Straight Adapter
Product Introduction:
The Butt-Welding Straight Adapter (HT/TIW Series) is a heavy-duty hydraulic and marine piping component engineered for high-integrity, leak-proof connections in extreme pressure environments. Unlike standard threaded or ferrule fittings, this adapter utilizes a permanent butt-welding connection (featuring a welding stud and welding seam) on one end, ensuring maximum structural strength and eliminating the risk of loosening under severe vibration or thermal cycling.
The assembly also incorporates a precision-machined nut and an O-ring, providing a reliable, pressure-tight seal on the connecting end. Designed to bridge tubes with varying outer diameters or to connect a welded tube to a threaded port, this straight adapter guarantees unrestricted, linear fluid flow without directional changes.
Available in both L Series and S Series, it accommodates tube outer diameters ranging from 8mm to 50mm. It is specifically engineered to withstand working pressures from 160 bar up to 400 bar, making it an ideal choice for shipbuilding, offshore engineering, and heavy industrial hydraulic systems. The adapter is available in Carbon Steel, Stainless Steel, and Brass to suit diverse environmental and fluid compatibility requirements.

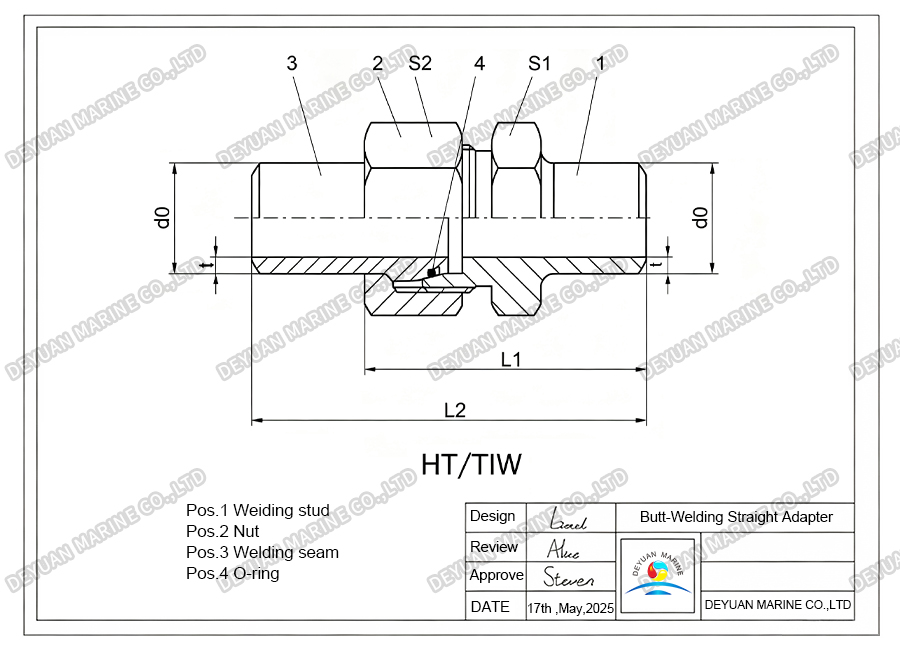

Drawing:
Technical Specifications:
| Series | Tube OD | Ordering Code | da | L1 | L2 | S1 | S2 | Pressure (PN) |
| L | 15 18 | HT/TIW15×tL* HT/TIW18×tL* | 15 18 | 40.0 42.0 | 58.5 61.0 | 22 27 | 27 32 | 315 315 |
| 22 28 | HT/TIW22×tL* HT/TIW28×tL* | 22 28 | 46.0 49.5 | 65.0 72.5 | 32 41 | 36 41 | 160 160 | |
| 35 42 | HT/TIW35×tL* HT/TIW42×tL* | 35 42 | 56.5 61.5 | 82.5 88.0 | 46 55 | 50 60 | 160 160 | |
| S | 08 10 | HT/TIW08×tS* HT/TIW10×tS* | 08 10 | 39.0 40.0 | 53.0 57.0 | 17 19 | 19 22 | 400 400 |
| 12 16 | HT/TIW12×tS* HT/TIW16×tS* | 12 16 | 45.5 52.0 | 62.0 73.0 | 22 27 | 24 30 | 400 400 | |
| 20 25 | HT/TIW20×tS* HT/TIW25×tS* | 20 25 | 56.0 64.0 | 79.5 92.0 | 32 41 | 36 46 | 400 315 | |
| 30 38 50 | HT/TIW30×tS* HT/TIW38×tS* HT/TIW50×tS* | 30 38 50 | 67.0 76.0 88.0 | 98.0 108.0 117.0 | 46 55 70 | 50 60 80 | 315 250 250 |
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
Extrusion Type Pipe Joint Nominal Pressure Levels:
Key Features & Benefits:
1.Superior Joint Integrity: The butt-welding design provides a permanent, high-strength connection that outperforms mechanical fittings in high-pressure and high-vibration applications.
2.Leak-Proof Sealing: Integrated O-ring ensures a tight, reliable seal against leakage.
3.Versatile Sizing: Wide range of metric tube ODs accommodates various pipe schedules and wall thicknesses (thickness *t* selected according to A3/A4 pages).
4.High-Pressure Capability: Handles demanding hydraulic circuits with pressure ratings up to 400 bar.
Product Applications:
*Marine & Offshore Engineering:Widely used in ship hydraulic systems, deck machinery, ballast water systems, and offshore platforms.
*Heavy-Duty Industrial Hydraulics:Ideal for high-pressure hydraulic circuits in construction machinery (excavators, cranes), metallurgical equipment, and hydraulic presses.
*Petrochemical & Chemical Processing: Used for transporting high-pressure fluids, corrosive media, and hazardous gases. The availability of stainless steel (P) and brass (T) materials makes it suitable for various chemical environments.
