HT/B Metric Standpipes Straight
Product Introduction:

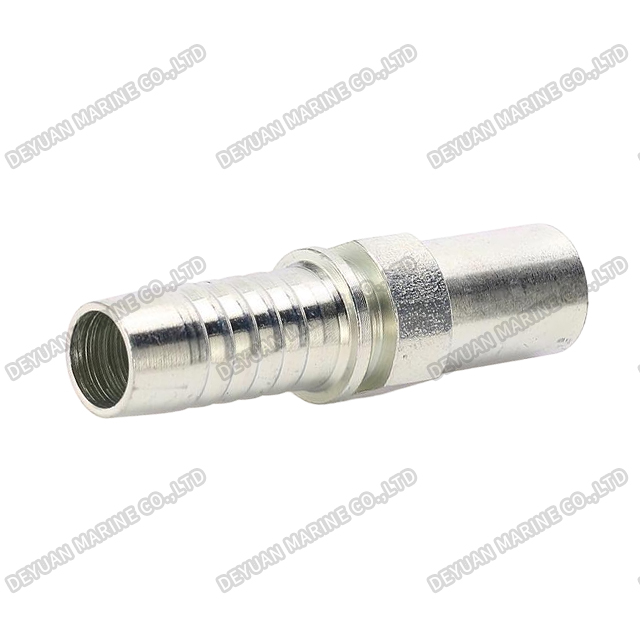

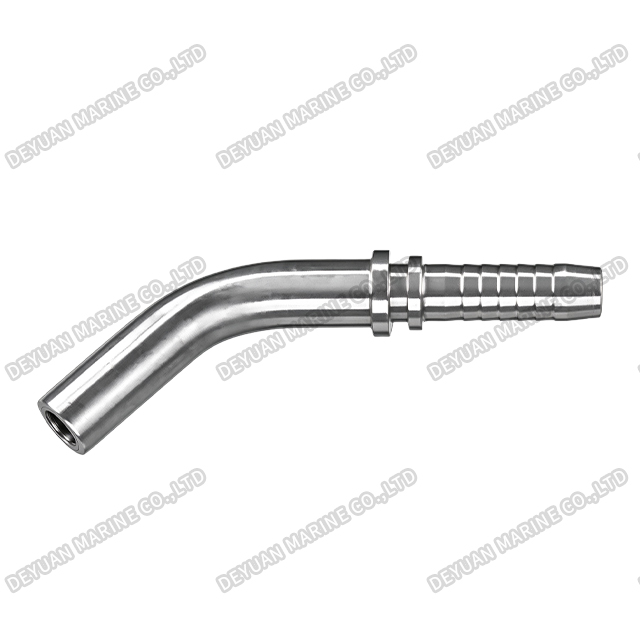

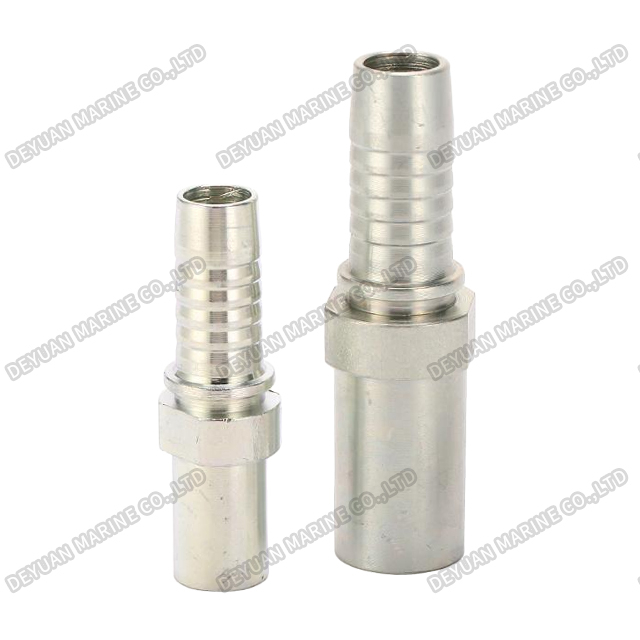

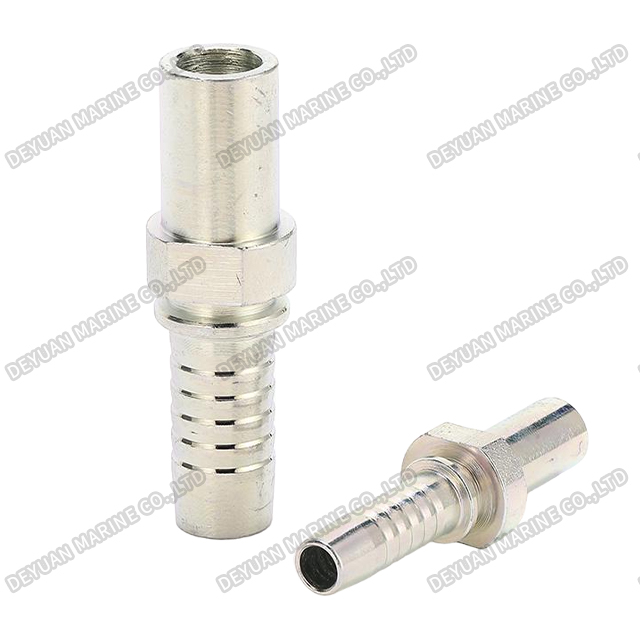

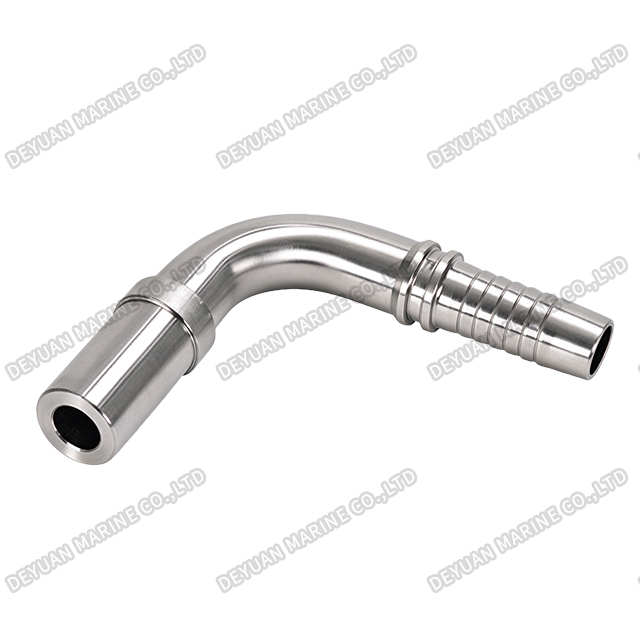

Engineered for robust performance in demanding marine environments, our Marine HT/B Metric Standpipes are high-quality hydraulic fittings designed for secure hose-to-tube connections. This versatile series includes three distinct configurations to accommodate various routing needs: Standard Straight (HT/B1), 45° Elbow (HT/B4), and 90° Elbow (HT/B9).
These fittings are precision-machined to accommodate metric tube diameters ranging from 6mm to 38mm and hose inner diameters from 6mm to 32mm. Whether used in shipboard hydraulic systems, fuel lines, or cooling circuits, the HT/B series ensures leak-proof fluid transfer, excellent vibration resistance, and easy installation. Manufactured from high-grade carbon steel or stainless steel, they are built to withstand the corrosive effects of saltwater and harsh marine atmospheres.

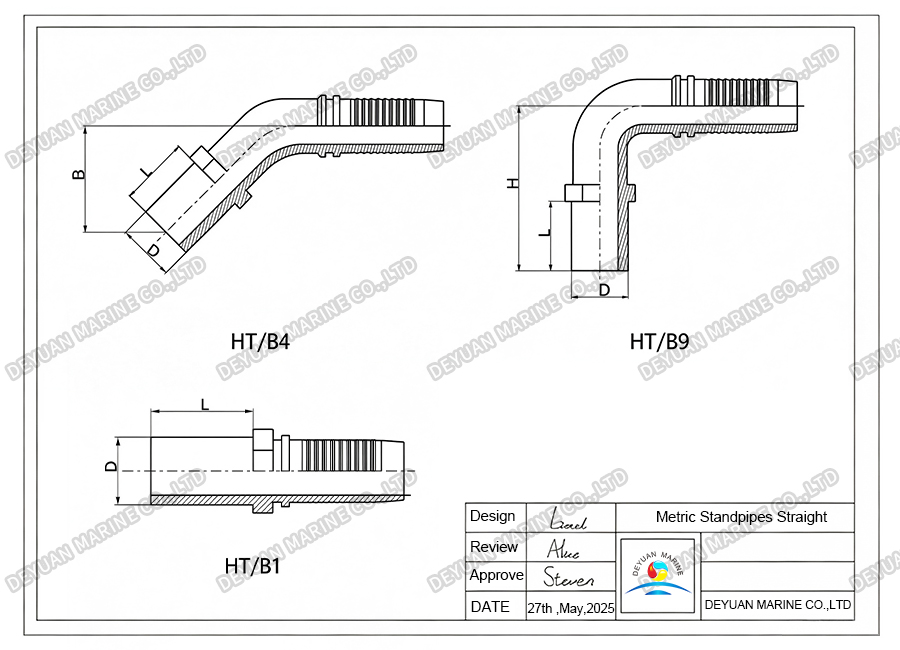

Drawing:
Technical Specifications:
| Part No. Straight | Model | Tube D | Hose I.D | Dimensions | |||
| 45° | 90° | L | B | H | |||
| HT/B1-06-06 | HT/B4- | HT/B9- | 06 | 06 | 22 | 28.5 | 28.5 |
| HT/B1-08-06 | HT/B4- | HT/B9- | 08 | 06 | 24 | 29 | 29 |
| HT/B1-10-06 | HT/B4- | HT/B9- | 10 | 06 | 26 | 32 | 32 |
| HT/B1-10-08 | HT/B4- | HT/B9- | 10 | 08 | 23 | 31.5 | 31.5 |
| HT/B1-12-08 | HT/B4- | HT/B9- | 12 | 08 | 26 | 36 | 36 |
| HT/B1-12-10 | HT/B4- | HT/B9- | 12 | 10 | 23 | 34.5 | 34.5 |
| HT/B1-14-10 | HT/B4- | HT/B9- | 14 | 10 | 29 | 37.3 | 37.3 |
| HT/B1-15-12 | HT/B4- | HT/B9- | 15 | 12.5 | 25 | 35.7 | 35.7 |
| HT/B1-16-12 | HT/B4- | HT/B9- | 16 | 12.5 | 30 | 41.6 | 41.6 |
| HT/B1-18-16 | HT/B4- | HT/B9- | 18 | 16 | 28 | 40 | 40 |
| HT/B1-20-16 | HT/B4- | HT/B9- | 20 | 16 | 36 | 48 | 48 |
| HT/B1-22-19 | HT/B4- | HT/B9- | 22 | 19 | 28 | 45 | 45 |
| HT/B1-25-19 | HT/B4- | HT/B9- | 25 | 19 | 40 | 54.5 | 54.5 |
| HT/B1-28-25 | HT/B4- | HT/B9- | 28 | 25 | 30 | 49 | 49 |
| HT/B1-30-25 | HT/B4- | HT/B9- | 30 | 25 | 44 | 59.5 | 59.5 |
| HT/B1-35-32 | HT/B4- | HT/B9- | 35 | 32 | 36 | 57 | 57 |
| HT/B1-38-32 | HT/B4- | HT/B9- | 38 | 32 | 50 | 68 | 68 |
Key Features & Specifications:
1.Three Configurations: Available in Straight, 45°, and 90° elbow types for flexible piping layouts.
2.Metric Sizing: Designed for tube O.D. from 06mm to 38mm and hose I.D. from 06mm to 32mm.
3.Robust Connection: Ferrule type design ensures a tight, high-pressure seal between the standpipe and the hose.
4.Dimensional Precision: Specific dimensions (L for straight, B for 45°, H for 90°) ensure perfect fitment in tight marine machinery spaces.
5.Example Part Numbers: HT/B1-06-06 (Straight), HT/B4-06-06 (45°), HT/B9-06-06 (90°).
Product Applications:
*Marine Hydraulic Systems: For hydraulic lines in steering gears, windlasses, and winches.
*Engine Piping: For main engine fuel, lube oil, and cooling water systems.
*Deck & Auxiliary Equipment: For hose-to-tube connections in deck machinery and auxiliary equipment.
*Compact Space Connection: Straight design fits tight engine rooms, offering easy installation, leak-proof, and vibration resistance.
