Product Description

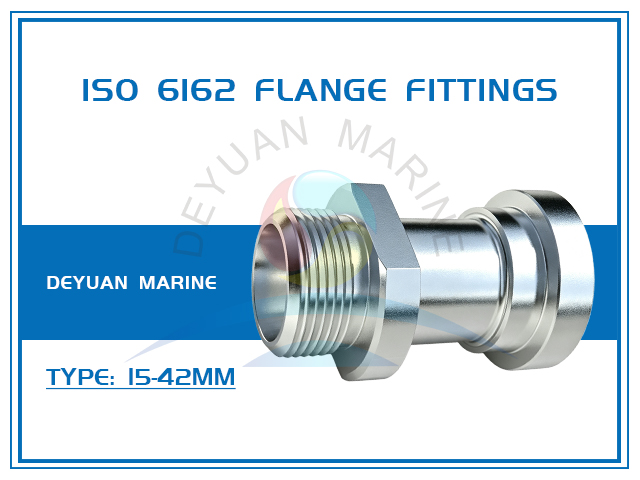

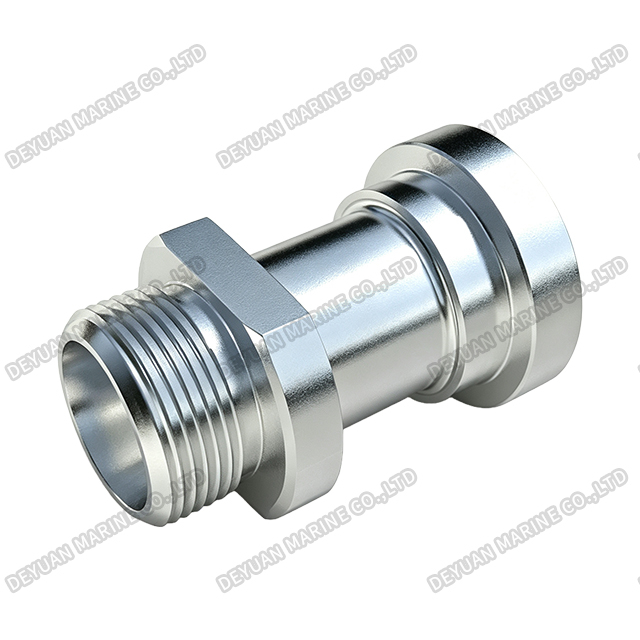

ISO 6162 Flange Fittings
Product Introduction:
Engineered for the rigorous demands of shipbuilding and offshore engineering, our Marine ISO 6162 Flange Fittings (HT/CFL Series) are high-performance hydraulic connectors designed to bridge the gap between flanged ports and threaded/tube connections. These fittings are essential for high-pressure marine hydraulic systems, offering superior leak-proof performance, vibration resistance, and easy maintenance in harsh marine environments.
The HT/CFL series features a robust construction combining a flange connection on one end and a threaded end with a tube connection on the other. They are manufactured in compliance with the ISO 6162 standard (equivalent to SAE J518), ensuring global interchangeability and compatibility with standard marine hydraulic flanges.

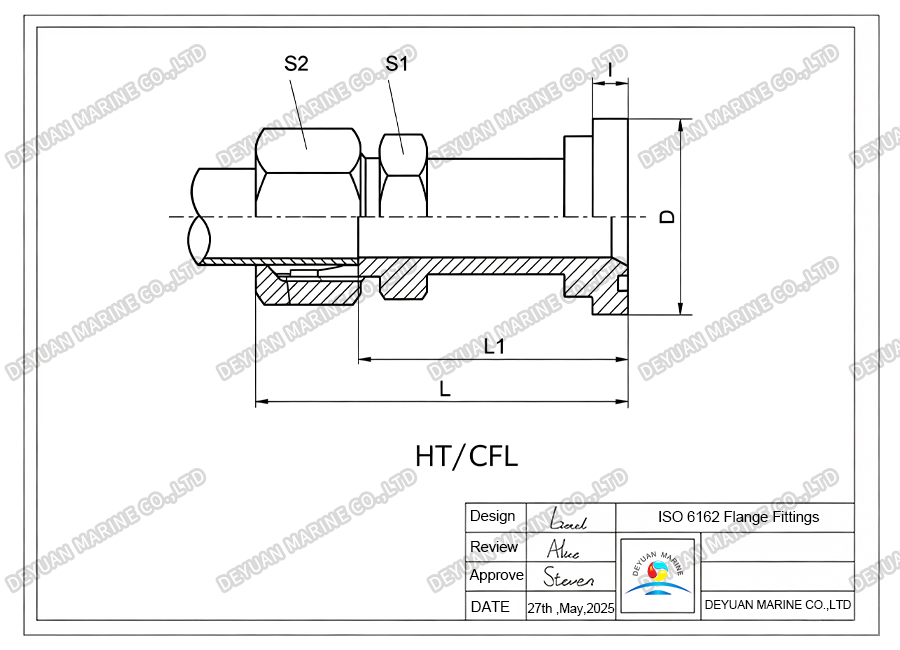

Drawing:
Technical Specifications:
| Part No. | Thread | Flange size | Tube O.D. | Dimensions | MPa | |||||
| D | I | L1 | L | S1 | S2 | |||||
| HT/CFL-22-08 HT/CFL-26-12 | M22×1.5 M26×1.5 | 1/2 " 3/4" | 15 18 | 30.2 38.1 | 6.7 6.73 | 41 45.5 | 56 62 | 24 30 | 27 32 | 31.5L |
| HT/CFL-30-12 HT/CFL-36-16 | M30×2 M36×2 | 3/4" 1" | 22 28 | 38.1 44.4 | 6.7 8 | 45.5 46.5 | 62 63 | 32 38 | 36 41 | 16L |
| HT/CFL-45-20 HT/CFL-52-24 | M45×2 M52×2 | 1.1/4" 1.1/2" | 35 42 | 50.8 60.3 | 8 8 | 47.5 53 | 69 76 | 41 46 | 50 60 | |
| HT/CFL-24-08 HT/CFL-30-12 | M24×1.5 M30×2 | 1/2" 3/4" | 16 20 | 30.2 38.1 | 6.7 6.7 | 41.5 46.5 | 60 68 | 24 30 | 30 36 | 35S |
| HT/CFL-36-12 HT/CFL-42-16 | M36×2 M42×2 | 3/4" 1" | 25 30 | 38.1 44.4 | 6.73 8 | 45 49.5 | 69 76 | 30 36 | 46 50 | |
| HT/CFL-36-20 HT/CFL-42-20 | M36×2 M42×2 | 1.1/4" 1.1/4" | 2530 | 50.8 50.8 | 88 | 48 48.5 | 72 75 | 41 41 | 46 50 | 28S |
| HT/CFL-52-20 | M52×2 | 1.1/4" | 38 | 50.8 | 8 | 50 | 81 | 46 | 60 | |
| HT/CFL-52-24 | M52×2 | 1.1/2" | 38 | 60.3 | 8 | 54 | 85 | 46 | 60 | 21S |
| HT/CFL-24-08 HT/CFL-24-12 | M24×1.5 M24×1.5 | 1/2" 3/4" | 16 16 | 31.7 41.3 | 7.8 8.8 | 44.5 50.5 | 63 69 | 24 30 | 30 30 | 40S |
| HT/CFL-30-12 HT/CFL-36-12 | M30×2 M36×2 | 3/4" 3/4" | 20 25 | 41.3 41.3 | 8.8 8.8 | 50.5 51 | 72 75 | 30 30 | 36 46 | |
| HT/CFL-36-16 HT/CFL-42-16 | M36×2 M42×2 | 1" 1" | 25 30 | 47.6 47.6 | 9.5 9.5 | 60 60.5 | 81 87 | 36 36 | 46 50 | |
| HT/CFL-42-20 | M42×2 | 1.1/4" | 30 | 54 | 10.3 | 65.5 | 92 | 41 | 50 | |
| HT/CFL-52-20 | M52×2 | 1.1/4" | 38 | 54 | 10.3 | 67 | 98 | 46 | 60 | 31.5S |
| HT/CFL-52-24 | M52×2 | 1.1/2" | 38 | 63.5 | 12.6 | 73 | 104 | 46 | 60 | |
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
Extrusion Type Pipe Joint Nominal Pressure Levels:
Product Applications:
1.Marine Hydraulic Systems: For high-pressure lines in steering gears, windlasses, and winches.
2.Deck & Offshore Machinery: For fluid transfer in cranes, offshore platforms, and dock equipment.
3.Engine Piping Systems: For main engine fuel, lube oil, and cooling water systems.
4.Flange Adapter & Leak-proof: High-pressure, vibration-resistant connection between ISO 6162 flange and threaded/tube ends.
