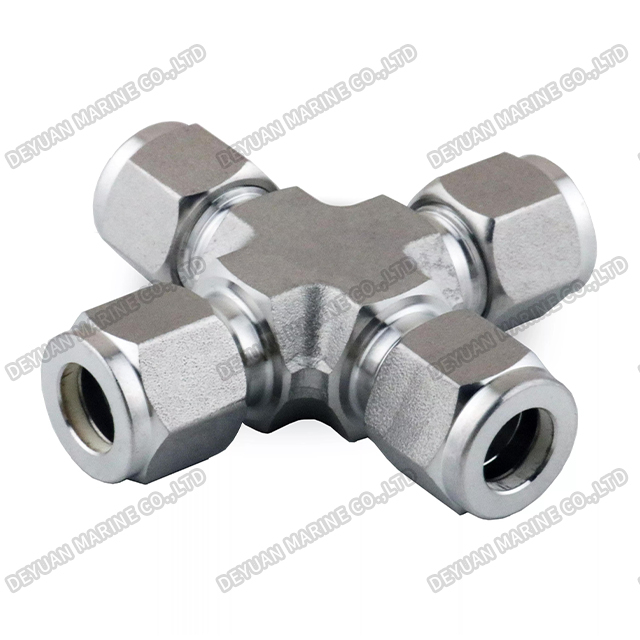

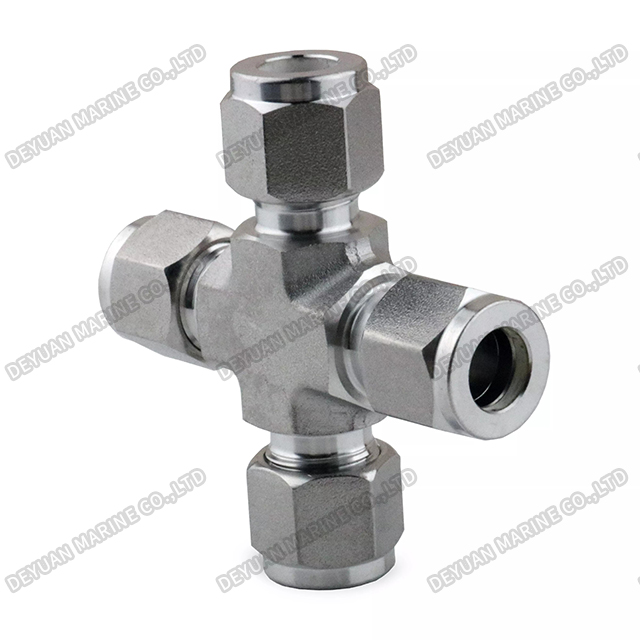

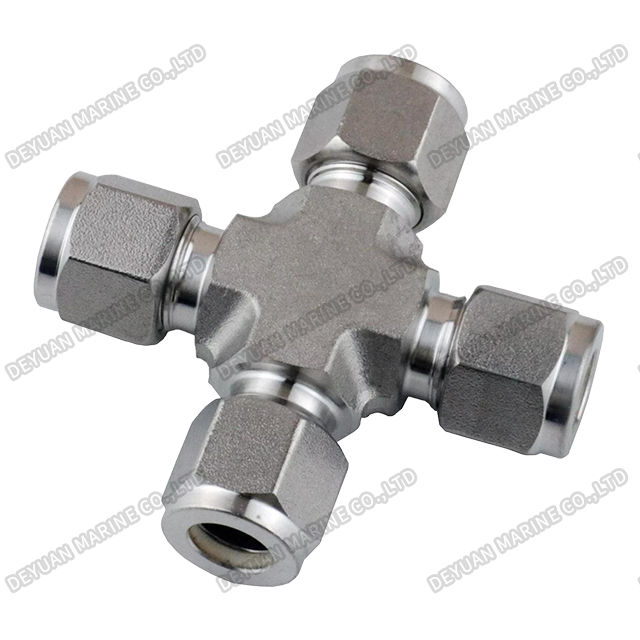

Ferrule-Type Cross
Product Introduction:
Our Bite-Type Cross Fitting (also known as ferrule-type cross or compression cross) is a high‑performance four‑way pipe connector designed for reliable, leak‑free connections in hydraulic and pneumatic systems. Manufactured to stringent quality standards, this fitting enables quick and secure joining of four tubes at right angles, making it ideal for complex manifold layouts and space‑constrained installations.
The bite‑type (or ferrule) principle ensures a strong mechanical grip on the tube without the need for welding, soldering, or threading. The fitting typically incorporates a front ferrule for primary sealing and a rear ferrule for robust tube anchorage – a dual‑ferrule design that provides exceptional resistance to vibration, pressure surges, and temperature fluctuations. Installation is straightforward: simply insert the tube, tighten the nut, and the ferrules bite into the tube wall, creating a permanent, reusable joint that can be disassembled and reassembled with minimal effort.

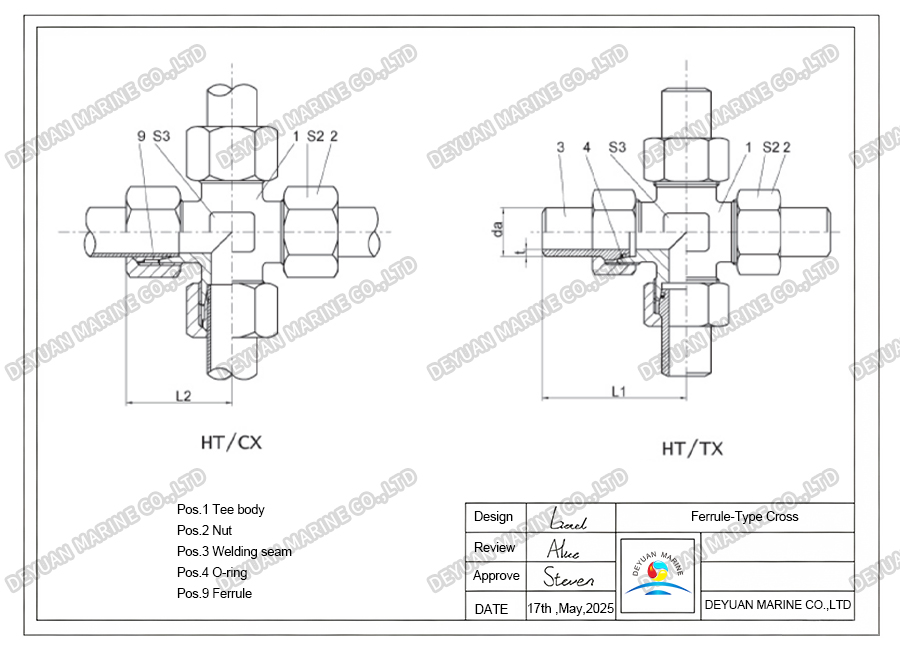

Drawing:
Technical Specifications:
| Series | Tube OD | Ordering Code | L1 | L2 | S2 | S3 | Pressure (PN) | |
| HT/CX dax t | HT/TX | |||||||
| L | 06 08 | HT/CX06×tL* HT/CX08×tL* | HT/TX06L* HT/TX08L* | 41.5 43.5 | 27 29 | 14 17 | 12 12 | 315 315 |
| 10 12 | HT/CX10×tL* HT/CX12×tL* | HT/TX10L* HT/TX12L* | 48.0 50.0 | 30 32 | 19 22 | 14 17 | 315 315 | |
| 15 18 | HT/CX15×tL* HT/CX18×tL* | HT/TX15L* HT/TX18L* | 56.0 62.5 | 36 40 | 27 32 | 19 24 | 315 315 | |
| 22 28 | HT/CX22×tL* HT/CX28×tL* | HT/TX22L* HT/TX28L* | 66.0 70.0 | 44 47 | 36 41 | 27 36 | 160 160 | |
| 35 42 | HT/CX35×tL* HT/CX42×tL* | HT/TX35L* HT/TX42L* | 83.0 91.0 | 56 63 | 50 60 | 41 50 | 160 160 | |
| S | 06 08 | HT/CX06×tS* HT/CX08×tS* | HT/TX06S* HT/TX08S* | 43.0 45.5 | 31 32 | 17 19 | 12 14 | 630 630 |
| 10 12 | HT/CX10×tS* HT/CX12×tS* | HT/TX10S* HT/TX12S* | 51.4 55.0 | 34 38 | 22 24 | 19 19 | 630 630 | |
| 14 16 | HT/CX14×tS* HT/CX16×tS* | HT/TX14S* HT/TX16S* | 58.5 65.0 | 40 43 | 27 30 | 19 27 | 630 400 | |
| 20 25 | HT/CX20×tS* HT/CX25×tS* | HT/TX20S* HT/TX25S* | 72.0 85.0 | 48 54 | 36 46 | 32 41 | 400 315 | |
| 30 38 | HT/CX30×tS* HT/CX38×tS* | HT/TX30S* HT/TX38S* | 92.0 106.0 | 62 72 | 50 60 | 46 55 | 315 315 | |
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
Extrusion Type Pipe Joint Nominal Pressure Levels:
Typical Applications Include:
*Industrial hydraulic power units.
*Mobile machinery (excavators, loaders).
*Process instrumentation and chemical dosing systems.
*Marine and offshore equipment.
*Pneumatic control panels.
Our bite‑type cross fittings comply with international dimensional standards and are 100% pressure‑tested to ensure safety and longevity. With a wide range of sizes, materials, and pressure ratings, they offer a versatile solution for engineers seeking a compact, durable, and maintenance‑friendly connector.
