Product Description

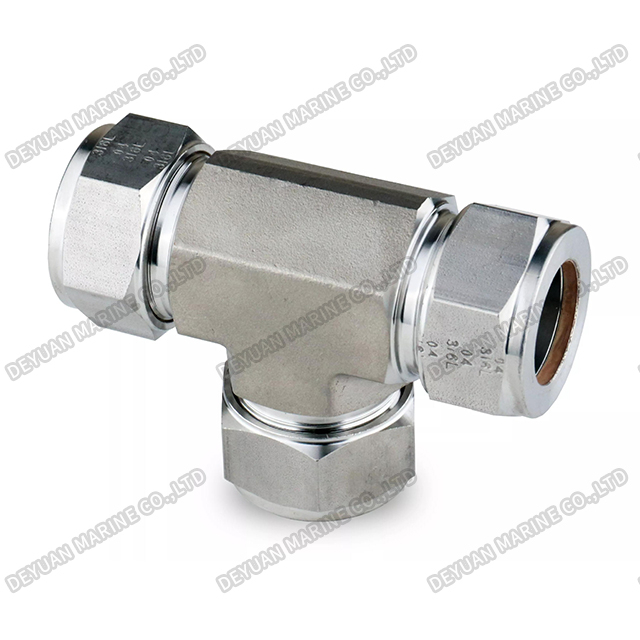

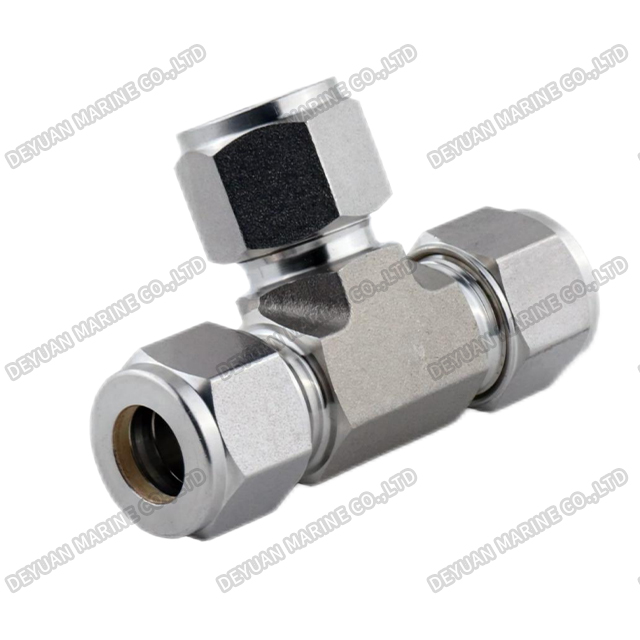

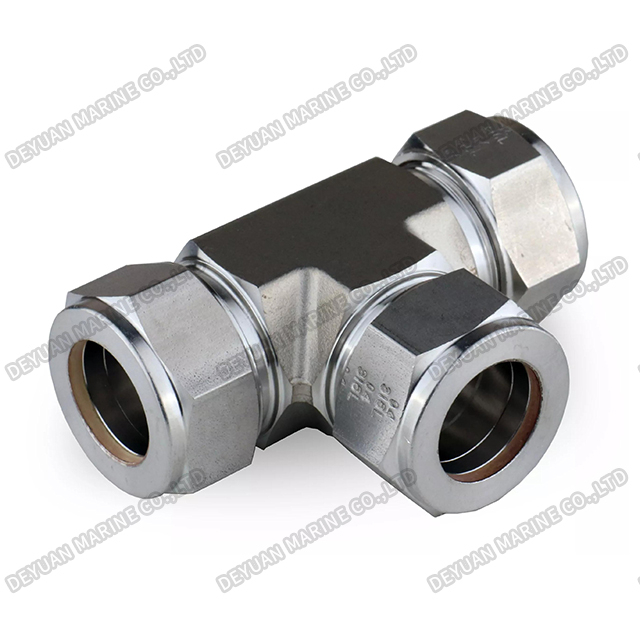

Ferrule Tee Fitting
Product Introduction:
Our HT Series Ferrule Tee Fittings are precision-engineered for reliable connections in industrial fluid, hydraulic, and instrumentation systems. Manufactured in both Light (L Series) and Heavy (S Series) configurations, these fittings are available in a wide range of metric tube outer diameters from 06 to 50 mm.
Depending on the application, they are offered in two design variations: HT/CL (featuring a welding seam connection) and HT/TT (featuring an O-ring seal connection). All units are constructed with a durable Tee body, nut, and ferrule components.
These fittings support working pressures of up to 315 bar in the L Series and 630 bar in the S Series. To meet diverse environmental and industrial requirements, they are manufactured in three material options: Carbon Steel (C), Stainless Steel (P), and Brass (T). these tee fittings deliver exceptional leak-tight performance and ease of installation.

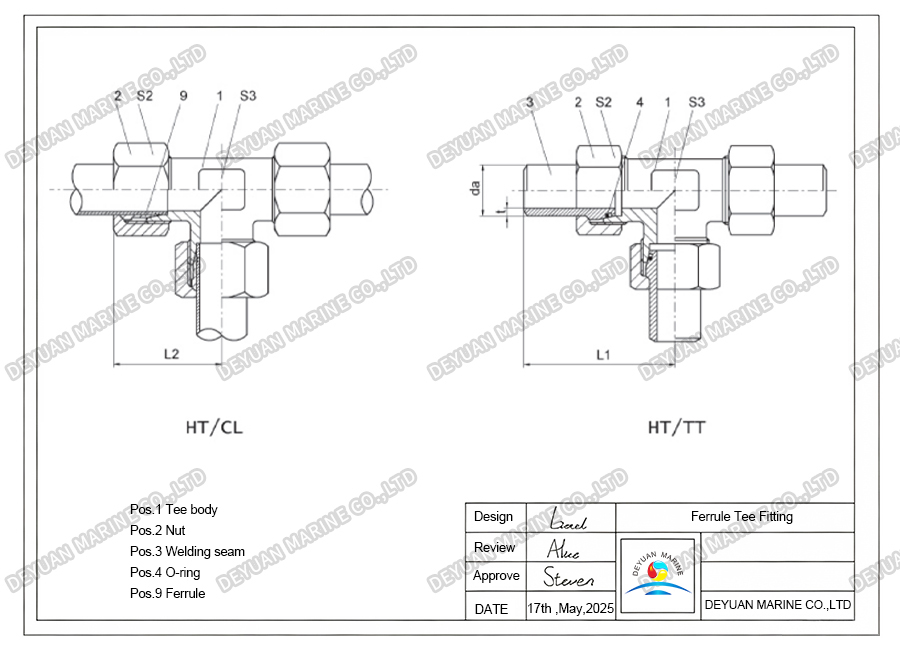

Drawing:
Technical Specifications:
| Series | Tube OD | Ordering Code | L1 | L2 | S2 | S3 | Pressure (PN) | |
| HT/CT dax t | HT/TT | |||||||
| L | 06 08 | HT/CT06×tL* HT/CT08×tL* | HT/TT06L* HT/TT08L* | 41.5 43.5 | 27 29 | 14 17 | 12 14 | 315 315 |
| 10 12 | HT/CT10×tL* HT/CT12×tL* | HT/TT10L* HT/TT12L* | 48.0 50.0 | 30 32 | 19 22 | 17 19 | 315 315 | |
| 15 18 | HT/CT15×tL* HT/CT18×tL* | HT/TT15L* HT/TT18L* | 56.0 62.5 | 36 40 | 27 32 | 19 24 | 315 315 | |
| 22 28 | HT/CT22×tL* HT/CT28×tL* | HT/TT22L* HT/TT28L* | 66.0 70.0 | 44 47 | 36 41 | 27 36 | 160 160 | |
| 35 42 | HT/CT35×tL* HT/CT42×tL* | HT/TT35L* HT/TT42L* | 83.0 91.0 | 56 63 | 50 60 | 41 50 | 160 160 | |
| S | 06 08 | HT/CT06×tS* HT/CT08×tS* | HT/TT06S* HT/TT08S* | 43.0 45.5 | 31 32 | 17 19 | 14 17 | 630 630 |
| 10 12 | HT/CT10×tS* HT/CT12×tS* | HT/TT10S* HT/TT12S* | 51.5 55.0 | 34 38 | 22 24 | 19 19 | 630 630 | |
| 14 16 | HT/CT14×tS* HT/CT16×tS* | HT/TT14S* HT/TT16S* | 58.5 65.0 | 40 43 | 27 30 | 19 24 | 630 400 | |
| 20 25 | HT/CT20×tS* HT/CT25×tS* | HT/TT20S* HT/TT25S* | 72.0 85.0 | 48 54 | 36 46 | 27 36 | 400 400 | |
| 30 38 | HT/CT30×tS* HT/CT38×tS* | HT/TT30S* HT/TT38S* | 92.0 106.0 | 62 72 | 50 60 | 41 50 | 400 315 | |
| 50 | HT/TT50S* | 138.0 | 80 | 70 | 250 | |||
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
