Male Elbow Connecting Union-BSPT

Male Elbow Connecting Union-BSPT

Product Introduction:

he Male Elbow Connecting Union with British System Taper Thread is a high-performance hydraulic and fluid transmission component specifically engineered for marine and industrial piping systems. Designed to provide a reliable 90-degree directional change in tubing layouts, this fitting ensures secure, leak-proof connections under demanding operational conditions. It is available in two primary configurations: the HT/CLR series (ferrule/compression type) and the HT/TLR series (O-ring welding type).

Structural Design & Components:

Based on the provided schematics, the fitting consists of a precision-machined threaded body, a durable nut, and either a ferrule (HT/CLR) or a welding seam with an O-ring (HT/TLR). The HT/CLR model utilizes a ferrule bite-type mechanism for secure tube gripping, while the HT/TLR model is designed for welded tube connections, featuring an O-ring for enhanced sealing. Both designs utilize a British System Taper Thread (BSPT), ensuring excellent sealing properties when mated with corresponding female threads.

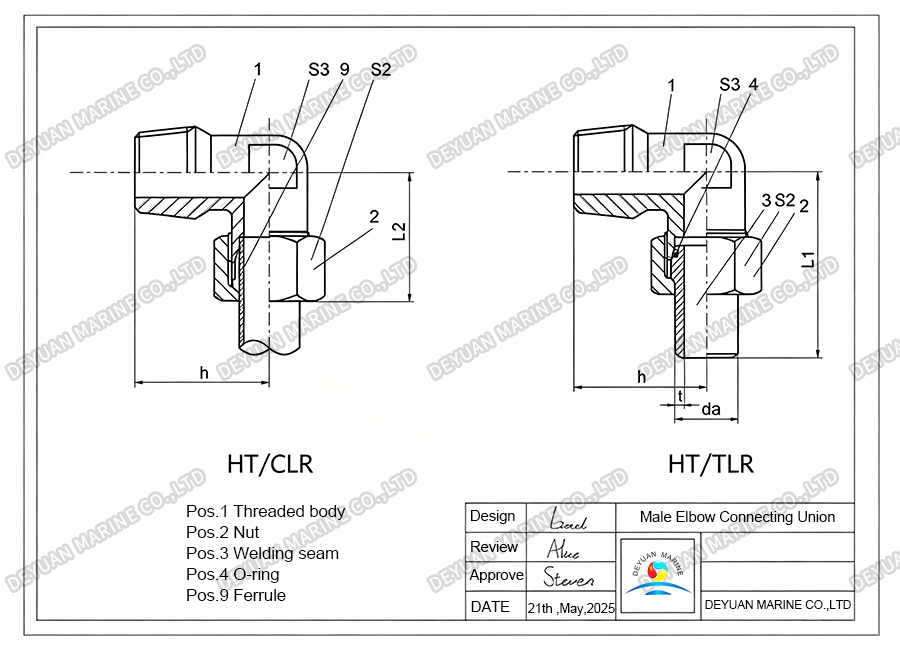

Drawing:

Technical Specifications:

Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.

Extrusion Type Pipe Joint Nominal Pressure Levels:

Product Features:

1. 90-Degree Directional Design：Specifically engineered to facilitate a 90-degree change in tubing direction. This elbow configuration is ideal for optimizing routing in tight, confined marine and hydraulic system spaces.

2. Dual Connection Configurations：Available in two distinct mechanical designs to suit various installation requirements

3. British System Taper Thread (BSPT)：Equipped with male BSPT threads. The tapered thread design ensures a tight, reliable seal under pressure without the need for additional sealing washers.

4.Robust Marine-Grade Construction：Built to resist vibration, thermal expansion, and the harsh corrosive elements of shipboard environments, ensuring long-term reliability and structural integrity.

Applications:

Ideal for shipbuilding, marine engineering, offshore oil and gas platforms, and heavy-duty hydraulic power systems. The robust construction ensures resistance to vibration, thermal expansion, and corrosive marine environments.
