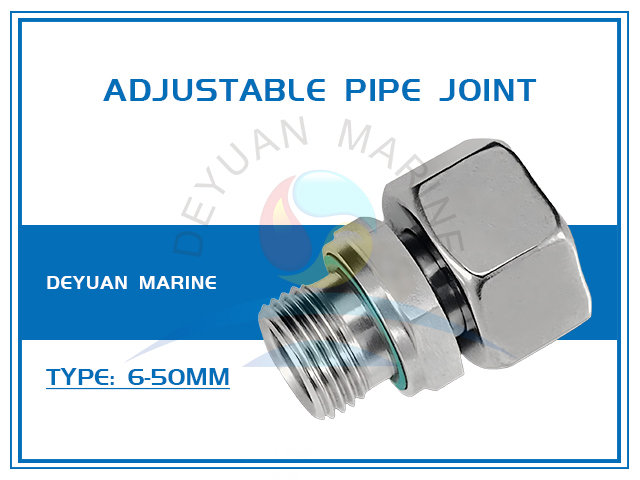

Adjustable Pipe Joint
Product Introduction:
Our Marine Adjustable Pipe Joints are precision-engineered hydraulic components designed specifically for demanding marine and offshore applications. Combining robust construction with flexible adjustability, these fittings ensure leak-proof performance and easy installation in high-pressure shipboard piping systems.
The product line integrates two primary configurations: Adjustable Swivel Elbow Union Fittings (HT/CLKUG & HT/TLKUG) and Adjustable Straight Run Fittings (HT/QIUG).
Key Features & Configurations:

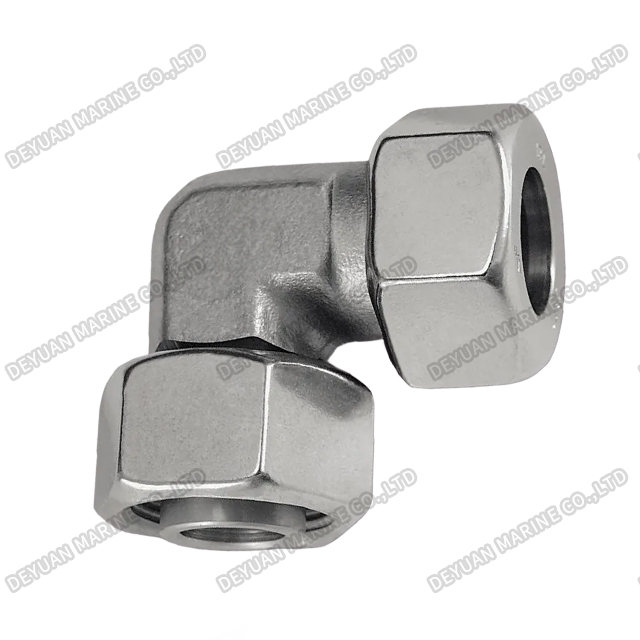

1.Adjustable Swivel Elbow Unions (HT/CLKUG & HT/TLKUG):
These 90-degree elbow fittings feature a swivel nut design that allows for easy alignment and adjustment of the pipe run without compromising the seal. They are available in two connection types:
*HT/CLKUG: Ferrule (card sleeve) connection for metric system threads.
*HT/TLKUG: Welding seam connection for permanent, high-integrity joints.
Note: The "L" and "S" designations in the ordering code indicate Light and Heavy series, accommodating tube outer diameters ranging from 6mm to 50mm.

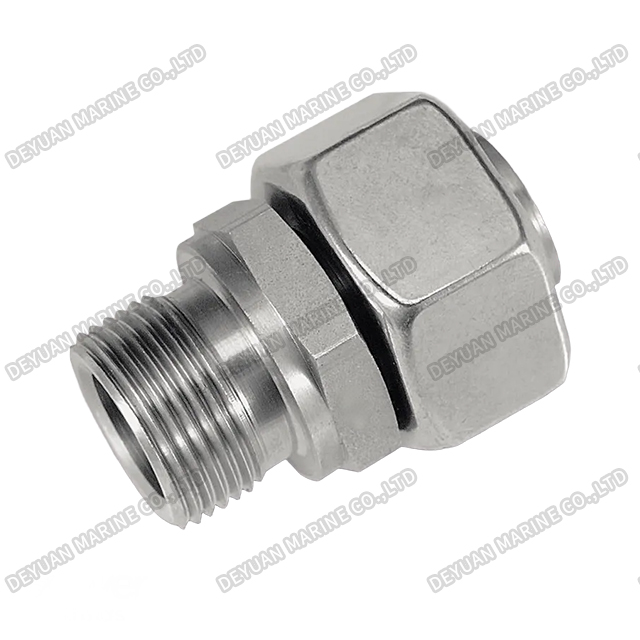

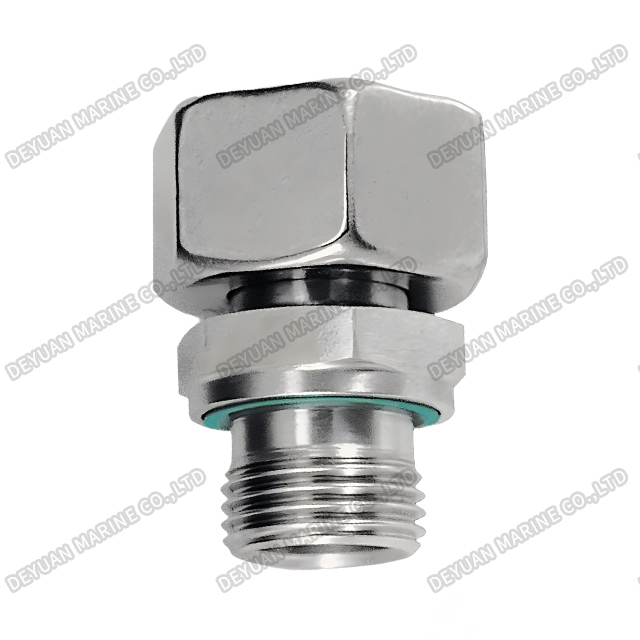

2.Adjustable Straight Run Fittings (HT/QIUG):
Designed with British system threads (BSP/G-thread), these straight fittings utilize a specialized U-ring sealing mechanism (along with an O-ring) to guarantee superior fluid containment and vibration resistance.

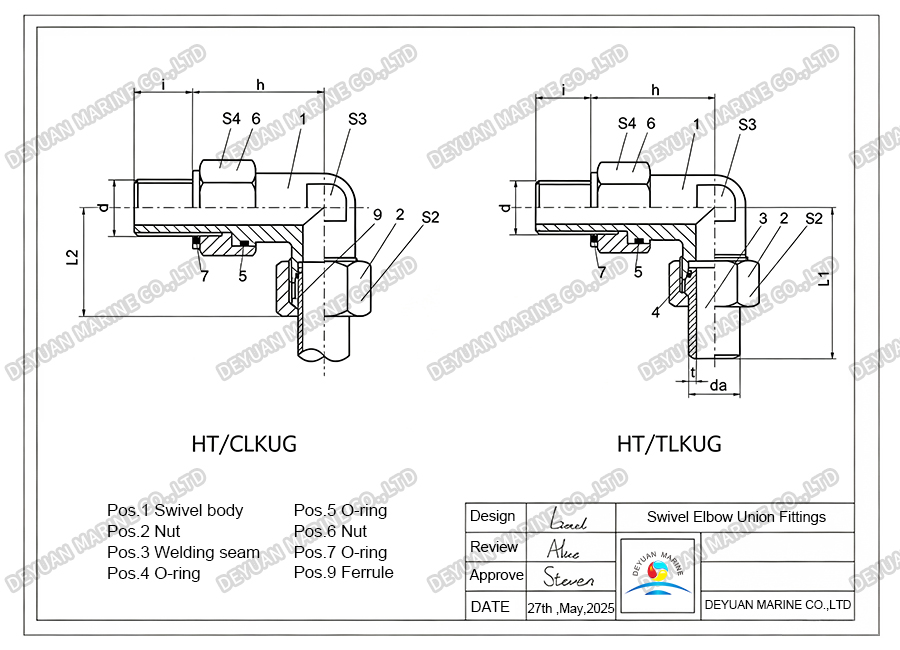

Adjustable Swivel Elbow Union Fittings Drawing:
Adjustable Swivel Elbow Union Fittings Technical Specifications:
| Series | Tube OD | Ordering Code | d | i | D1 | L1 | L2 | h | S2 | S3 | S4 | Pressure (PN) | |
| HT/CLKUG dax t | HT/CLKUG | ||||||||||||
| L | 06 08 | HT/CLKUG06×tL* HT/CLKUG08×tL* | HT/TLKUG06L* HT/TLKUG08L* | G1/8A G1/4A | 8 12 | 19 22 | 43.0 43.5 | 27 29 | 34.0 36.0 | 14 17 | 17 19 | 21 24 | 315 315 |
| 10 12 | HT/CLKUG10×tL* HT/CLKUG12×tL* | HT/TLKUG10L* HT/TLKUG12L* | G1/4A G3/8A | 12 12 | 22 24 | 48.0 50.0 | 30 32 | 36.0 36.5 | 19 22 | 19 19 | 24 27 | 315 315 | |
| 15 18 | HT/CLKUG15×tL* HT/CLKUG18×tL* | HT/TLKUG15L* HT/TLKUG18L* | G1/2A G1/2A | 14 14 | 30 30 | 56.0 62.5 | 36 40 | 42.5 42.5 | 27 32 | 24 24 | 32 32 | 315 250 | |
| 22 28 | HT/CLKUG22×tL* HT/CLKUG28×tL* | HT/TLKUG22L* HT/TLKUG28L* | G3/4A G1A | 16 18 | 40 45 | 66.0 70.5 | 44 47 | 51.0 63.5 | 36 41 | 27 36 | 41 50 | 160 160 | |
| 35 42 | HT/CLKUG35×tL* HT/CLKUG42×tL* | HT/TLKUG35L* HT/TLKUG42L* | G11/4A G11/2A | 20 22 | 54 60 | 83.0 91.0 | 56 63 | 67.5 74.5 | 50 60 | 41 50 | 60 65 | 160 160 | |
| S | 10 10 | HT/CLKUG10×tS/G1/4A* HT/CLKUG10×tS/G3/8A* | HT/TLKUG10S/G1/4A* HT/TLKUG10S/G3/8A* | G1/4A G3/8A | 12 12 | 22 24 | 55.0 55.0 | 34 34 | 36.0 36.0 | 22 22 | 19 19 | 24 27 | 630 630 |
| 12 16 | HT/CLKUG12×tS* HT/CLKUG16×tS* | HT/TLKUG12S* HT/TLKUG16S* | G3/8A G1/2A | 12 14 | 24 30 | 55.5 64.0 | 38 43 | 36.5 42.5 | 24 30 | 19 24 | 27 32 | 630 400 | |
| 20 25 | HT/CLKUG20×tS* HT/CLKUG25×tS* | HT/TLKUG20S* HT/TLKUG25S* | G3/4A G1A | 16 18 | 40 46 | 74.5 88.0 | 48 54 | 51.0 63.5 | 36 46 | 27 36 | 41 50 | 400 400 | |
| 30 38 | HT/CLKUG30×tS* HT/CLKUG38×tS* | HT/TLKUG30S* HT/TLKUG38S* | G11/4A G11/2A | 20 22 | 54 60 | 92.0 109.0 | 62 72 | 67.5 74.5 | 50 60 | 41 50 | 60 65 | 400 315 | |
| 50 | HT/TLKUG50S* | G2A | 24 | 75 | 126.0 | 90.0 | 80 | 80 | 80 | 250 | |||

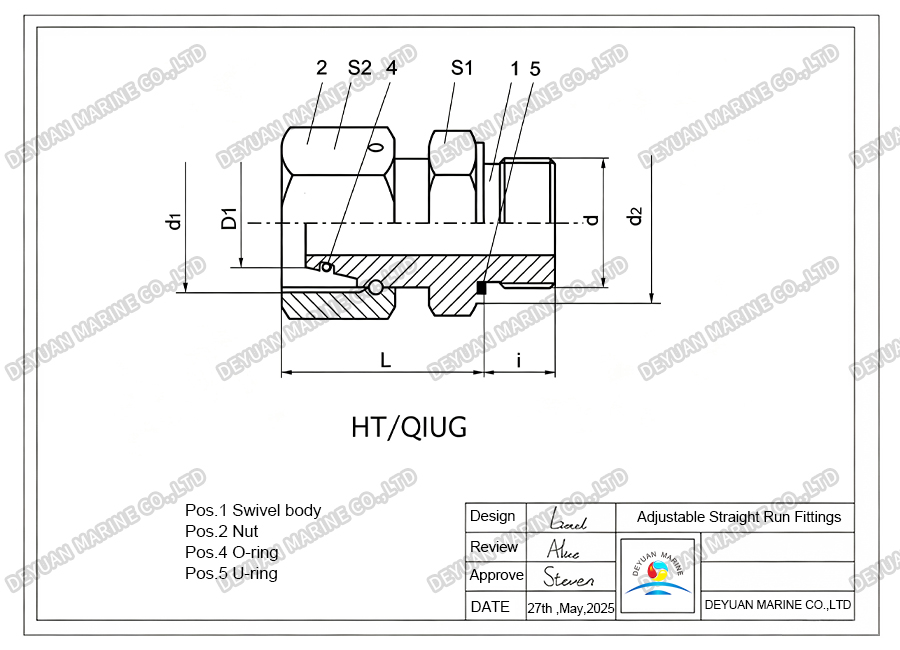

Adjustable Straight Run Fittings Drawing:
Adjustable Straight Run Fittings Technical Specifications:
| Series | Tube OD | Ordering Code HT/QIUG dax t | d | i | d1 | d2 | L | S1 | S2 | Pressure (PN) |
| L | 06 08 | HT/QIUG06L* HT/QIUG08L* | G1/8A G1/4A | 8.0 12.0 | M12×1.5 M14×1.5 | 14 19 | 24.5 29.5 | 14 19 | 14 17 | 315 315 |
| 10 10 | HT/QIUG10L* HT/QIUG10L/G3/8A* | G1/4A G3/8A | 12.0 12.0 | M16×1.5 M16×1.5 | 19 22 | 27.5 29.0 | 19 22 | 19 19 | 315 315 | |
| 12 12 | HT/QIUG12L* HT/QIUG12L/G1/4* | G3/8A G1/4A | 12.0 12.0 | M18×1.5 M18×1.5 | 22 19 | 34.0 27.5 | 22 19 | 22 22 | 315 315 | |
| 12 15 | HT/QIUG12L/G1/2* HT/QIUG15L* | G1/2A G1/2A | 14.0 14.0 | M18×1.5 M22×1.5 | 27 27 | 29.5 32.0 | 27 27 | 22 27 | 315 315 | |
| 18 18 | HT/QIUG18L* HT/QIUG18L/G3/4A* | G1/2A G3/4A | 14.0 16.0 | M26×1.5 M26×1.5 | 27 32 | 31.5 29.5 | 27 32 | 32 32 | 315 160 | |
| 22 28 | HT/QIUG22L* HT/QIUG28L* | G3/4A G1A | 16.0 18.0 | M30×2.0 M36×2.0 | 32 40 | 32.5 35.0 | 32 41 | 36 41 | 160 160 | |
| 35 42 | HT/QIUG35L* HT/QIUG42L* | G1 1/4A G1 1/2A | 20.0 22.0 | M45×2.0 M52×2.0 | 50 55 | 42.5 46.5 | 50 55 | 50 60 | 160 160 | |
| S | 06 08 | HT/QIUG06S* HT/QIUG08S* | G1/4A G1/4A | 12.0 12.0 | M14×1.5 M16×1.5 | 19 19 | 27.0 29.5 | 19 19 | 17 19 | 630 630 |
| 10 10 | HT/QIUG10S* HT/QIUG10S/G1/4* | G3/8A G1/4A | 12.0 12.0 | M18×1.5 M18×1.5 | 22 19 | 32.0 29.0 | 22 19 | 22 22 | 630 630 | |
| 12 12 | HT/QIUG12S* HT/QIUG12S/G1/4* | G3/8A G1/4A | 12.0 12.0 | M20×1.5 M20×1.5 | 22 19 | 34.0 31.5 | 22 19 | 24 24 | 630 630 | |
| 12 14 | HT/QIUG12S/G1/2* HT/QIUG14S* | G1/2A G1/2A | 14.0 14.0 | M20×1.5 M22×1.5 | 27 27 | 35.5 36.5 | 27 27 | 24 27 | 630 630 | |
| 16 20 | HT/QIUG16S* HT/QIUG20S* | G1/2A G3/4A | 14.0 16.0 | M24×1.5 M30×2.0 | 27 32 | 37.0 43.0 | 27 32 | 30 36 | 400 400 | |
| 25 30 | HT/QIUG25S* HT/QIUG30S* | G1A G1 1/4A | 18.0 20.0 | M36×2.0 M42×2.0 | 40 50 | 48.0 51.0 | 41 50 | 46 50 | 400 400 | |
| 38 50 | HT/QIUG38S* HT/QIUG50S* | G1 1/2A G2A | 22.0 24.0 | M52×2.0 M68×2.0 | 55 70 | 60.0 75.0 | 55 70 | 60 80 | 315 250 | |
| 50 | HT/QIUG50S/G13/4A* | G1 3/4A | 24.0 | M68×2.0 | 80 | 75.0 | 70 | 80 | 250 |
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
Extrusion Type Pipe Joint Nominal Pressure Levels:
Applications:
Ideal for shipbuilding, marine engineering, offshore oil and gas platforms, and heavy-duty hydraulic machinery. The adjustable design significantly reduces installation time by allowing precise orientation of pipes before final tightening.
