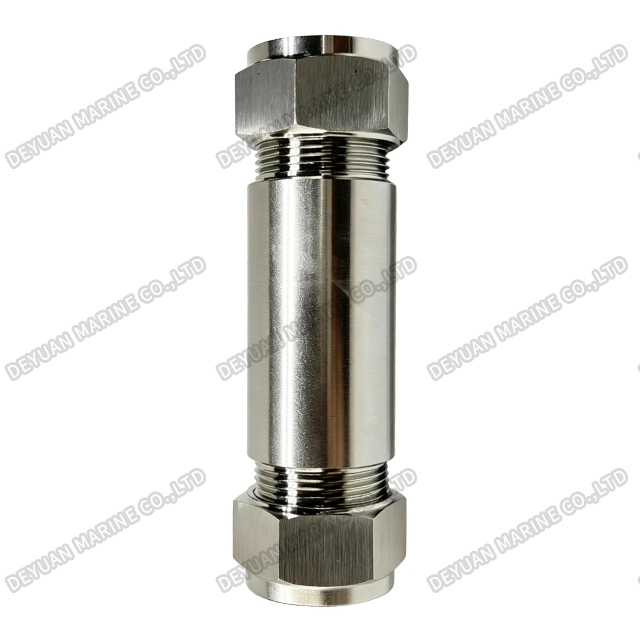

Double Ferrule Bulkhead Union
Product Introduction:
The Double Ferrule Bulkhead Union (also referred to as Bulkhead Fitting or Through-Bulkhead Connector) is a specialized tube fitting designed for secure and leak‑free pipe connections through bulkheads, panels, or walls in hydraulic and pneumatic systems. Its unique bulkhead design allows the fitting to be mounted on a partition, with threads on both sides to fasten it firmly in place, ensuring excellent sealing performance and mechanical strength even in demanding environments.
Key Design Features:
At the heart of this fitting is the double ferrule gripping mechanism, which consists of a front ferrule and a rear ferrule. When the nut is tightened, the front ferrule creates a primary seal by biting into the tube wall, while the rear ferrule provides a strong mechanical grip to resist vibration, pressure surges, and tube pull‑out. This dual‑ferrule design ensures reliable, maintenance‑free connections that can be repeatedly assembled and disassembled without compromising performance.

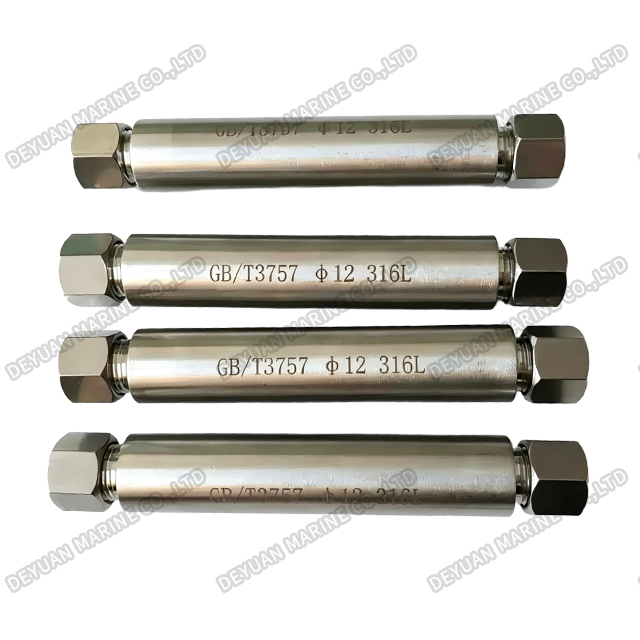

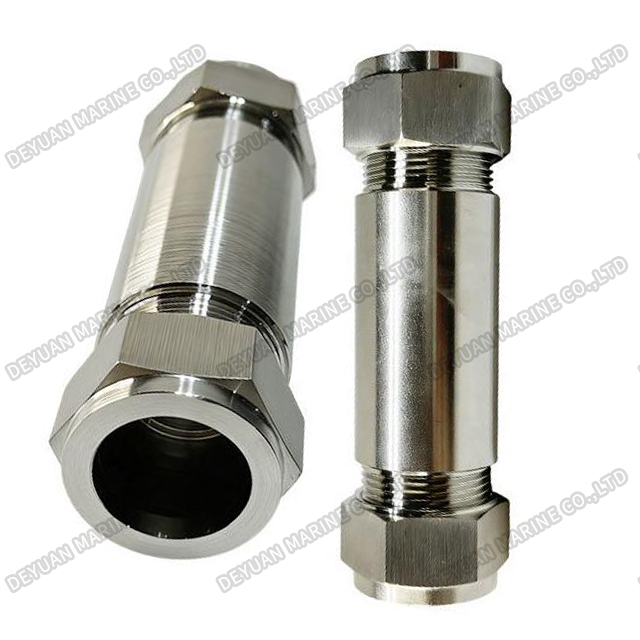

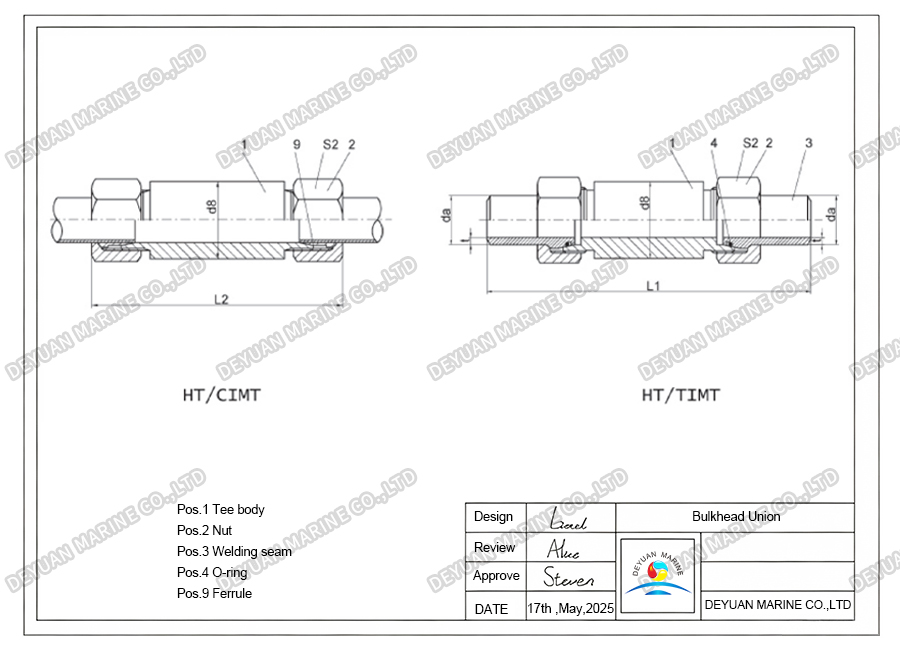

Drawing:
Technical Specifications:
| Series | Tube OD | Ordering Code | d8 | L1 | L2 | S2 | Pressure (PN) | |
| HT/CIMT dax t | HT/TIMT | |||||||
| L | 06 08 | HT/CIMT06×tL* HT/CIMT8×tL* | HT/TIMT06L* HT/TIMT08L* | 18 20 | 113 114 | 85 85 | 14 17 | 315 315 |
| 10 12 | HT/CIMT10×tL* HT/CIMT2×tL* | HT/TIMT10L* HT/TIMT12L* | 22 25 | 122 123 | 87 87 | 19 22 | 315 315 | |
| 15 18 | HT/CIMT15×tL* HT/CIMT18×tL* | HT/TIMT15L* HT/TIMT18L* | 28 32 | 140 146 | 100 101 | 24 32 | 315 315 | |
| 22 28 | HT/CIMT22×tL* HT/CIMT28×tL* | HT/TIMT22L* HT/TIMT28L* | 36 40 | 149 153 | 105 106 | 36 41 | 160 160 | |
| 35 42 | HT/CIMT35×tL* HT/CIMT42×tL* | HT/TIMT35L* HT/TIMT42L* | 50 60 | 168 171 | 114 115 | 50 60 | 160 160 | |
| S | 06 08 | HT/CIMT06×tS* HT/CIMT08×tS* | HT/TIMT06S* HT/TIMT08S* | 20 22 | 113 116 | 89 89 | 17 19 | 630 630 |
| 10 12 | HT/CIMT10×tS* HT/CIMT2×tS* | HT/TIMT10S* HT/TIMT12S* | 25 28 | 126 126 | 91 91 | 22 24 | 630 630 | |
| 14 16 | HT/CIMT14×tS* HT/CIMT16×tS* | HT/TIMT14S* HT/TIMT16S* | 30 35 | 144 149 | 107 107 | 27 30 | 630 400 | |
| 20 25 | HT/CIMT20×tS* HT/CIMT25×tS* | HT/TIMT20S* HT/TIMT25S* | 38 45 | 161 176 | 114 120 | 36 46 | 400 400 | |
| 30 38 | HT/CIMT30×tS* HT/CIMT38×tS* | HT/TIMT30S* HT/TIMT38S* | 50 60 | 188 197 | 126 133 | 50 60 | 400 315 | |
Note: *Material:C-Carbon steel; P-Stainless steel; T-Brass.
Extrusion Type Pipe Joint Nominal Pressure Levels:
Typical Applications:
*Marine hydraulic systems (through deck or bulkhead piping).
*Offshore oil & gas platforms.
*Shipbuilding and repair.
*Industrial power units and manifold panels.
*Process instrumentation and control cabinets.
*Mobile equipment (excavators, cranes, loaders).
Advantages at a Glance
*Reliable sealing – double ferrule design ensures zero leakage even under cyclic pressure and vibration
*Easy installation – no welding, soldering, or tube preparation required
*Reusable – can be assembled and disassembled multiple times with consistent performance
*Space‑saving – compact dimensions allow installation in tight spaces
*Versatile – wide size range and multiple material choices suit diverse applications
All fittings are 100% pressure‑tested and comply with international dimensional standards (ISO 8434‑1 / DIN 2353 equivalents). For detailed ordering or custom requirements, please contact our technical sales team.
