Product Description
Metric Female 74° Cone Seat
Product Introduction:
The HT/CM Series represents a comprehensive line of high-performance marine fittings, specifically engineered with a Metric Female 74° Cone Seat design. These fittings are crucial for ensuring reliable flow control and leak-free connections in vessel piping and hydraulic systems.
Key Features & Configurations:
Designed for versatility and durability in harsh marine environments, this series offers three standard configurations to accommodate various installation requirements:

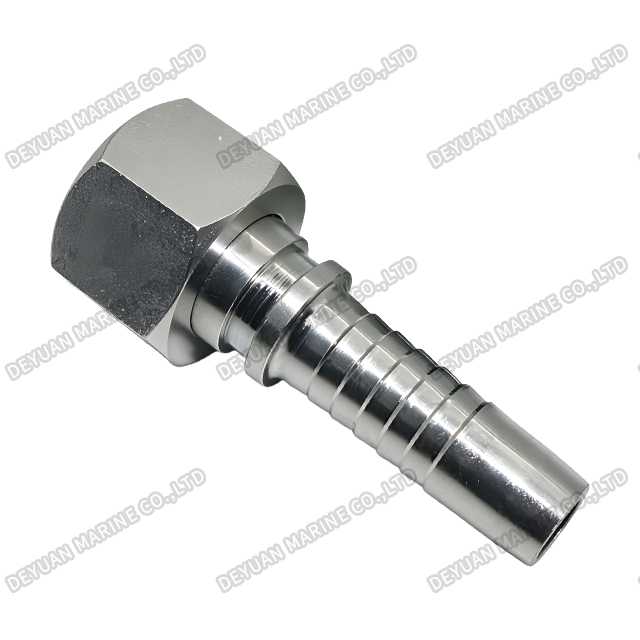

*HT/CM1 (Standard Straight): Ideal for straightforward connections.
*HT/CM4 (45° Elbow): Designed for routing around moderate obstacles.

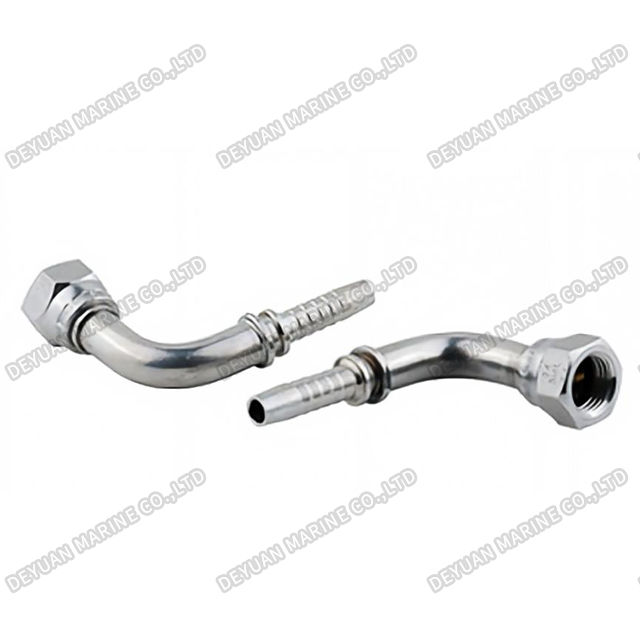

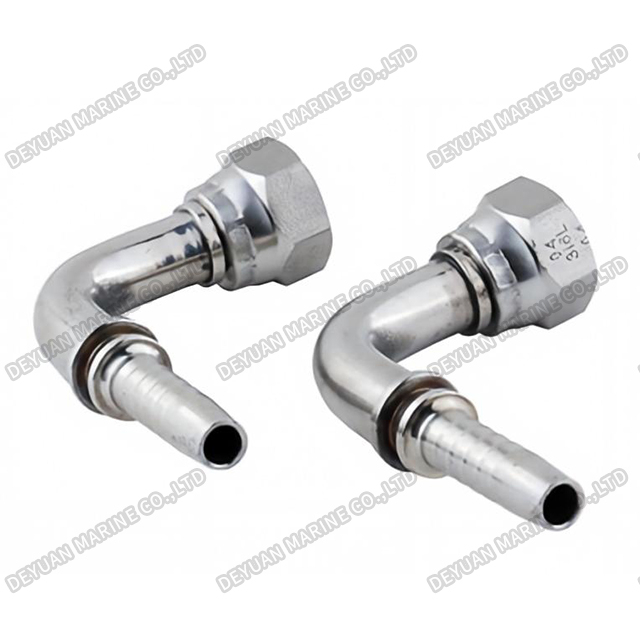

*HT/CM9 (90° Elbow): Perfect for tight spaces and perpendicular connections.

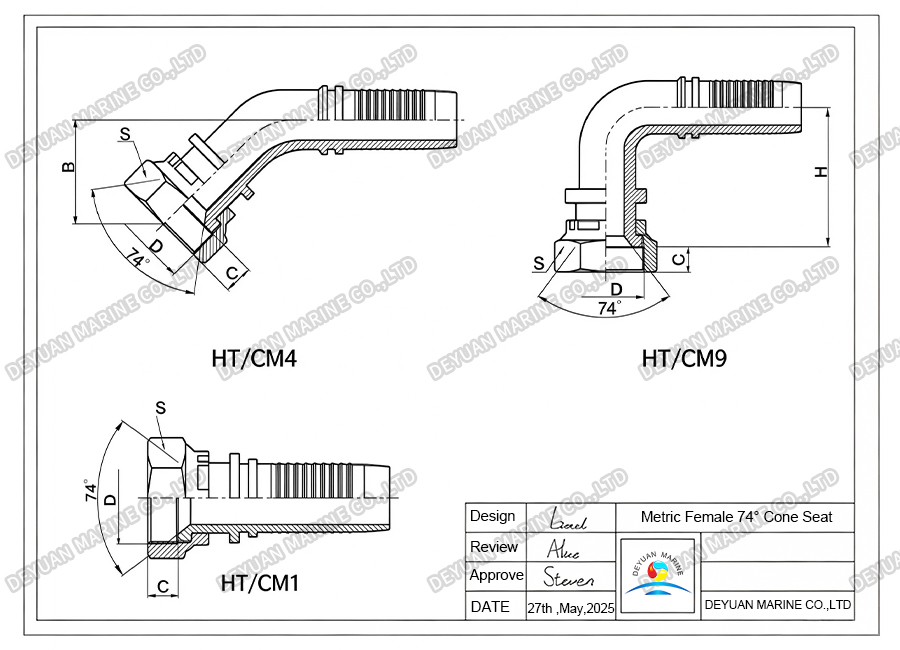

Drawing:
Technical Specifications:
| Part No. Straight | Model | Thread D | Hose I.D | Dimensions | ||||
| 45° | 90° | C | S | B | H | |||
| HT/CM1-14-06 | HT/CM4- | HT/CM9- | M14×1.5 | 06 | 8 | 19 | 18.5 | 34 |
| HT/CM1-16-08 | HT/CM4- | HT/CM9- | M16×1.5 | 08 | 8 | 22 | 20 | 38 |
| HT/CM1-18-10 | HT/CM4- | HT/CM9- | M18×1.5 | 10 | 10 | 24 | 21.5 | 41.5 |
| HT/CM1-22-12 | HT/CM4- | HT/CM9- | M22×1.5 | 12.5 | 10 | 27 | 24 | 48 |
| HT/CM1-27-16 | HT/CM4- | HT/CM9- | M27×1.5 | 16 | 11 | 32 | 26.5 | 54 |
| HT/CM1-30-19 | HT/CM4- | HT/CM9- | M30×1.5 | 19 | 11 | 36 | 30 | 63.5 |
| HT/CM1-36-22 | HT/CM4- | HT/CM9- | M36×2 | 22 | 14 | 41 | 29.5 | 64.5 |
| HT/CM1-39-25 | HT/CM4- | HT/CM9- | M39×2 | 25 | 14 | 46 | 32 | 70.5 |
| HT/CM1-45-32 | HT/CM4- | HT/CM9- | M45×2 | 32 | 15 | 55 | 36 | 83 |
| HT/CM1-52-38 | HT/CM4- | HT/CM9- | M52×2 | 38 | 17 | 60 | 38 | 96.5 |
| HT/CM1-64-51 | 一 | 一 | M64×2 | 51 | 23 | 75 | 一 | 一 |
Applications:
These fittings are widely used in marine hydraulic, fuel, cooling, and pneumatic piping systems. The robust construction and precise 74° cone seat design guarantee excellent pressure resistance and long-term reliability, minimizing the risk of fluid leakage on board.
