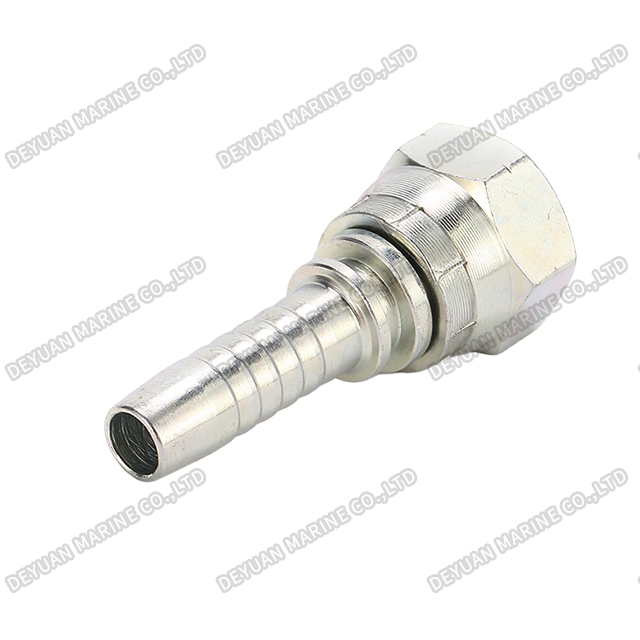

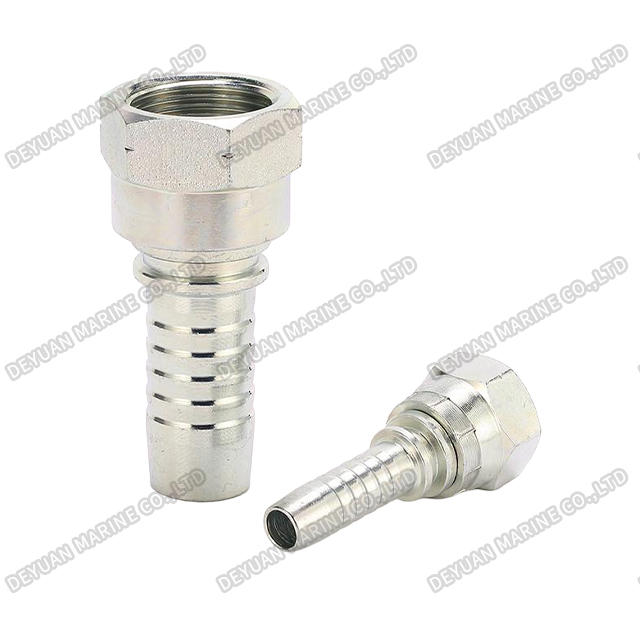

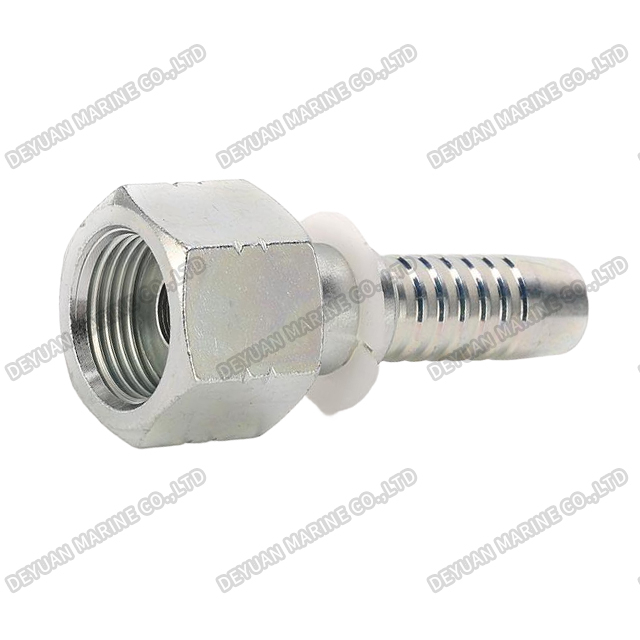

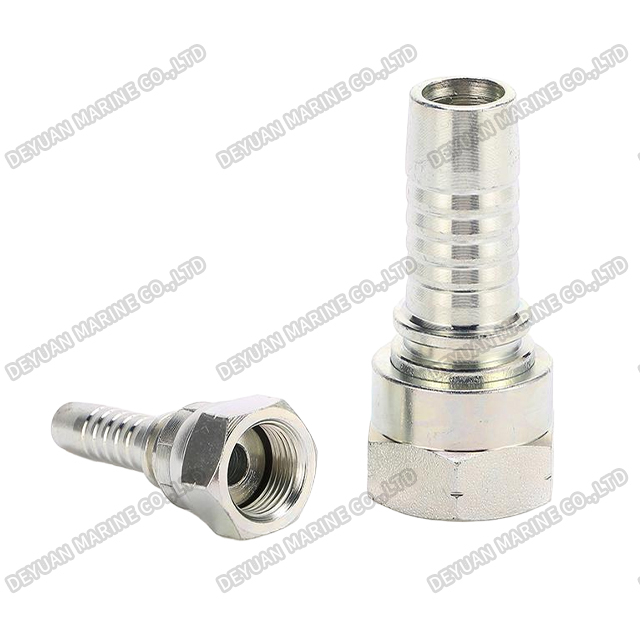

BSP Female Flat Seat
Product Introduction:
Engineered specifically for the rigorous demands of shipbuilding and marine engineering, our Marine BSP Female Flat Seat Fittings (HT/AG Series) are high-performance hose connectors designed for secure and leak-proof fluid transfer. These fittings feature a British Standard Pipe (BSP) female thread combined with a precision-machined flat seat, ensuring a reliable metal-to-metal seal against mating male fittings.
The HT/AG series is designed for direct insertion into hydraulic hoses, providing a robust and versatile connection point. With sizes ranging from G1/4" to G2" and accommodating hose inner diameters from 6mm to 51mm, these fittings are perfect for low to medium-pressure marine systems where vibration resistance and ease of maintenance are critical. Manufactured from high-quality carbon steel or stainless steel, they offer excellent corrosion resistance in harsh saltwater environments.

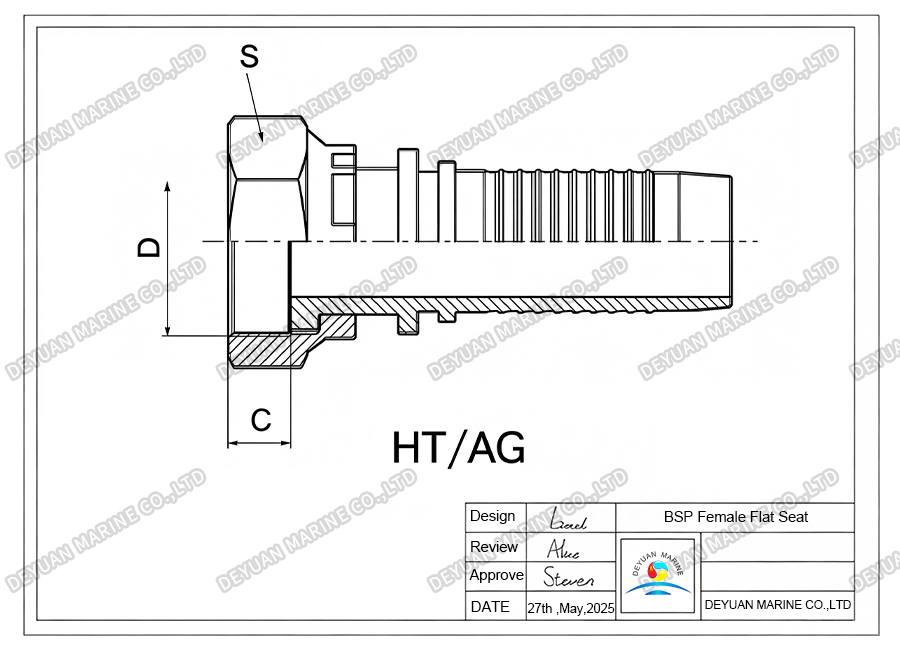

Drawing:
Technical Specifications:
| Part No. | Thread D | Hose I.D | Dimensions | |
| C | S | |||
| HT/AG-04-06 | G1/4 | 06 | 8 | 19 |
| HT/AG-06-06 | G3/8 | 06 | 10.5 | 22 |
| HT/AG-06-08 | G3/8 | 08 | 10.5 | 22 |
| HTIAG-08-10 | G1/2 | 10 | 11.5 | 27 |
| HT/AG-10-12 | G5/8 | 12.5 | 12 | 30 |
| HTIAG-12-16 | G3/4 | 16 | 12 | 32 |
| HT/AG-12-19 | G3/4 | 19 | 12 | 32 |
| HT/AG-16-25 | G1 | 25 | 15 | 41 |
| HTIAG-20-32 | G114 | 32 | 16.5 | 50 |
| HT/AG-24-38 | G11/2 | 38 | 17 | 55 |
| HTIAG-32-51 | G2 | 51 | 23 | 70 |
Key Features & Specifications:
1.Thread Standard: British Standard Pipe (BSPP / G-thread), ranging from G1/4" to G2".
2.Sealing Mechanism: Flat Seat design for a tight, reliable seal without the need for additional washers.
3.Hose Compatibility: Designed for hose inner diameters (I.D.) from 06mm to 51mm.
4.Robust Construction: Features a heavy-duty hexagonal nut (dimension S) for easy installation and high torque tolerance.
5.Versatile Application: Ideal for marine hydraulic return lines, fuel systems, cooling water circuits, and general shipboard piping.
Product Applications:
*Hydraulic Hose Connection: For connecting hoses to equipment in marine hydraulic systems.
*Deck & Auxiliary Equipment: For fluid transfer in deck machinery, auxiliary engines, and marine pumps/valves.
*Low-Medium Pressure Sealing: BSP female thread with flat seat, ideal for vibration-resistant and leak-proof piping.
