Product Description
SAE Flange 3000Psi
Product Introduction:
The HT/FL Series is a comprehensive range of marine-grade hydraulic connections designed to meet the SAE J518 Code 61 (3000 PSI) standard. Engineered specifically for vessel piping and hydraulic systems, this series ensures reliable, leak-proof performance in the harsh marine environment.
To accommodate diverse routing and installation needs, the series offers three standard fitting configurations:

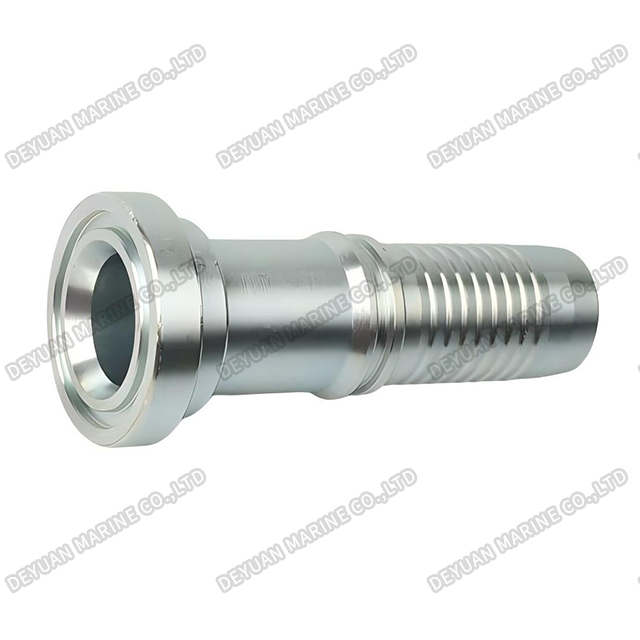

*HT/FL1 (Standard Straight): Ideal for in-line connections.

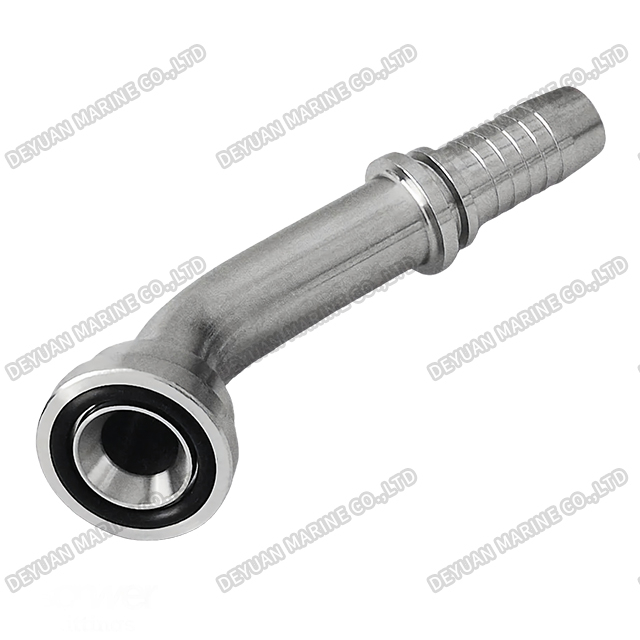

*HT/FL4 (45° Elbow): Designed for moderate directional changes.

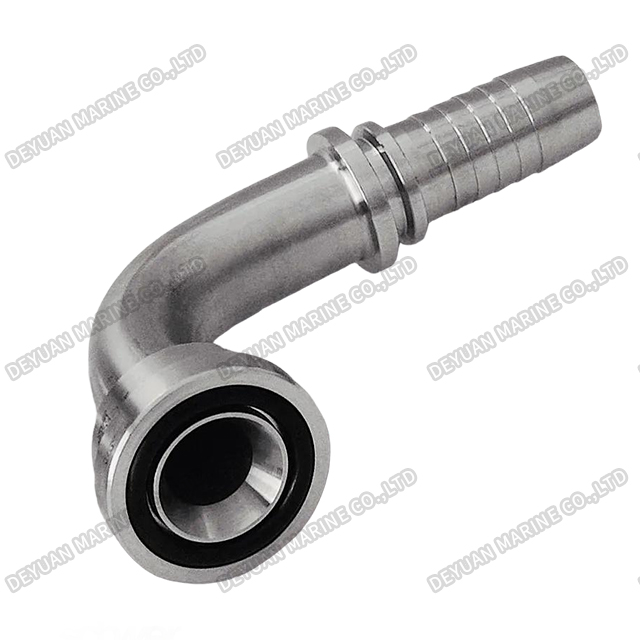

*HT/FL9 (90° Elbow): Perfect for right-angle connections in tight spaces.
The system covers flange sizes ranging from 1/2" to 2" and supports hose inner diameters (I.D.) from 12.5 mm to 51 mm. Each fitting is manufactured with precise dimensional control, including C (thread length), B (drop length), and H (overall height), ensuring a perfect match with the corresponding HT/FL Split Flange Clamps (Part numbers: HT/FL-08 to HT/FL-32).

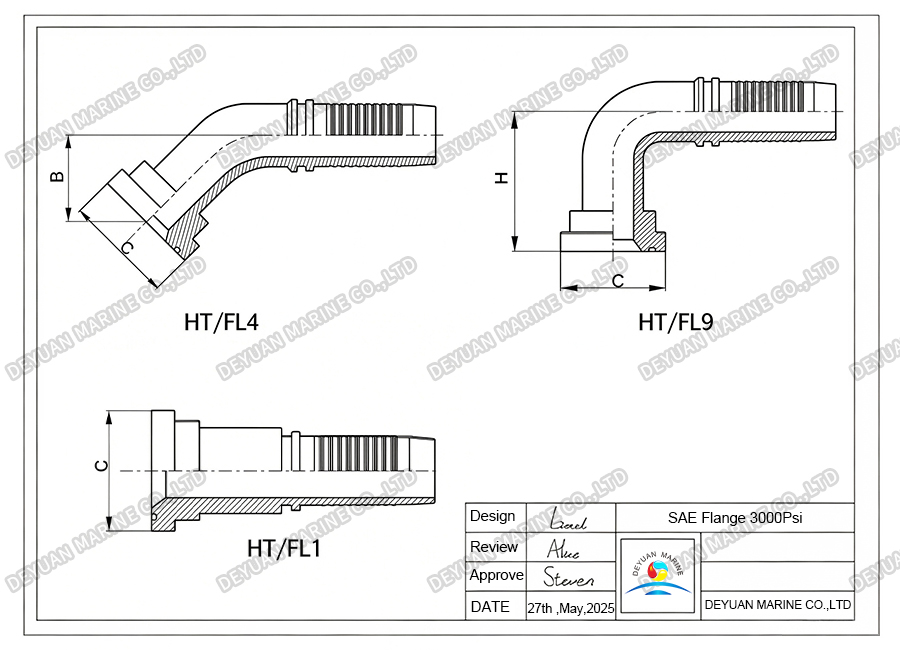

Drawing:
Technical Specifications:
| Part No. Straight | Model | Flange Size | Hose I.D | Dimensions | |||
| 45° | 90° | C | B | H | |||
| HT/FL1-08-12 | HT/FL4- | HT/FL9- | 1" | 12.5 | 30.2 | 23 | 47 |
| HT/FL1-12-19 | HT/FL4- | HT/FL9- | 3/4" | 19 | 38.1 | 29 | 62 |
| HT/FL1-16-25 | HT/FL4- | HT/FL9- | 1" | 25 | 44.4 | 30 | 67.5 |
| HT/FL1-20-32 | HT/FL4- | HT/FL9- | 11/4" | 32 | 50.8 | 34 | 78.5 |
| HT/FL1-24-38 | HT/FL4- | HT/FL9- | 11/2" | 38 | 60.3 | 39 | 94 |
| HT/FL1-32-51 | HT/FL4- | HT/FL9- | 2" | 51 | 71.4 | 46 | 114.5 |

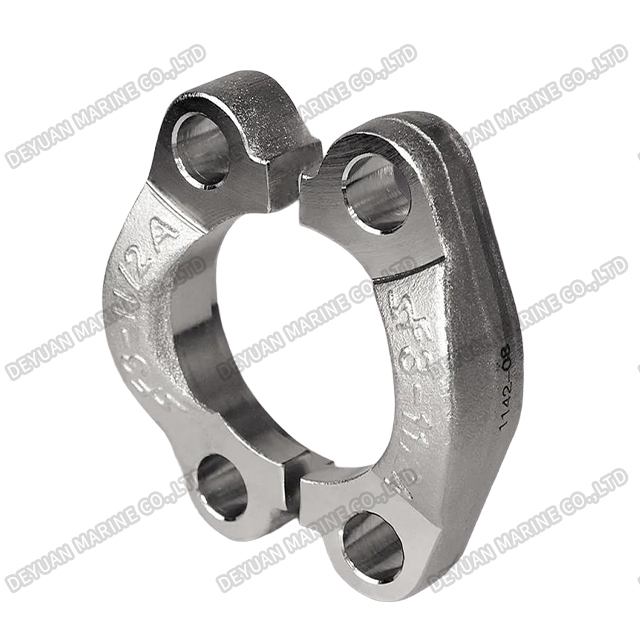

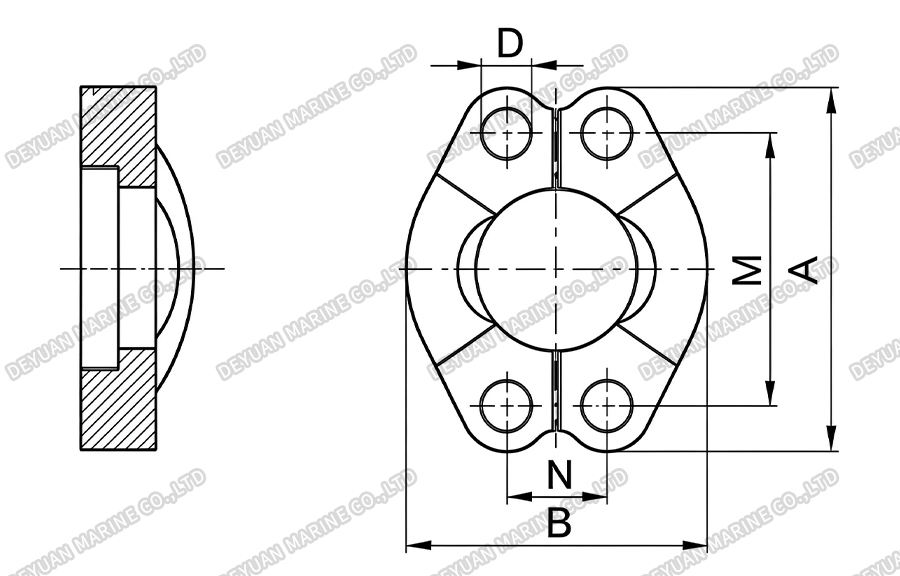

Split Flange Clamps 3000 Psi：
| Part No. | Flange Size | Dimensions | ||||
| A | B | M | N | D | ||
| HT/FL-08 | 1/2" | 54 | 45.6 | 38.1 | 17.5 | 9 |
| HT/FL-12 | 3/4" | 65 | 51.8 | 47.6 | 22.2 | 11 |
| HT/FL-16 | 1" | 70 | 58.4 | 52.4 | 26.2 | 11 |
| HT/FL-20 | 11/4" | 79 | 72.6 | 58.7 | 30.2 | 11 |
| HT/FL-24 | 11/2" | 94 | 82.2 | 69.9 | 35.7 | 13.5 |
| HT/FL-32 | 2" | 102 | 96.4 | 77.8 | 42.9 | 13.5 |
Product Features:
1.Standard Compliance: Manufactured strictly to SAE J518 (Code 61) and ISO 6162-1 standards, ensuring global interchangeability and reliability.
2.High-Pressure Performance: Rated for working pressures up to 3000 PSI, providing robust flow control for demanding marine hydraulic, fuel, and cooling systems.
3.Split Flange Clamp Design: The two-piece split flange clamp design allows for easy installation and maintenance. You can replace O-rings or service the connection without completely disassembling the entire piping system.
4.Vibration & Corrosion Resistance: Specifically designed for shipboard environments, these fittings handle heavy vibration, pressure spikes, and exposure to saltwater and marine elements.
5.Versatile Configurations: Available in straight, 45°, and 90° elbows with comprehensive dimensional data (Dimensions A, B, C, M, N, D), making them adaptable to complex engine room layouts.
6.Secure Sealing: Relies on a high-quality O-ring seated in a precision groove, compressed by the split flange clamps against a flat port surface to guarantee a zero-leak seal.
Product Applications:
1.Marine Hydraulic Systems:Widely used for high-pressure piping connections in steering gear, windlass, winches, and other deck machinery.
2.Marine Power & Propulsion Systems:Suitable for hydraulic oil and cooling lines of main engines, auxiliary engines, and gearboxes.
3.Fuel & Lubrication Systems:Used in marine fuel delivery and lubrication lines to ensure zero leakage under high pressure.
4.Deck & Bilge Piping:Ideal for bilge and deck piping layouts in space-constrained and high-vibration areas.
5.Marine Engineering & Offshore Platforms:Extensively used in hydraulic transmission systems of offshore drilling platforms, engineering vessels, and port machinery.
