Product Description

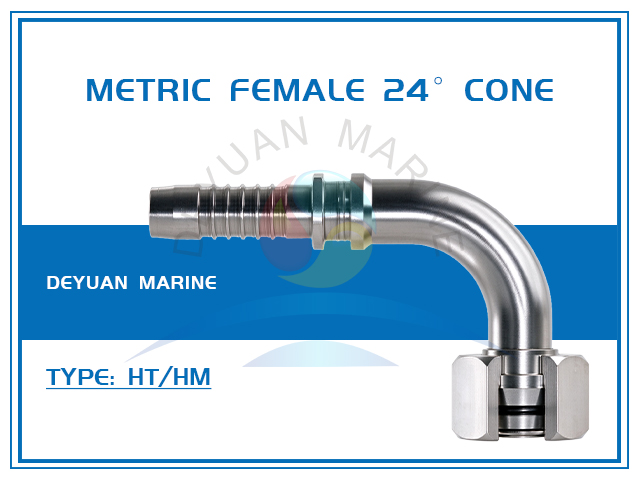

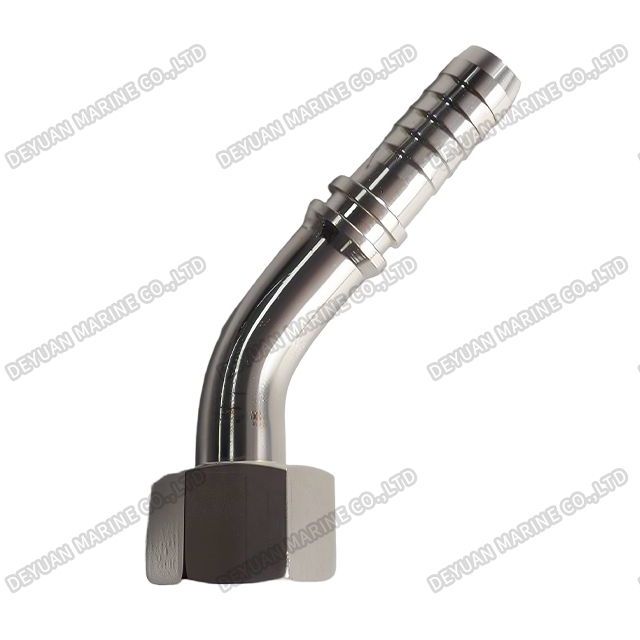

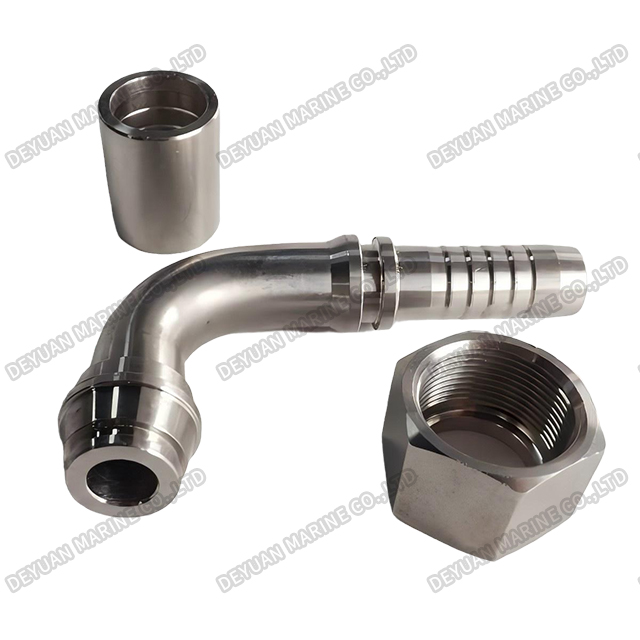

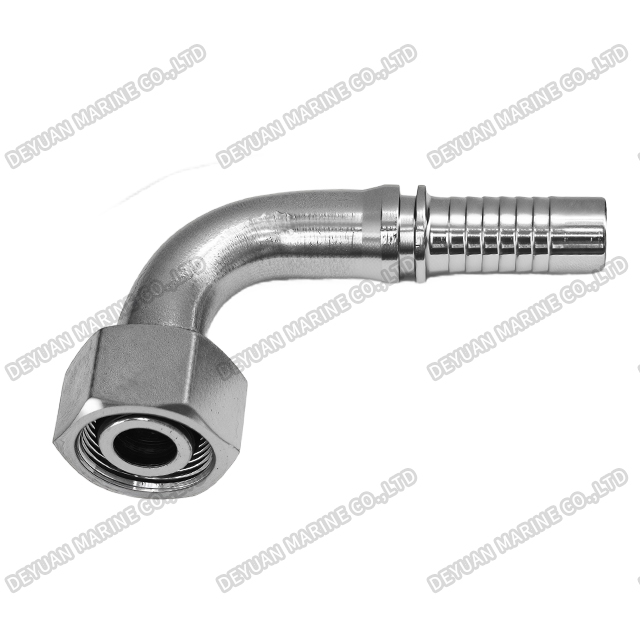

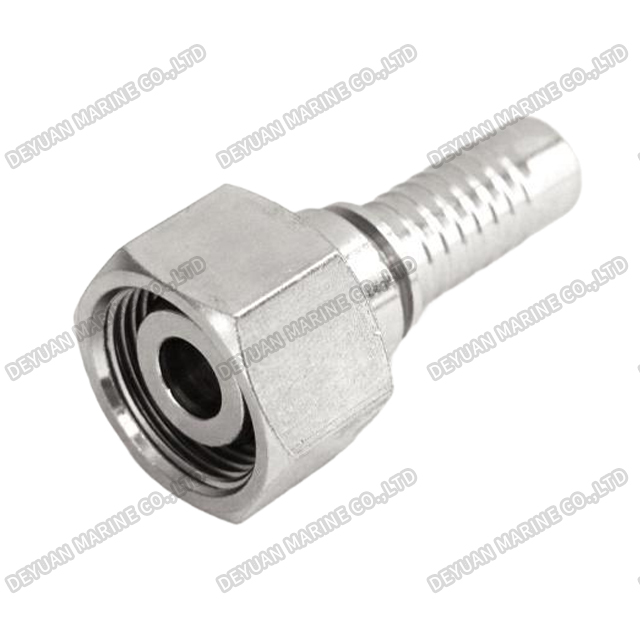

Metric Female 24°Cone
Product Introduction:
The HT/HM series represents a premium line of Metric Female 24° Cone Hydraulic Hose Fittings, specifically engineered for marine and heavy-duty industrial applications. Designed to provide leak-proof connections in high-pressure hydraulic systems, these fittings feature a metric female thread and a 24° cone sealing mechanism.
Available in three distinct configurations—Standard Straight (HT/HM1), 45° Elbow (HT/HM4), and 90° Elbow (HT/HM9)—this series offers versatile routing solutions for complex hydraulic assemblies. The product range is divided into two comprehensive categories to suit varying pressure and space requirements: the Light Series (accommodating hose I.D. from 06 to 32, and tube O.D. from 6mm to 42mm) and the Heavy Series (accommodating hose I.D. from 06 to 32, and tube O.D. from 6mm to 38mm).
With thread sizes ranging from M12x1.5 to M52x2, these fittings are manufactured to exacting tolerances to ensure a perfect mate with corresponding metric ports. Whether used in shipbuilding, offshore equipment, or marine machinery, the HT/HM series guarantees robust performance and exceptional durability in corrosive and demanding environments.

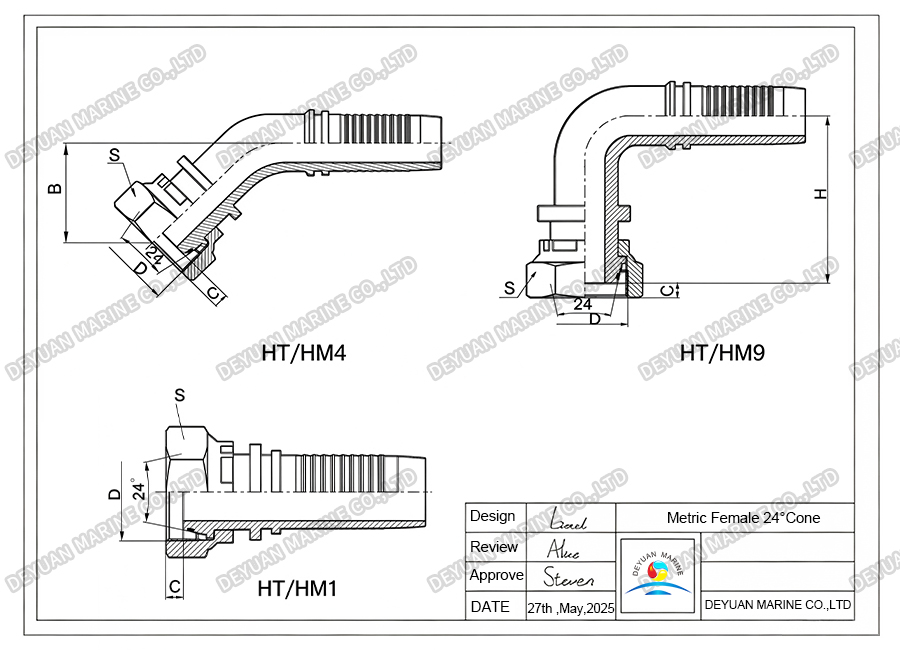

Drawing:
Technical Specifications:
| Light series | |||||||||
| Part No. Straight | Model | Thread D | Hose I.D | Tube O.D | Dimensions | ||||
| 45° | 90° | C | S | B | H | ||||
| HT/HM1-12-06 | 一 | 一 | M12×1.5 | 06 | 6 | 1 | 17 | 一 | 一 |
| HT/HM1-14-06 | HT/HM4- | HT/HM9- | M14×1.5 | 06 | 8 | 2 | 19 | 27 | 46 |
| HT/HM1-16-08 | HT/HM4- | HT/HM9- | M16×1.5 | 08 | 10 | 2 | 22 | 28.5 | 49.5 |
| HT/HM1-18-10 | HT/HM4- | HT/HM9- | M18×1.5 | 10 | 12 | 2.5 | 24 | 30 | 53.5 |
| HT/HM1-22-12 | HT/HM4- | HT/HM9- | M22×1.5 | 12.5 | 15 | 2.5 | 27 | 33 | 61 |
| HT/HM1-26-16 | HT/HM4- | HT/HM9- | M26×1.5 | 16 | 18 | 2.5 | 32 | 36 | 67.5 |
| HT/HM1-27-16 | HT/HM4- | HT/HM9- | M27×1.5 | 16 | 18 | 2.5 | 32 | 36 | 67.5 |
| HT/HM1-30-19 | HT/HM4- | HT/HM9- | M30×2 | 19 | 22 | 4 | 36 | 42 | 80 |
| HT/HM1-36-25 | HT/HM4- | HT/HM9- | M36×2 | 25 | 28 | 4 | 41 | 43 | 86 |
| HT/HM1-45-32 | HT/HM4- | HT/HM9- | M45×2 | 32 | 35 | 5 | 55 | 41 | 88.5 |
| HT/HM1-52-38 | HT/HM4- | HT/HM9- | M52×2 | 38 | 42 | 5.5 | 60 | 46 | 103.5 |
| Heavy series | |||||||||
| Part No. Straight | Model | Thread D | Hose I.D | Tube O.D | Dimensions | ||||
| 45° | 90° | C | S | B | H | ||||
| HT/HM1-16-06 | 一 | 一 | M16×1.5 | 06 | 8 | 1.5 | 22 | 28.5 | 48 |
| HT/HM1-18-06 | HT/HM4- | HT/HM9- | M18×1.5 | 06 | 10 | 2 | 22 | 22.5 | 39.5 |
| HT/HM1-20-08 | HT/HM4- | HT/HM9- | M20×1.5 | 08 | 12 | 2.5 | 24 | 24.5 | 44 |
| HT/HM1-22-10 | HT/HM4- | HT/HM9- | M22×1.5 | 10 | 14 | 2.5 | 27 | 26.5 | 47 |
| HT/HM1-24-12 | HT/HM4- | HT/HM9- | M24×1.5 | 12.5 | 16 | 3 | 30 | 27.5 | 53 |
| HT/HM1-30-16 | HT/HM4- | HT/HM9- | M30×2 | 16 | 20 | 3 | 36 | 31 | 60.5 |
| HT/HM1-36-19 | HT/HM4- | HT/HM9- | M36×2 | 19 | 25 | 3 | 41 | 34.5 | 70 |
| HT/HM1-42-25 | HT/HM4- | HT/HM9- | M42×2 | 25 | 30 | 5 | 50 | 37 | 77.5 |
| HT/HM1-52-32 | HT/HM4- | HT/HM9- | M52×2 | 32 | 38 | 6.5 | 60 | 41.5 | 89 |
Key Features:
1.Superior Sealing Performance: The 24° cone design ensures a metal-to-metal contact seal that reliably prevents hydraulic fluid leakage even under extreme pressure and vibration.
2.Comprehensive Configuration Options: Includes straight, 45°, and 90° elbow variants, allowing for flexible installation and optimized hose routing in tight marine engine rooms or machinery spaces.
3.Dual-Pressure Series: The availability of both Light and Heavy series allows engineers to select the optimal balance between weight, space-saving, and pressure resistance for specific hydraulic lines.
4.Standardized Metric Threads: Features precise metric threads (M12x1.5 up to M52x2), ensuring global interchangeability and compatibility with standard metric hydraulic ports.
5.Precision Engineering: Tight dimensional tolerances (C, S, B, H dimensions) ensure a secure fit, easy installation, and optimal wrench clearance.
6.Marine-Grade Durability: Built to withstand the harsh marine environment, offering excellent resistance to corrosion, temperature fluctuations, and mechanical stress.
