Product Description
Marine VC-B Hand Chain Hoist
Product Introduction:
The Marine VC-B Hand Chain Hoist is a compact, multi-purpose manual lifting solution built for demanding marine environments. Its lightweight, portable design and small headroom make it ideal for shipyards, docks, engine rooms, cargo holds, and offshore platforms where electric power may be unavailable. Constructed with heat-treated alloy steel components and a robust dual-pawl automatic braking system, this hoist ensures safe, reliable operation under harsh saltwater conditions. The RoHS-compliant industrial powder coating provides excellent corrosion resistance. High-strength G80 load chains and precision gears deliver smooth operation with minimal hand pull force. Certified to EN13157 and CE standards, the Marine VC-B offers capacities from 0.5 to 20 tons, making it the trusted choice for vessel maintenance, equipment installation, and cargo handling.

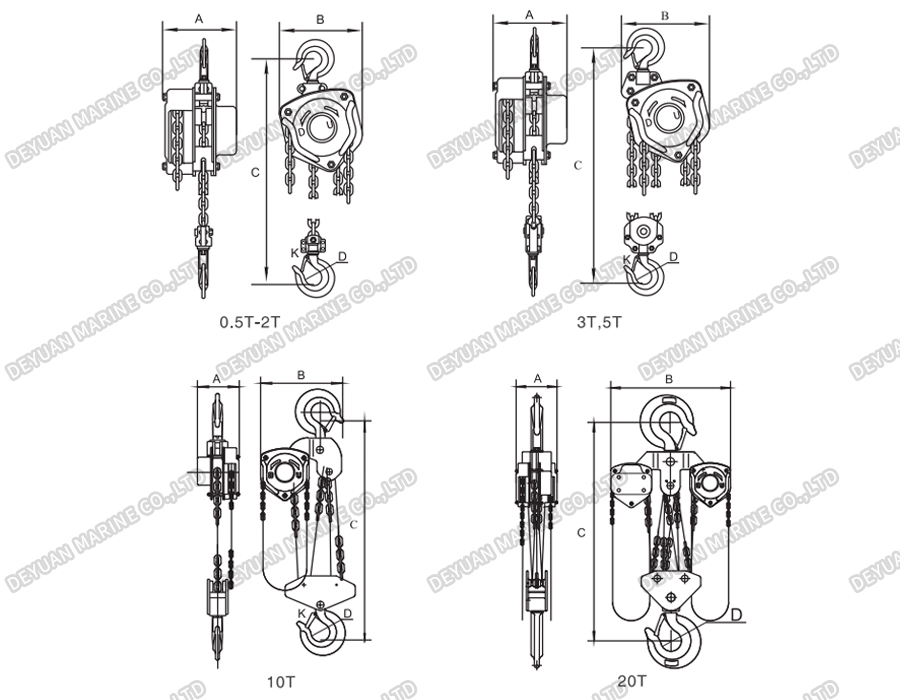

Drawing:
Product Parameters：
| Capacity | tons | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | |
| Running test load | KN | 7.5 | 15 | 22.5 | 30 | 45 | 62.5 | 125 | 250 | |
| Effort required to lift rated load | N | 231 | 309 | 320 | 360 | 340 | 414 | 414 | 414X2 | |
| Strands of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | ||
| Diameter of load chain | mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | |
| Dimensions | A | mm | 131 | 140 | 161 | 161 | 161 | 186 | 207 | 215 |
| B | mm | 127 | 158 | 174 | 187 | 199 | 253 | 398 | 650 | |
| C | mm | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | |
| D | mm | 35 | 35.5 | 45 | 42.5 | 50 | 64 | 85 | 110 | |
| K | mm | 30 | 28 | 36 | 33.5 | 40 | 50 | 64 | 85 | |
| Net weight | kg | 10 | 12 | 19 | 20 | 27 | 45.5 | 83 | 193 | |
| Packing measurement | cm | 22x15x19.5 | 23x18x19.5 | 28×18x19.5 | 28×21×24 | 32×21×26 | 40×21×31 | 50×41×21 | 64×38x64 | |
| Extra weight per metre of Extra lift | kg | 1.8 | 1.8 | 2.4 | 2.4 | 3.8 | 5.4 | 9.8 | 19.6 | |
Features & Benefits:
*Automatic dual pawl braking system.
*Asbestos-free friction linings / friction discs.
*Industrial powder coating compliant with RoHS requirements.
