Product Description

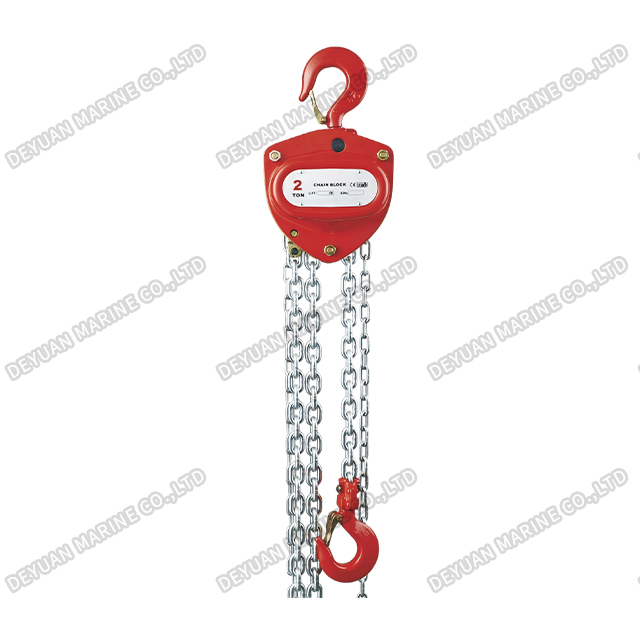

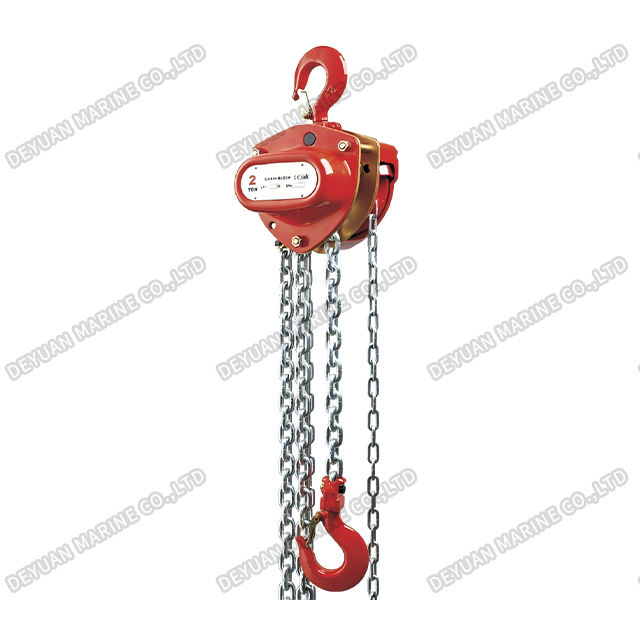

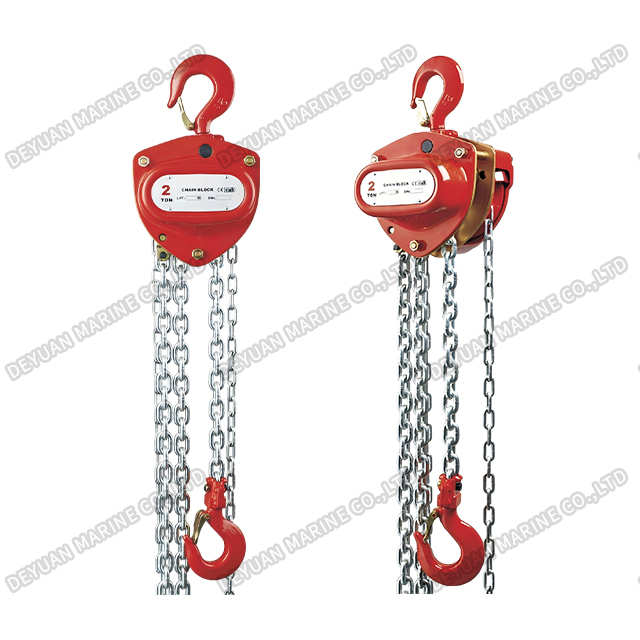

Marine K-II Hand Chain Hoist
Product Introduction:
The KII series manual chain hoist features a compact design with an attractive appearance. It adopts an all-steel structure that offers excellent wear resistance and corrosion protection. The product fully complies with European safety standards. In addition, the KII manual chain hoist is safe and reliable in operation, with high overall strength, high transmission efficiency, light and smooth hand chain operation, and comfortable hand chain grip — greatly reducing operator fatigue.
The gearbox and outer cover provide double-layer protection against rainwater and dust. The hoist is equipped with reliable braking performance (mechanical clutch), and dual pawl springs enhance reliability. The hook combines strength with excellent operability. Other features include high-precision, high-toughness gears, a unique bearing structure for high mechanical efficiency, a smooth load chain guide mechanism, a chain stopper to prevent the chain from running out during lowering operations, and a high-strength load chain.
The KII series manual chain hoist uses the best materials for its housing structure, hook, and chain wheel. The load chain is never spliced or jointed, ensuring extremely high safety — exceeding ISO international standards. This product absolutely brings you confidence in your choice.

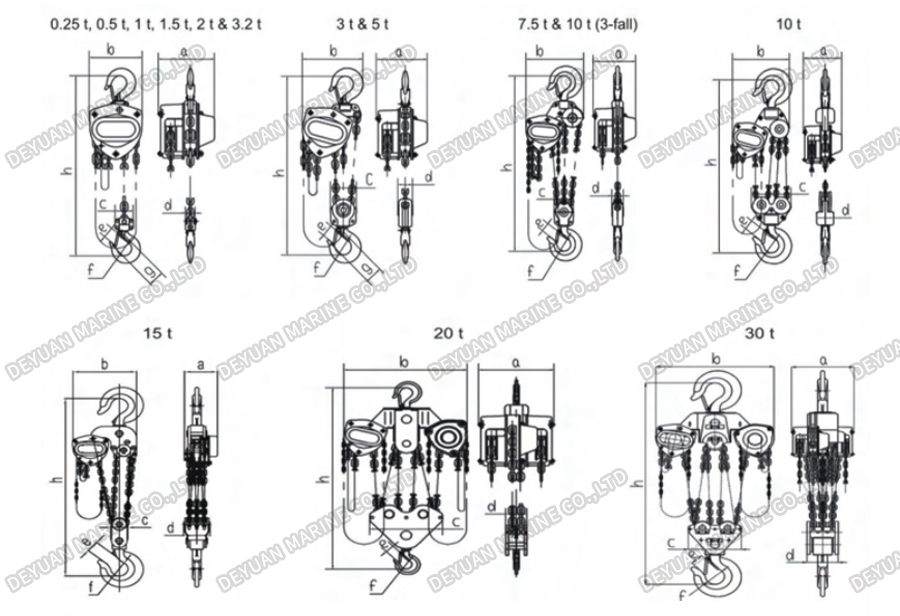

Drawing:
Product Parameters：
| Capacity | tonnes | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | |
| No.of Falls | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | ||
| Load Chain | mm | 4*12 | 6*18 | 6*18 | 8*24 | 8*24 | 8*24 | 10*30 | 10*30 | 10*30 | 10*30 | |
| Pull to Rated Load | N | 186 | 200 | 293 | 302 | 320 | 311 | 365 | 410 | 410x2 | 410x2 | |
| Proof Load | KN | 3.75 | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 150 | 300 | 450 | |
| Hand Chain | mm | 3x15 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | |
| Standard Lift | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Net Weight | kg | 3.9 | 12.1 | 14.9 | 18.7 | 19.9 | 26.8 | 42.5 | 75 | 156 | 246 | |
| Extra Wt/m | kg | 0.9 | 1.5 | 1.8 | 2.4 | 2.4 | 3.8 | 5.4 | 9.8 | 18.6 | 27.4 | |
| Dimensions | A | mm | 97 | 139 | 151 | 157 | 157 | 157 | 193 | 193 | 213 | 463 |
| B | mm | 1097 | 152 | 159 | 188 | 203 | 216 | 267 | 366 | 630 | 680 | |
| C | mm | 250 | 270 | 317 | 399 | 475 | 465 | 636 | 798 | 890 | 1380 | |
| D | mm | 27 | 27 | 34 | 38 | 40 | 46 | 52 | 57 | 110 | 110 | |
Features & Benefits:
*Automatic dual pawl braking system
*Asbestos-free friction linings / friction discs
*Industrial powder coating compliant with RoHS requirements
*1,500 cycle life test, conforming to JBT7334, EN13157, ANSI B30.16, and AS1418 standards
