Product Description

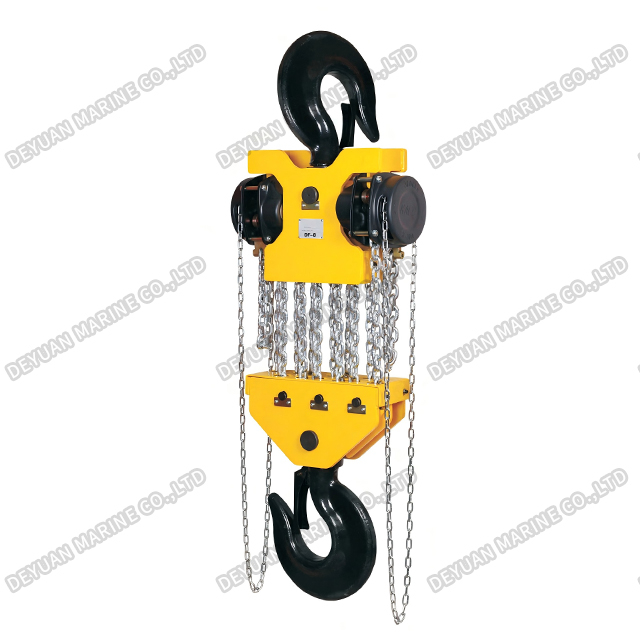

Large Tonnage Manual Chain Hoist
Product Introduction:
Our large tonnage manual chain hoist is designed for heavy industrial lifting applications requiring exceptional strength and reliability. Built with a rugged all-steel housing and heat-treated alloy steel components, this hoist delivers safe, controlled lifting for loads ranging from 10 tons up to 100 tons. The symmetrical two-stage spur gear transmission ensures smooth operation with surprisingly moderate hand pull force, despite the massive capacity. The high-strength galvanized load chain provides excellent wear resistance and corrosion protection. Precision-machined chain sprockets guarantee accurate chain engagement and prevent jamming. The upper and lower forged hooks feature safety latches and 360-degree rotation for flexible rigging. Ideal for heavy machinery installation, shipbuilding, steel mills, power plants, and large-scale construction projects where electric power may be unavailable or unsafe.

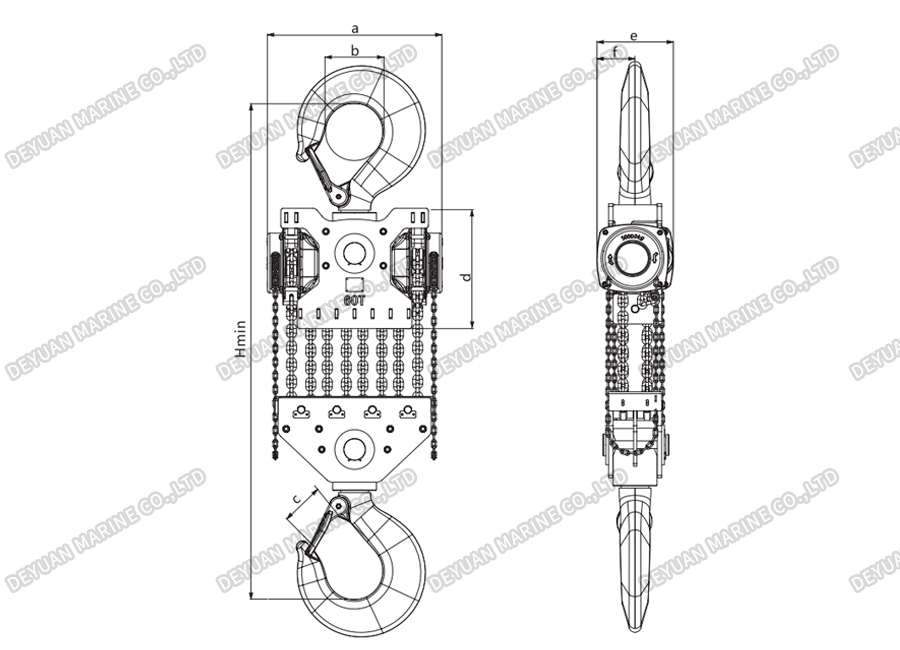

Drawing:
Product Parameters：
| Model | C-50000 | C-60000 | C-100000 | |
| Capacity | kg | 50000 | 60000 | 100000 |
| Standard lift | m | 3 | 3 | 3 |
| Strands of load chain | 12 | 14 | 32 | |
| Effort required to lift rated load | N | 390 | 400 | 400 |
| Running test load | KN | 75000 | 90000 | 150000 |
| Diameter of load chain | mm | 11.2x31 | 11.2x31 | 11.2x31 |
| Size of hand chain | mm | 5x25 | 5×25 | 5x25 |
| Net weight | kg | 425 | 525 | 1541 |
| Gross weight | kg | 465 | 550 | 1650 |
| Extra weight per metre of Extra lift | kg | 32 | 37 | 88.2 |
| Dimensions(mm) | a | 570 | 638 | 1129 |
| b | 190 | 190 | 290 | |
| c | 125 | 135 | 250 | |
| d | 445 | 453 | 453 | |
| e | 279 | 279 | 379 | |
| f | 140 | 138 | 138 | |
| Hmin | 1500 | 1545 | 1921 |
