Explosion-Proof Low Headroom Traveling Hand Chain Hoist
Product Introduction:
The Explosion-Proof Low Headroom Traveling Hand Chain Hoist is a compact manual lifting device built for hazardous areas with limited vertical space. It combines three key features: explosion-proof construction, low headroom design, and a built-in traveling trolley.
Made from copper alloy (aluminum bronze and beryllium bronze), this hoist prevents sparks from friction or impact. The housing uses H62 copper alloy, and the gears are heat-treated for high wear resistance.
Product Parameters：

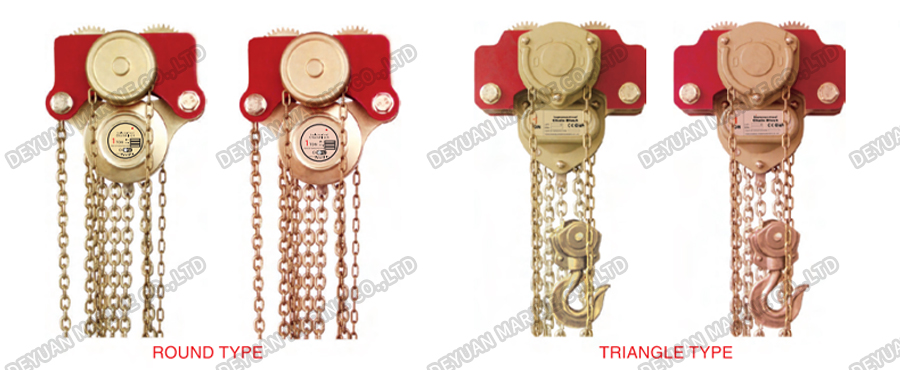

| ROUND TYPE | TRIANGLE TYPE | ||||
| Capacity (T) | I-beam Width(mm) | Weight (kg) | Capacity (T) | I-beam Width(mm) | Weight (kg) |
| 0.5 | 68-94 | 21.5 | 0.5 | 68-94 | 21.5 |
| 1 | 68-100 | 27.5 | 1 | 68-100 | 27.5 |
| 2 | 94-124 | 40 | 2 | 94-124 | 40 |
| 3 | 116-140 | 42 | 3 | 116-140 | 42 |
Key Features:
*No sparks – Copper alloy parts stop fire risks.
*Low headroom – Fits tight spaces with low ceiling.
*Traveling type – Moves along I-beam rails via push-type trolley.
*Manual power – No electric parts, safe for gas and dust zones.
*Strong gears – Heat-treated for long life.
*Light weight – Easy to carry and use.
Uses:
*Oil refineries and gas plants
*Paint shops and chemical plants
*Coal mines and grain silos
*Ship engine rooms with low height
