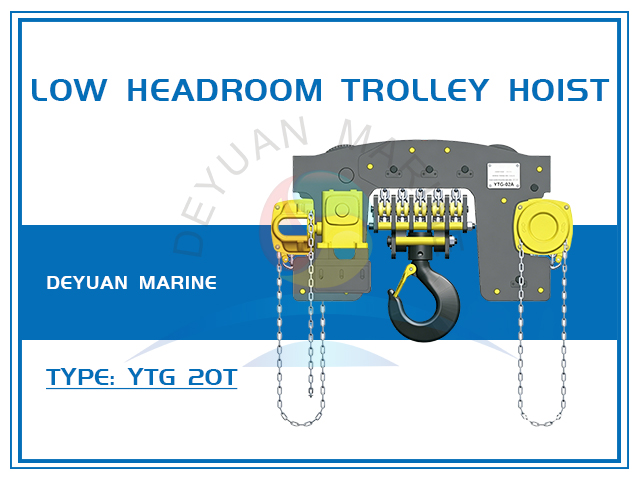

HSZ-YTG 20T Low Headroom Trolley Hoist
Product Introduction:
HSZ-YTG 20T Low Headroom Trolley Hoist is a heavy-duty manual lifting solution designed for applications where headroom is severely limited. With a rated capacity of 20 tons, this unit combines a hand chain hoist and a manual trolley into one compact, low-profile assembly, making it ideal for use in shipyards, marine engine rooms, low-ceiling workshops, containers, and underground sites.
Key Features:
1.High Capacity, Low Clearance – Lifts up to 20 tons while requiring minimal vertical space, thanks to its optimized low headroom design.
2.Integrated Trolley – The built-in manual trolley runs smoothly on I-beam rails, allowing lateral movement of heavy loads with ease.
3.Durable Construction – Made from high-strength alloy steel with heat-treated gears and hooks for safety and longevity.
4.Corrosion Resistant – Suitable for marine environments with optional galvanized or painted surface treatment.
5.Easy Operation – Two manually operated hand chains: one for lifting/lowering, the other for trolley travel along the beam.
6.Adjustable Beam Width – The trolley can be adjusted to fit different flange widths of standard I-beams.
7.Safety Guaranteed – Equipped with overload protection, automatic brake system, and double-pawl clutch for secure holding.

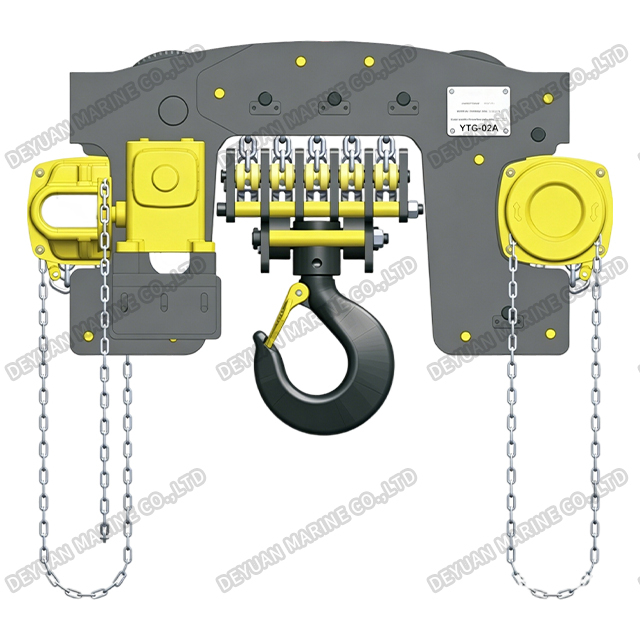

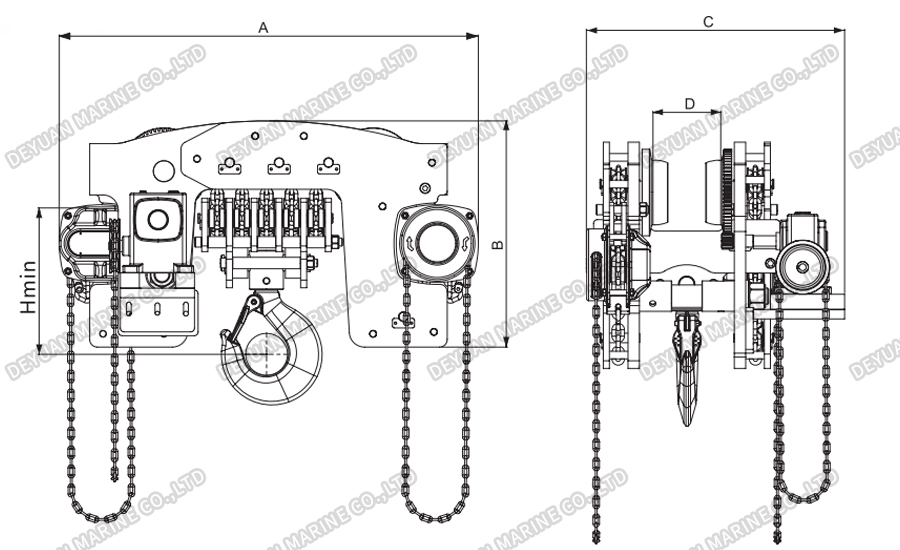

Drawing:
Product Parameters：
| Model | YTG-20 | |
| Capacity | tons | 20.0 |
| Standard lift | m | 3 |
| Effort required to lift rated load | N | 390 |
| Running test load | KN | 25000 |
| Diameter of load chain | mm | 10x30 |
| Size of hand chain | mm | 5x15 |
| Extra weight per metre of Extra lift | kg | 17.6 |
| I-beam Width | mm | 85-305 |
| Dimensions(mm) | A | 1102 |
| B | 595 | |
| C | 679 | |
| D | 178 | |
| Hmin | 385 |
Typical Applications:
*Low-ceiling factories and warehouses
*Ship engine rooms and cargo holds
*Container and trailer loading/unloading
*Underground mines and tunnels
*Maintenance of large machinery in confined spaces
