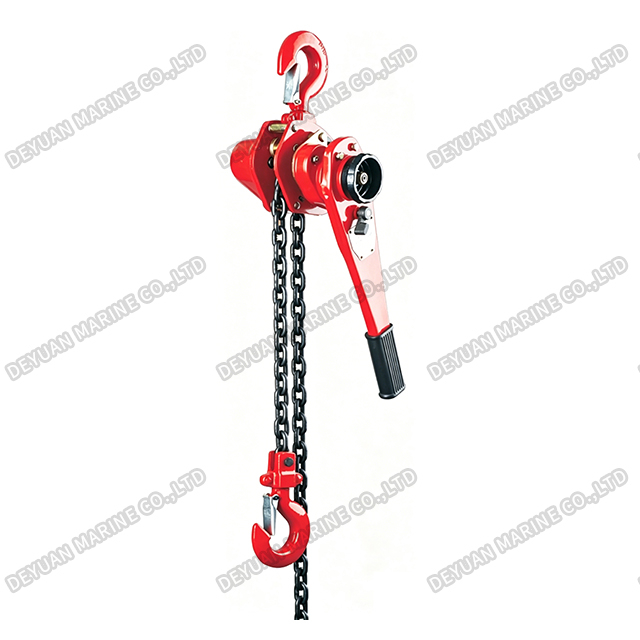

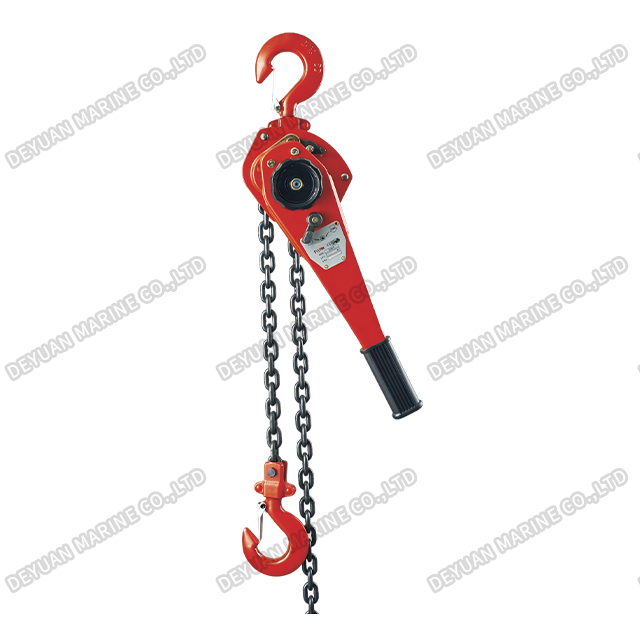

VL Manual Lever Hoist
Product Introduction:
The VL Manual Lever Hoist is a light, compact, multi-purpose manual lifting and pulling tool. It is widely used in electric power, mining, shipbuilding, construction, transport, and telecom for equipment installation, load lifting, component pulling, loose part binding, line tensioning, and welding alignment. The VL lever hoist excels in narrow work spaces, high-altitude outdoor work, and pulling at various angles. It is an ideal tool for lifting and moving heavy loads.

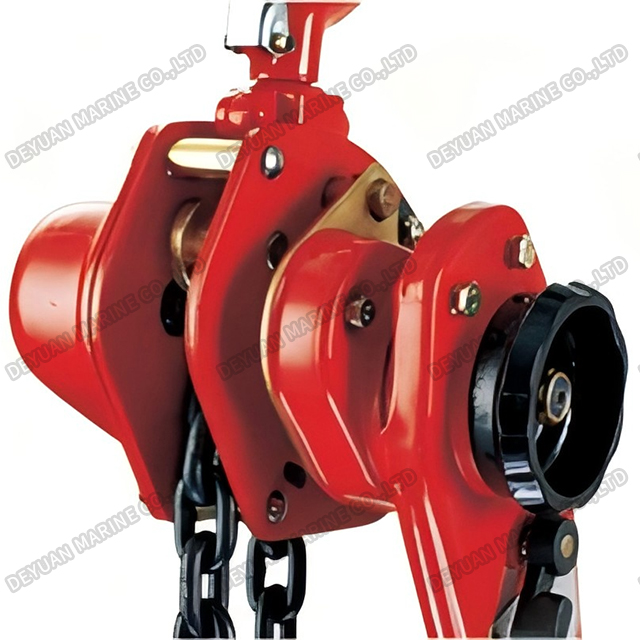

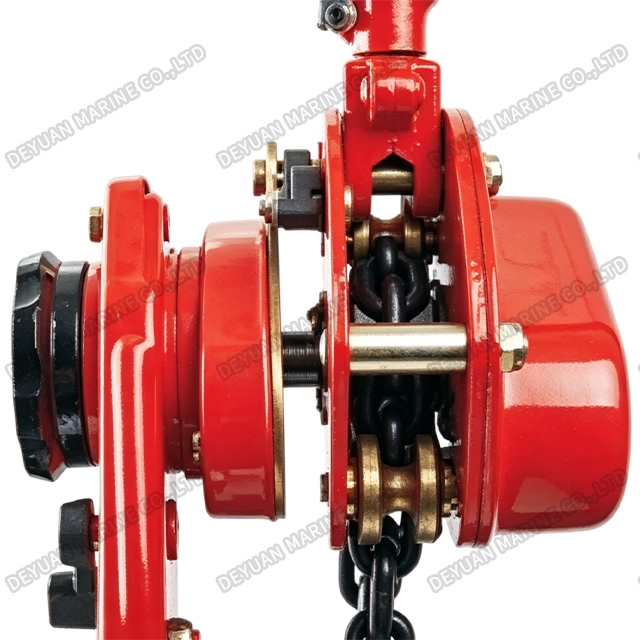

Features & Advantages:
*Automatic dual pawl brake system
*Asbestos-free friction disc
*Industrial powder coating meets RoHS requirements
*1,500 cycle lift test – complies with JBT7334, ANSI B30.16, and AS1418 standards
Product Parameters：
| Capacity | tons | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Standard lift | m | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 3.75 | 7.5 | 11.2 | 15 | 22.5 | 30 | 45 | 75 | 112.5 |
| Effort required to lift rated load | N | 250 | 340 | 140 | 185 | 230 | 251 | 285 | 385 | 390 |
| Strands of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Diameter of load chain | mm | 4 | 5 | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 |
| Dimensions(mm) | A | 92 | 105 | 153 | 153 | 166 | 175 | 195 | 195 | 195 |
| B | 72 | 78 | 86 | 96 | 100 | 105 | 112 | 112 | 112 | |
| C | 85 | 80 | 130 | 130 | 150 | 160 | 202 | 242 | 312 | |
| D | 30 | 35 | 38 | 38 | 48 | 48 | 50 | 65 | 81 | |
| H | 230 | 260 | 295 | 295 | 335 | 385 | 450 | 550 | 660 | |
| L | 160 | 300 | 315 | 315 | 365 | 368 | 365 | 365 | 365 | |
| K | 25 | 25 | 27 | 27 | 36 | 36 | 38 | 48 | 54 | |
| Net weight | kg | 1.8 | 4 | 7.5 | 7.5 | 9.5 | 15.5 | 16.5 | 27 | 40 |
| Packing measurement | cm | 22x18x11 | 37x12x11 | 33x18x18.5 | 33x16x13 | 45.5×20x20.5 | 45.5×20x20.5 | 48x22x23 | 50.5x23x23 | 48.5X32.5X25 |
| Extra weight per metre of Extralift kg | kg | 0.41 | 0.52 | 0.8 | 0.8 | 1.1 | 1.4 | 1.8 | 3.6 | 5.4 |

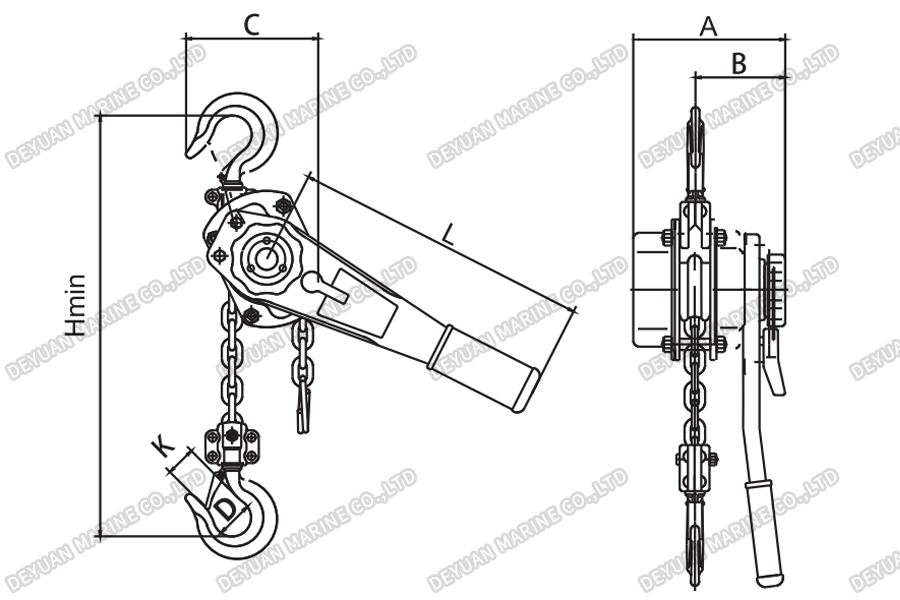

Drawing:
