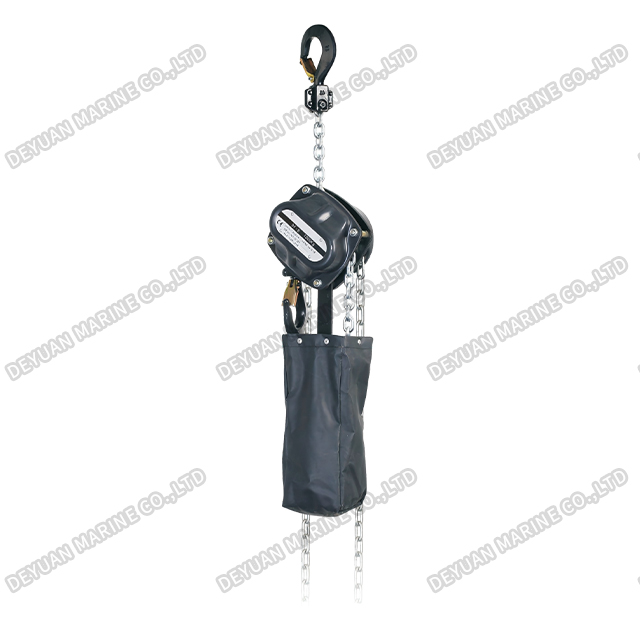

HSZ-DF Manual Chain Hoist For Stage Use
Product Introduction:
The stage manual chain hoist features a more rational mechanism, compact size, and light weight. It is a widely used, portable manual lifting device. This hand chain hoist, designed for lifting stage lighting rigs, can be used in industrial, agricultural, construction, touring stage productions, mining, and other applications, including machinery installation, cargo lifting, and vehicle loading and unloading. It is especially suitable for outdoor operations and locations without a power supply.
The stage manual chain hoist has a rated load capacity from 500 kg to 2000 kg, with a black housing, specifically designed for the entertainment industry. The hoist offers easy operation, high efficiency, and light hand pull force. The galvanized chain effectively prevents rust. With a simple design, low headroom, and lightweight steel construction, it can be operated easily even in confined spaces. The guide groove in the hand wheel cover minimizes chain jamming and slipping. The upper and lower forged hooks are equipped with safety latches to prevent load slippage, and the 360-degree rotating hook provides convenient operation.

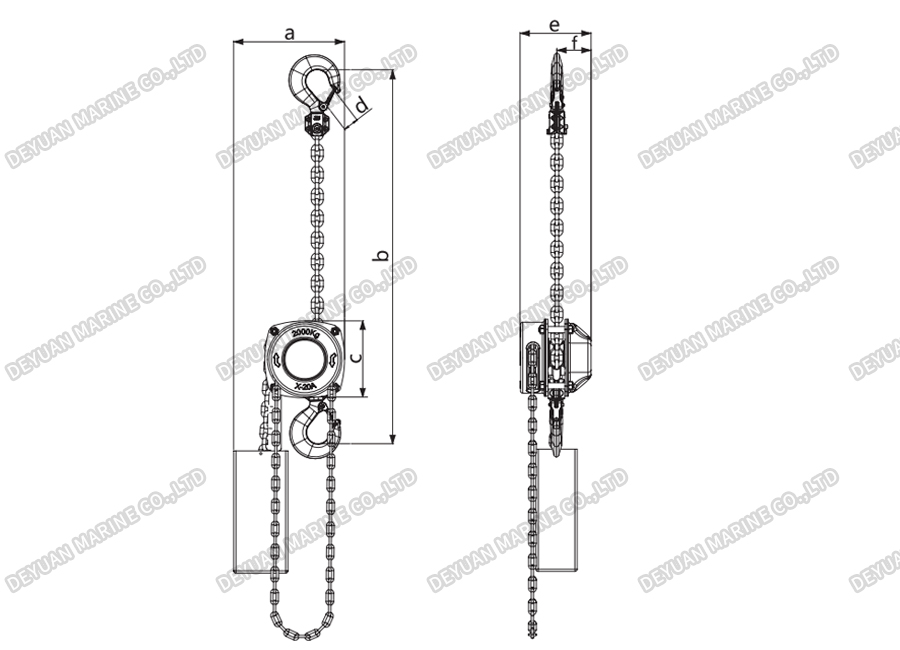

Drawing:
Product Parameters：
| Model | DF-500 | DF-1000 | DF-2000 | DF-3000 | |
| Capacity | kg | 500 | 1000 | 2000 | 3000 |
| Standard lift | m | 3 | 3 | 3 | 3 |
| Strands of load chain | 1 | 1 | 1 | 1 | |
| Effort required to lift rated load | N | 240 | 305 | 340 | 370 |
| Running test load | KN | 750 | 1500 | 3000 | 4500 |
| Diameter of load chain | mm | 5x15 | 6x18 | 8×24 | 10x30 |
| Size of hand chain | mm | 5x25 | 5x25 | 5×25 | 5x25 |
| Net weight | kg | 6.7 | 12 | 18 | 27 |
| Gross weight | kg | 7 | 12.5 | 19.6 | 28 |
| Extra weight per metre of Extra lift | kg | 0.9 | 1.67 | 2.26 | 2.26 |
| Dimensions(mm) | a | 152 | 182 | 206 | 246 |
| b | 34 | 40 | 52 | 62 | |
| c | 118 | 145 | 170 | 204 | |
| d | 31 | 25 | 40 | 45 | |
| e | 119 | 145 | 157 | 107 | |
| f | 65 | 79 | 81 | 83 | |
| Hmin | 311 | 361 | 413 | 510 |
Stage Manual Chain Hoist – Advantages:
1.All components are manufactured with high-quality materials and feature additional coating and painting processes to enhance corrosion resistance.
2.The rugged all-metal housing effectively protects the internal mechanism from damage even under harsh conditions.
3.The chain guide mechanism and gear transmission are both equipped with protective covers to safeguard these critical components and adapt to different operating environments.
4.The load chain sprocket is made of hardened material and precision-machined to ensure smooth and accurate chain movement.
5.Extremely low headroom maximizes space utilization and increases effective lifting distance.
6.The surface-galvanized alloy steel load chain, perfectly matched with the hoist body, ensures stable and precise operation.
7.The upper and lower hooks are made of anti-aging, high-toughness alloy steel. In the event of an overload, they will first deform rather than suddenly fracture, ensuring user safety.
