Product Description
Mini Manual Lever Hoist
Product Introduction:
The Mini Manual Lever Hoist is a highly efficient and multi-purpose lifting tool. It is widely used in factories, power plants, telecommunications, laboratories, transportation, home installation, machinery lifting, cargo lifting, cargo pulling, and cargo fastening.
Features & Advantages:
*Aluminum structure – Light weight
*Automatic dual pawl brake system
*Asbestos-free friction disc
*One-step freewheel operation
*1,500 cycle life test – Complies with JBT7334, EN13157, ANSI B30.16, and AS1418 standards
Product Parameters：
| Model | KX025 | KX050 | KX075 | KX150 | |
| Capacity | tons | 0.25 | 0.5 | 0.75 | 1.5 |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 750 | 750 | 1125 | 2250 |
| Effort required to lift rated load | N | 240 | 240 | 290 | 320 |
| Strands of load chain | 1 | 1 | 1 | 1 | |
| Diameter of load chain | mm | 4.3 | 4.3 | 5 | 7.1 |
| Dimensions(mm) | A | 100 | 100 | 105 | 122 |
| B | 81 | 81 | 92 | 109 | |
| C | 250 | 250 | 260 | 330 | |
| D | 160 | 160 | 180 | 220 | |
| E | 62.5 | 62.5 | 64 | 68.5 | |
| F | 42 | 42 | 42 | 52 | |
| G | 24.5 | 24.5 | 28.5 | 35 | |
| S | 34.5 | 34.5 | 35.5 | 42.5 | |
| T | 12 | 12 | 14 | 21.5 | |
| Net weight | kg | 2.5 | 2.5 | 3.4 | 6.27 |
| Extra weight per metre of Extra lift | kg | 0.37 | 0.37 | 0.54 | 1.1 |

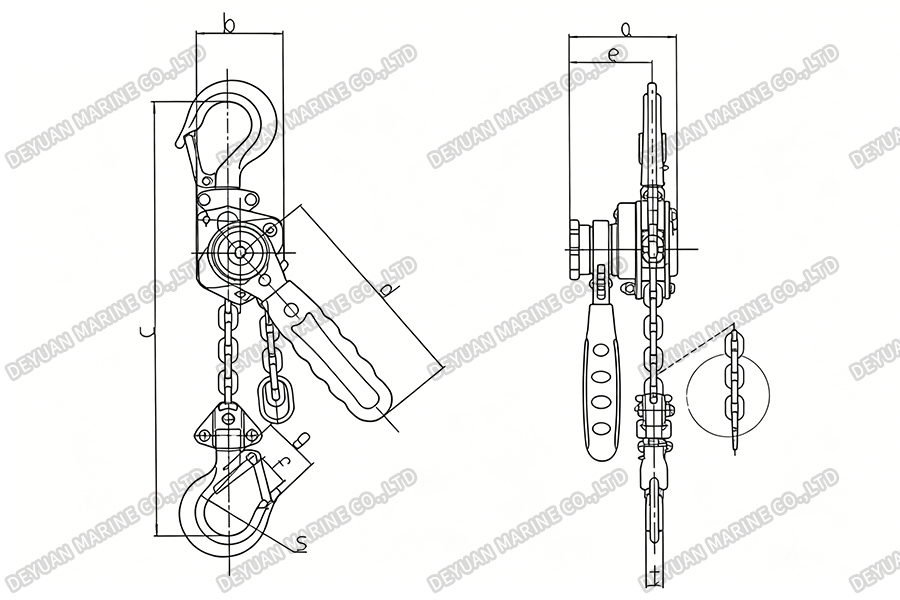

Drawing:
