Product Description
Aluminum Alloy Manual Lever Hoist
Product Introduction:
The hoist is made of high-strength magnesium-aluminum alloy, and the chain is made of high-strength special alloy steel. The ring chain lever hoist is an aluminum alloy ring chain lever hoist, also known as a chain tensioner or hand chain tensioner. The main body is made of Japanese imported aluminum alloy.
The aluminum alloy ring chain lever hoist has an attractive appearance and greatly reduces its own weight, making it easy to carry. It is mainly used for lifting and pulling. Like other lever hoists, it offers excellent performance and reliable operation, and can still be used when no power supply is available.
Product Parameters：
| Model No. | HSH-3A | HSH-6A | HSH-10A | HSH-12A | |
| Capacity | t | 3 | 6 | 10 | 12 |
| Standard Pull | m | 1.5 | 1.5 | 1.5 | 1.5 |
| Proof test load | KN | 36.5 | 73.5 | 123 | 147 |
| Effort required to lift rated load | N | 300/250 | 310/250 | 300/250 | 310/250 |
| Diameter of load Chain | mm | 8.0x1 | 8.0×2 | 7.1x4 | 8.0x4 |
| The distance between the two hooks H | mm | 420 | 630 | 660 | 660 |
| Dimensions(mm) | A | 129 | 175 | 275 | 325 |
| B | 163 | 193 | 163 | 193 | |
| C | 113 | 119 | 113 | 119 | |
| D | 45 | 55 | 65 | 85 | |
| K | 31 | 35 | 46 | 55 | |
| L | 420/550 | 420/550 | 420/550 | 420/550 | |
| Hmin | 300 | 510 | 545 | 640 | |
| Net weight | kg | 9.5 | 14 | 32 | 40 |
| Extra weight per meter of extra lift | kg | 1.4 | 2.8 | 4.4 | 6.0 |

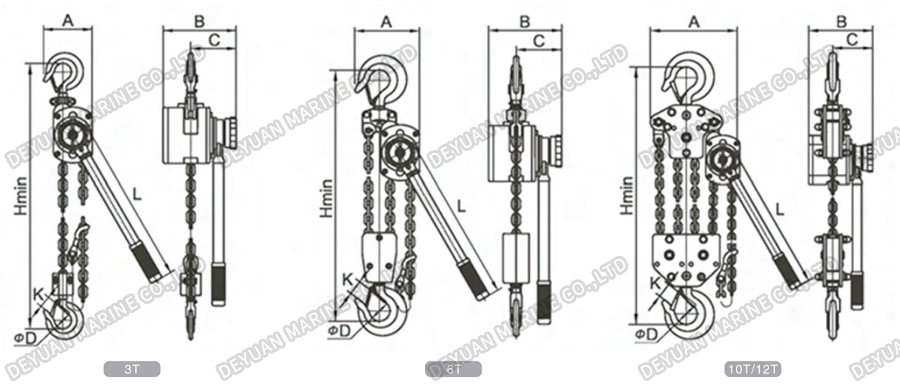

Drawing:
Advantages of Aluminum Alloy Ring Chain Lever Hoist:
1.The high-strength, high-plasticity aluminum alloy housing greatly improves product strength while keeping the dead weight light.
2.The two-speed gearing and short handle make operation more labor-saving.
3.The 360° rotatable handle provides multiple operation methods in confined spaces.
4.The freewheel chain sprocket mechanism in neutral ensures the chain passes through quickly and easily.
5.The fully enclosed, self-adjusting brake system keeps the brake clean and dry while effectively eliminating shock, making operation safer and more reliable. It allows micro-control of load positioning.
Application Fields of Aluminum Alloy Ring Chain Lever Hoist:
The product is used in machinery and equipment for infrastructure and construction projects such as electric power, shipbuilding, automobile manufacturing, construction, highways, bridges, metallurgy, mining, slope and tunnel works, shaft treatment and protection.
