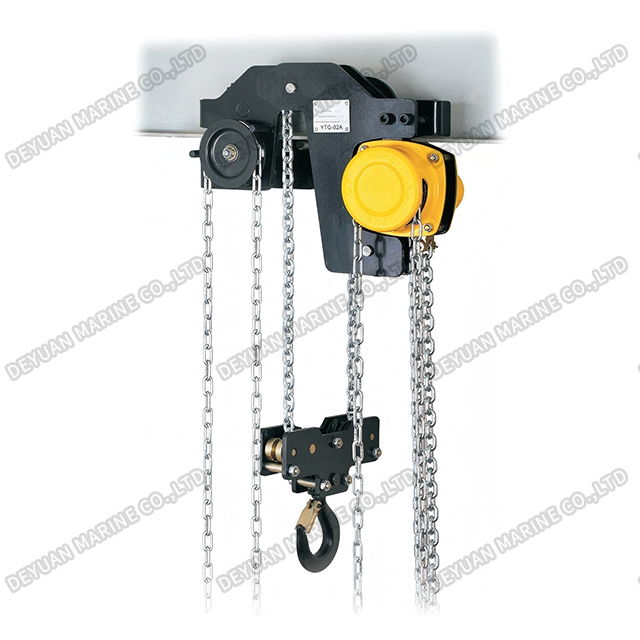

HSZ-YTG Low Headroom Trolley Hoist
Product Introduction:
The HSZ-YTG Low Headroom Trolley Hoist is specifically engineered for lifting operations where vertical space is severely limited. This integrated unit combines a high-quality manual chain hoist with a smooth-rolling tandem trolley, designed to operate on I-beams with minimal clearance between the load hook and the beam. The ultra-compact, low-profile housing maximizes effective lifting height, allowing users to raise loads higher in low-ceiling environments such as ship decks, factory mezzanines, warehouses, and underground facilities. Constructed with rugged all-steel components and a corrosion-resistant finish, the HSZ-YTG delivers reliable performance under demanding conditions. The precision trolley wheels provide effortless horizontal travel along the beam, while the hoist features light hand pull force and smooth gear operation for precise load positioning. Ideal for maintenance bays, assembly lines, and any location with headroom constraints.

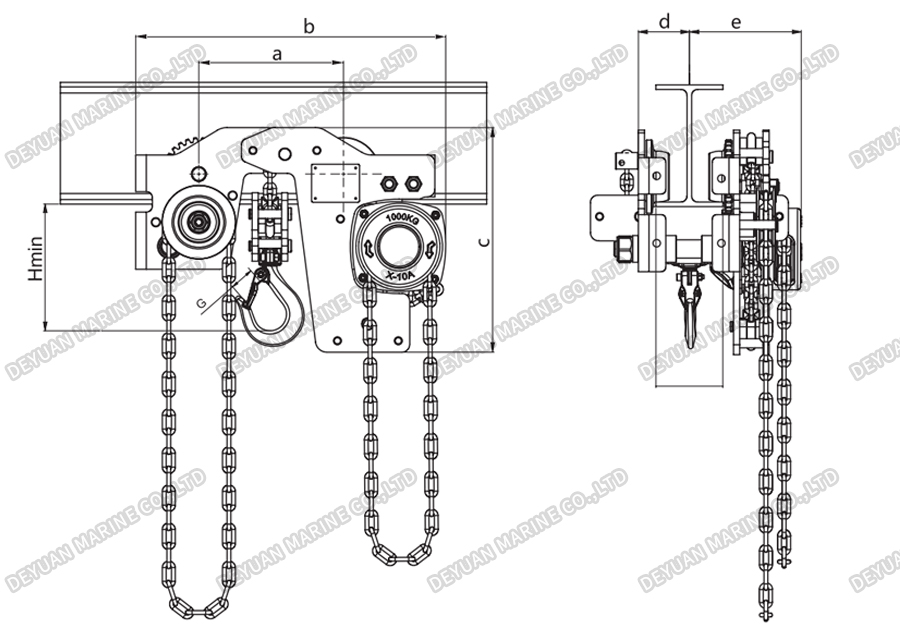

Drawing:
Product Parameters：
| Model | YTG-010 | YTG-020 | YTG-030 | YTG-050 | YTG-10 | |
| Capacity | tons | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 |
| Standard lift | m | 3 | 3 | 3 | 3 | 3 |
| Effort required to lift rated load | N | 305 | 340 | 350 | 370 | 380 |
| Running test load | KN | 1250 | 2500 | 3750 | 6250 | 12500 |
| Diameter of load chain | mm | 5x15 | 6x18 | 8×24 | 10x30 | 10x30 |
| Size of hand chain | mm | 5x15 | 5x15 | 5×15 | 5x15 | 5x15 |
| Extra weight per metre of Extra lift | kg | 1.08 | 1.54 | 2.72 | 4.4 | 8.8 |
| Min.Headroom Hmin | mm | 166 | 192 | 217 | 290 | 303 |
| I-beam Width | mm | 50-305 | 74-305 | 85-305 | 85-305 | 85-305 |
| Dimensions(mm) | a | 190 | 215 | 255 | 295 | 346 |
| b | 407 | 471 | 552 | 641 | 693 | |
| c | 295 | 325 | 410 | 490 | 500 | |
| d | 67 | 70 | 91 | 134 | 257 | |
| e | 147 | 170 | 197 | 248 | 300 | |
| f | 88 | 88 | 200 | 200 | 300 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
