Product Description

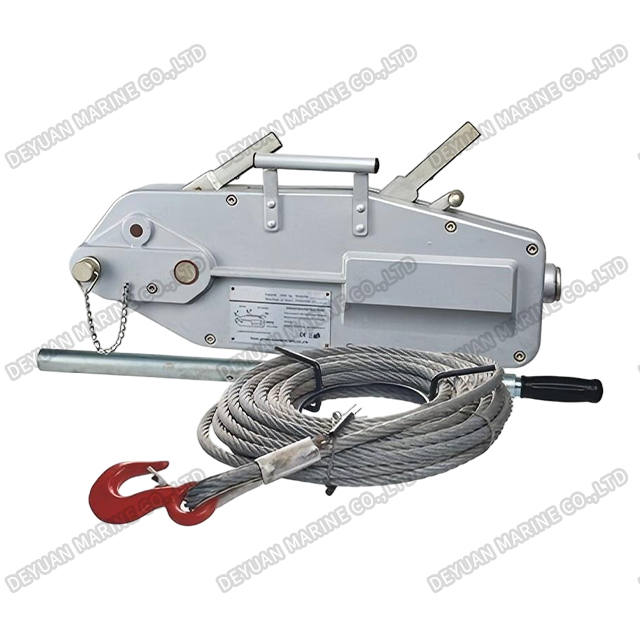

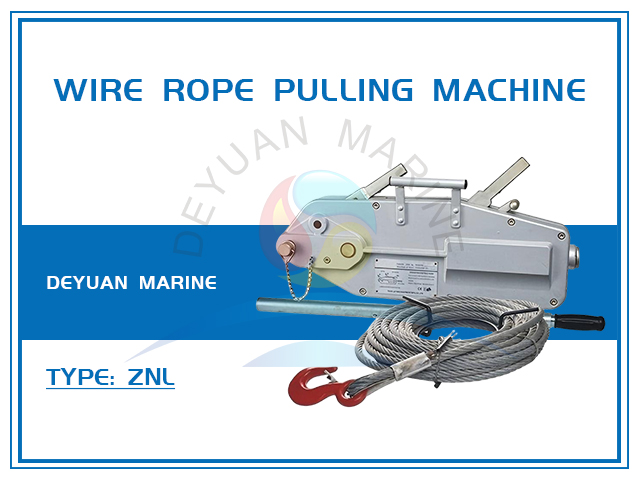

ZNL Wire Rope Pulling Machine
Product Introduction:
The main components of the wire rope hand lever hoist are manufactured using high-quality steel. In terms of design and usage, it features the following characteristics: safety and reliability, ease of use, reasonable structure, attractive appearance, simple maintenance, long service life, and low hand lever effort. It is innovative, efficient, safe, and durable, with three major functions: lifting, pulling, and tensioning. The overall structure of the machine is reasonably designed with a high safety factor and long service life, making it particularly suitable for use in the field without a power source.
The housing of the wire rope hand lever hoist is made of high-strength, high-quality aluminum alloy through die-casting. The matching wire rope has exceptionally high breaking strength and wear resistance. The length of the wire rope can be configured according to customer requirements. The main capacity ratings available are 800 kg, 1600 kg, and 3200 kg.
This hoist is suitable for various applications such as factories, mines, construction sites, docks, and transportation. It is an ideal tool for equipment installation, cargo lifting, object securing, lashing, and pulling. Its advantages are particularly evident in pulling at any angle, as well as in confined spaces, outdoor operations, and situations without a power supply.
Product Parameters：
| Model | NHSS0.8 | NHSS1.6 | NHSS3.2 | NHSS5.4 | |
| Rated Capacity | tons | 0.8 | 1.6 | 3.2 | 5.4 |
| Pulling Capacity | tons | 1.2 | 2.4 | 4.8 | 8.1 |
| Rated Forward Travel | mm | ≥52 | ≥55 | ≥28 | ≥25 |
| Efficient Length of Forward handle | mm | 825 | 1200 | 1200 | 1200 |
| Drive Step | 1 | 1 | 2 | 2 | |
| Rope Diameter | mm | 8.3 | 11 | 16 | 20 |
| Standard Length of Rope | m | 20 | 20 | 20 | 20 |
| Net Weight | kg | 16 | 24 | 32 | 90 |
| Rated Forward Hand Power | N | ≤341 | ≤400 | ≤438 | ≤550 |
| Max.Overall Size | mm | 426x64×238 | 545×97×284 | 660x98x325 | 930x390x150 |

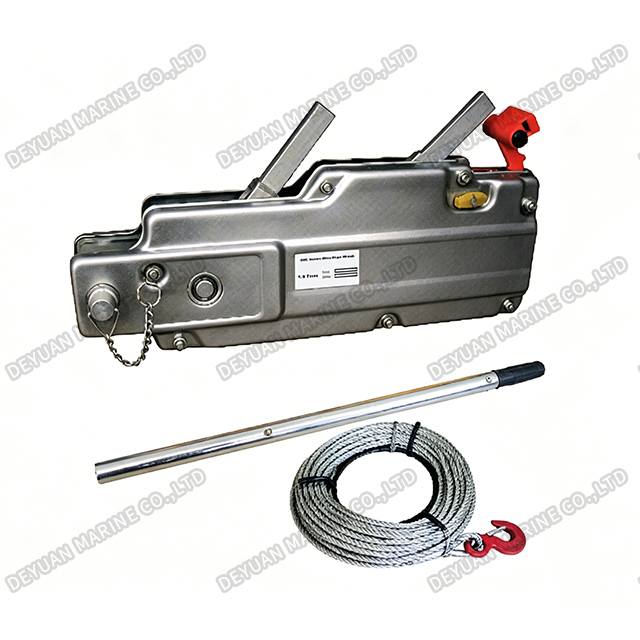

Steel Housing:
| Model | NHSS0.8 | NHSS1.0 | NHSS1.6 | NHSS3.2 | |
| Rated Capacity | tons | 0.8 | 1.0 | 1.6 | 3.2 |
| Pulling Capacity | tons | 1.2 | 1.5 | 2.4 | 4.8 |
| Rated Forward Travel | mm | ≥52 | ≥52 | ≥55 | ≥28 |
| Efficient Length of Forward handle | mm | 800 | 800 | 1200 | 1200 |
| Drive Step | 1 | 1 | 1 | 2 | |
| Rope Diameter | mm | 8 | 8 | 11 | 16 |
| Standard Length of Rope | m | 20 | 20 | 20 | 20 |
| Net Weight | kg | 18 | 18 | 30 | 56 |
| Rated Forward Hand Power | N | ≤343 | ≤343 | ≤441 | ≤441 |
| Max.Overall Size | mm | 440x63x265 | 440x63x265 | 550x77×300 | 690x91×350 |
Heavy-Duty:
| Model | ST3.2 | ST5.4 | |
| Rated Capacity | tons | 3.2 | 5.4 |
| Pulling Capacity | tons | 4.8 | 8.1 |
| Rated Forward Travel | mm | ≥22 | ≥35 |
| Efficient Length of Forward handle | mm | 800-1200 | 800-1200 |
| Drive Step | 2 | 2 | |
| Rope Diameter | mm | 16 | 20 |
| Standard Length of Rope | m | 20 | 20 |
| Net Weight | kg | 56 | 90 |
| Rated Forward Hand Power | N | ≤441 | ≤750 |
| Max.Overall Size | mm | 700×270x140 | 940x380x180 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
