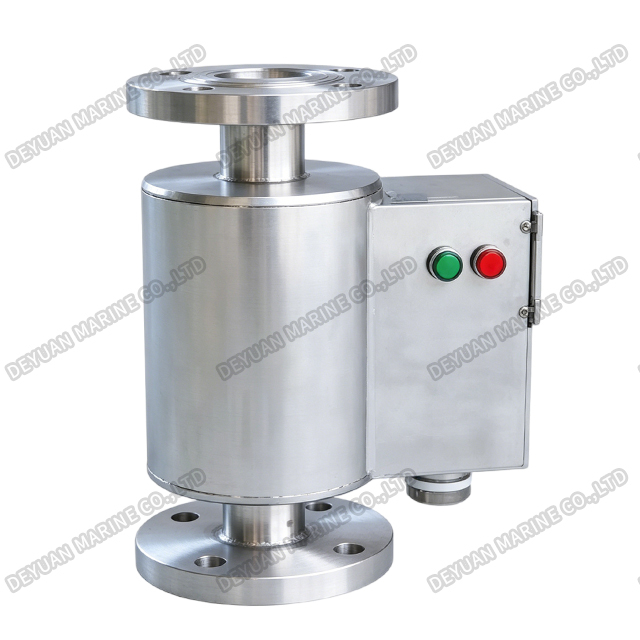

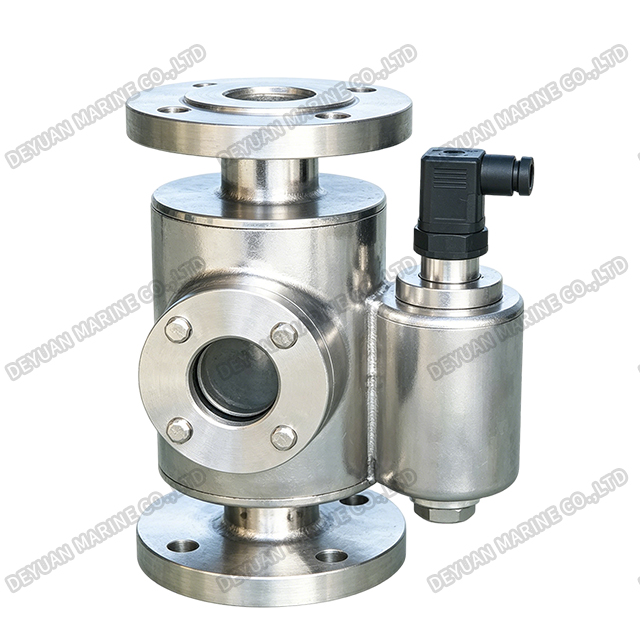

UQK Type Overflow Observing Annunciator
Product Introduction:
UQK type overflow observing annunciator is a new type overflow observing alarm device composed of indiction and level alarm. It can observe liquid and output level alarm, and has characteristics of compact structure, reliable performance, safety and practicality etc. It can be used in ship and other industrial instrument to monitor, alarm and control the safe run of liquid saving and supplying instrument’s overfall pipeline.
Main Technical Specification:
| DN | 32 ~250 mm |
| Contact capacity | AC 220V 1.0A |
| Contact type | SPDT |
| PN | 0.2 MPa |
| Medium temperature | ≤ 100 ℃ |
| Medium gravity | ≥ 0.80 |
| Medium viscosity | ≤ 0.02 Pa.s |
| Conn. flange | CB/T 46-2007 GB2506-2005 |
Outline Dimension:

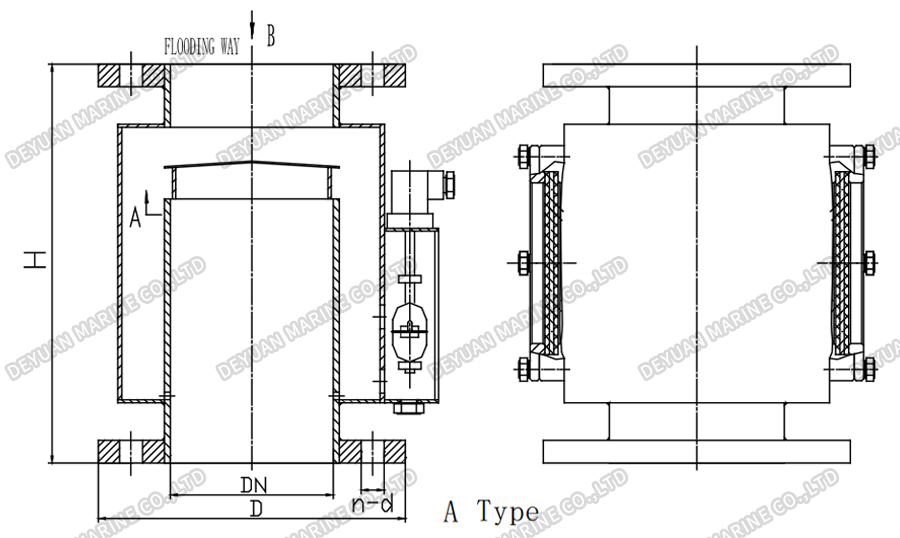

A Type Outline Dimension:
| DN | Dimension(mm) | |||||
| H | B | D | D1 | d | n | |
| 32 | 230 | 95 | 115 | 83 | 15 | 6 |
| 40 | 230 | 100 | 125 | 93 | ||
| 50 | 280 | 110 | 135 | 103 | ||
| 65 | 280 | 120 | 155 | 123 | ||
| 80 | 300 | 125 | 170 | 138 | 8 | |
| 100 | 350 | 135 | 190 | 158 | ||
| 125 | 370 | 145 | 215 | 183 | 10 | |
| 150 | 370 | 155 | 240 | 208 | 12 | |
| 200 | 370 | 190 | 295 | 264 | ||
| 250 | 370 | 225 | 365 | 327 | 17 | 14 |

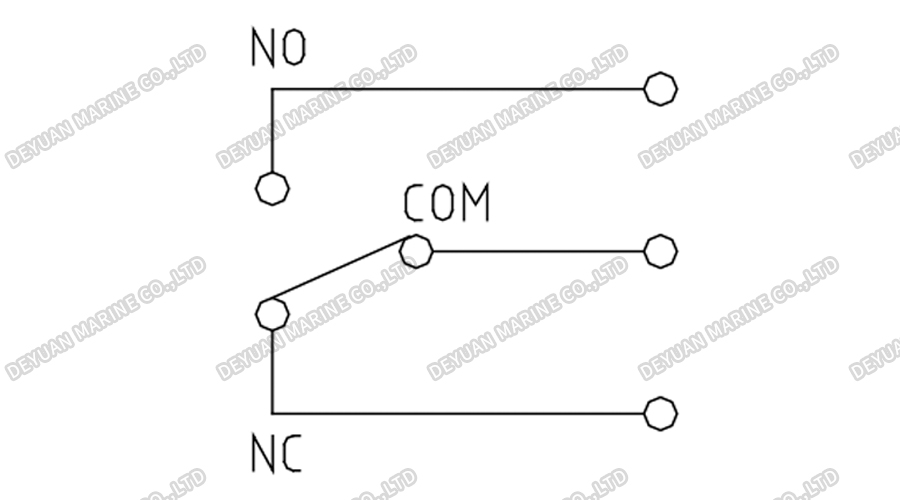

Wiring Diagram:
