Product Description

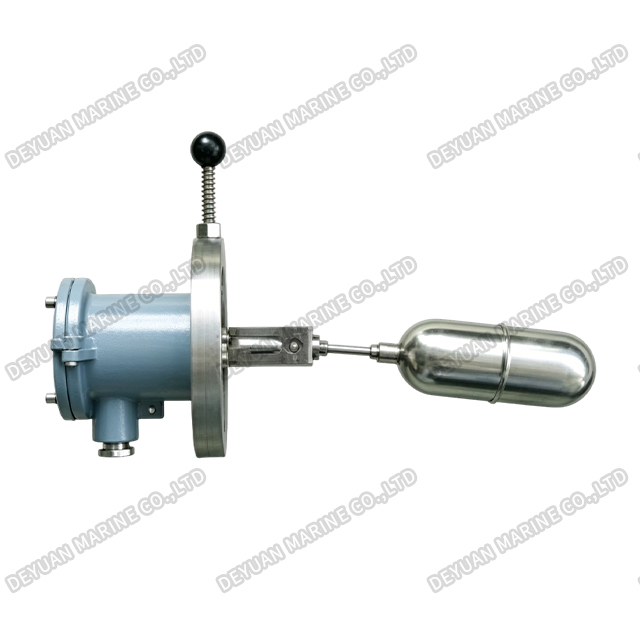

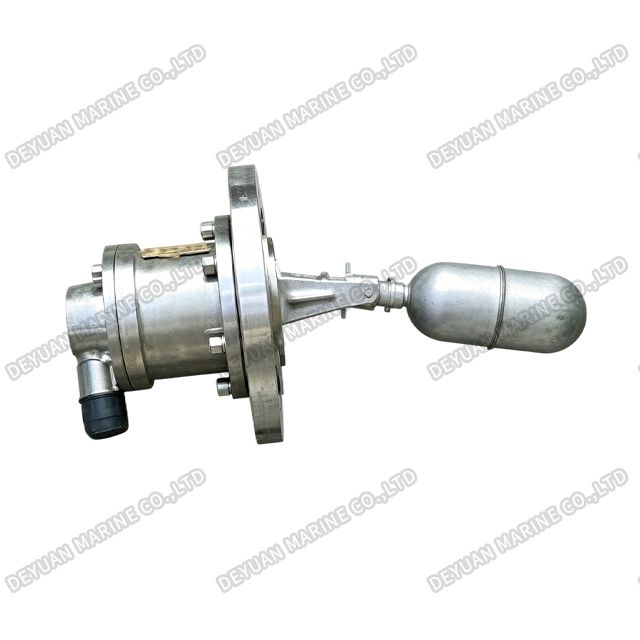

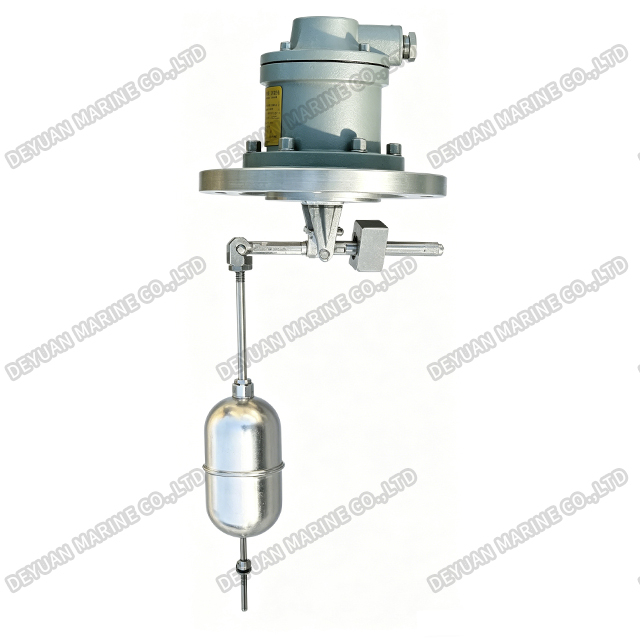

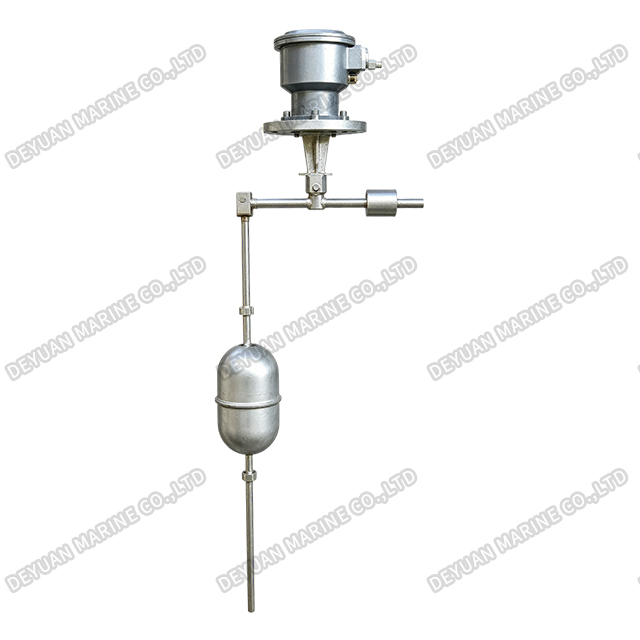

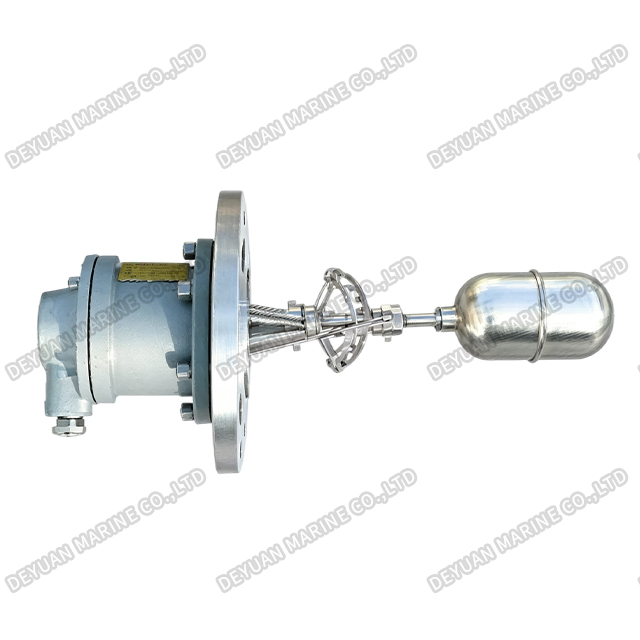

UQK-01/02/03 Marine Float Level Controller
Product Introduction:
The Marine Float Level Controller is an automatic liquid level control device designed for shipboard tanks and compartments. It operates using a sealed float that rises and falls with the liquid surface. UQK type float level controller is widly used in ship, chemical industry and other industrial equipment to control and alarm the level in tank by two position type.
Main Technical Specification:
| Model | Control range(mm) | Regulated type | Mounting position | Nominal pressure | Medium tem. | Contact capacity | Explosion proof type | Float dia.D | Protection |
| UQK-01-C | 10~30 | Fixed value & unadjustable | Horizontal mounting | ≤1MPa | ≤120℃ | SPDT AC:230V 1.5A Applicable 250VAC 10A DC:125V 0.6A 2×SPDT (Option) | Ex dIICT3~T6 ExiaIICT3~T5 | Φ 50 Φ 60 | IP66 or IP68 |
| UQK-01-C-B | |||||||||
| UQK-01-C | Top mounting | ||||||||
| UQK-02-C | 25~550 | grading & adjustable | Horizontal mounting | Φ 50 Φ 60 | |||||
| UQK-02-C-B | |||||||||
| UQK-03-C | 8~1000 | continuous &adjustable | Top mounting | Φ 76 | |||||
| UQK-03-C-B |

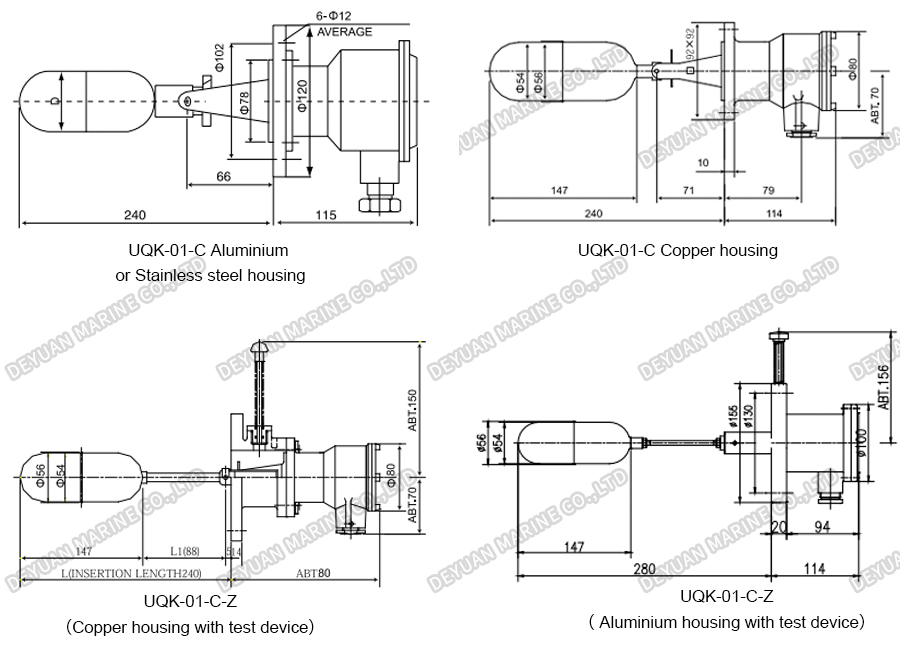

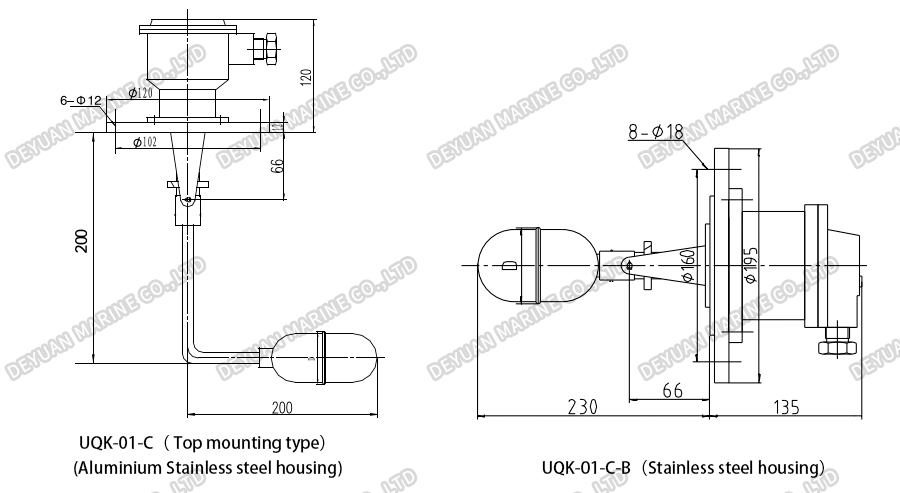

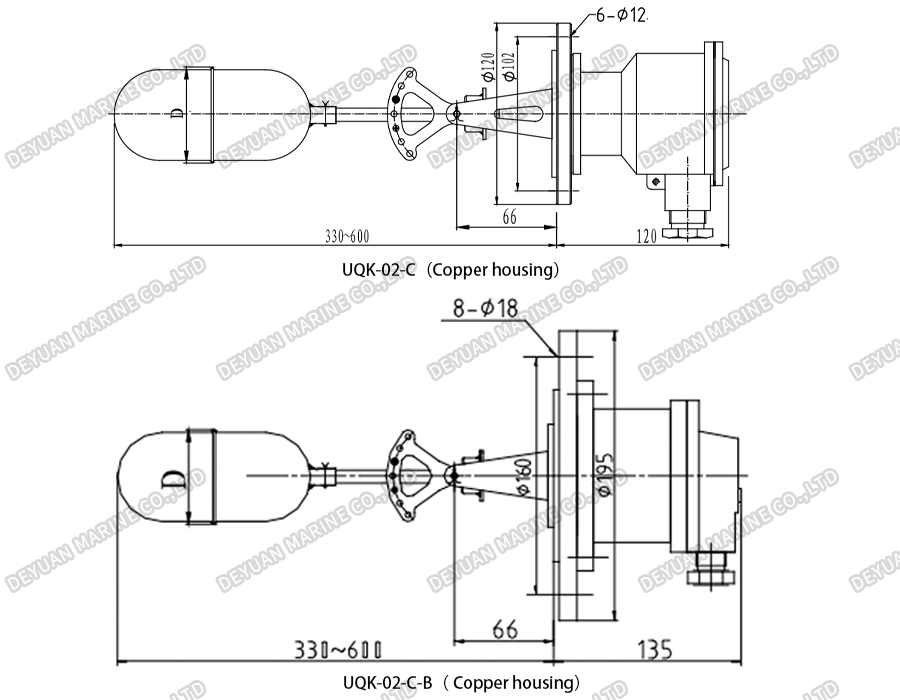

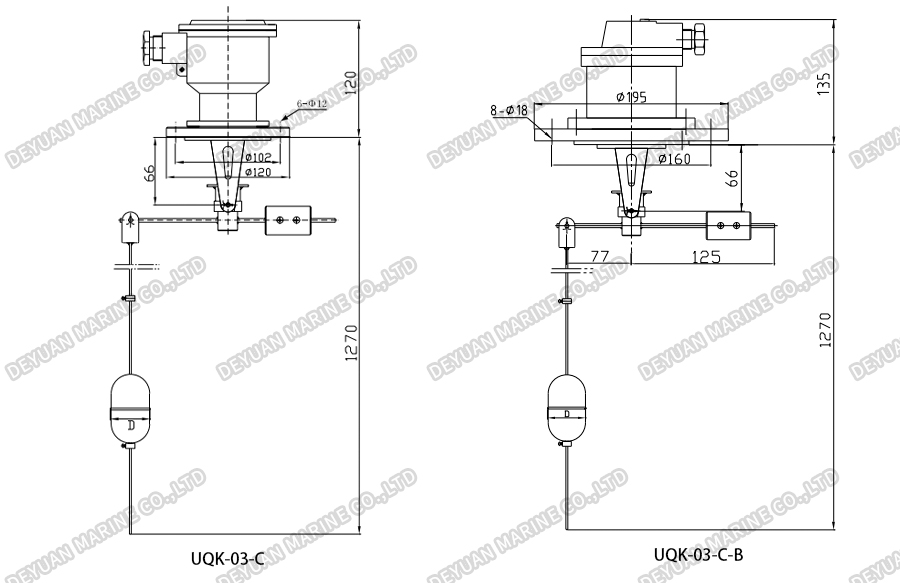

Outline Dimension:

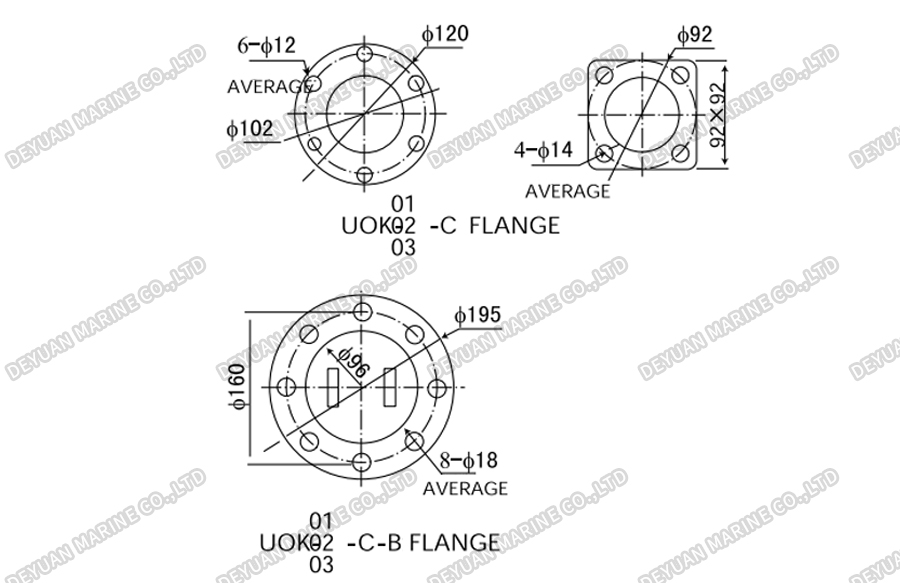

France：

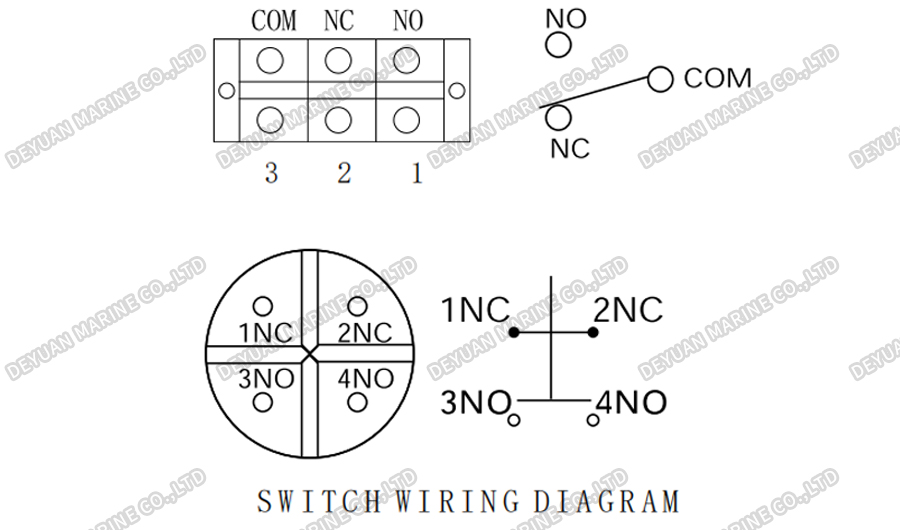

Switch Wiring Diagram：
