Product Description

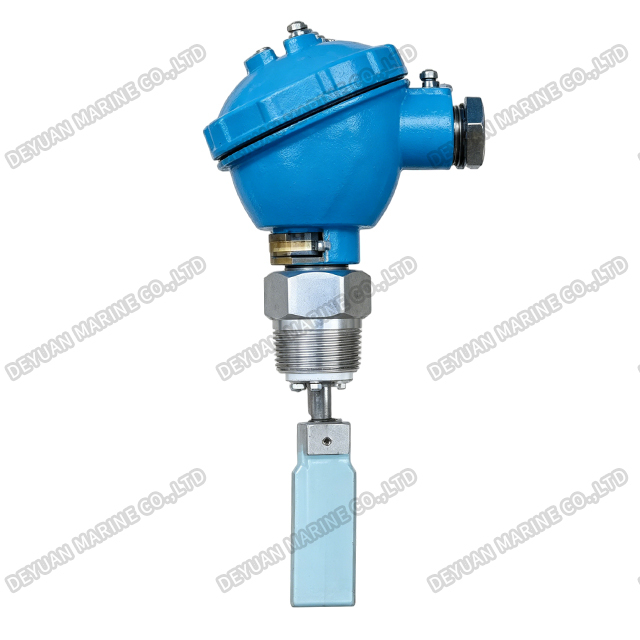

UQK Type Flow Switch
Product Introduction:
The Marine Flow Switch is a rugged, reliable device designed to monitor the flow or no-flow condition of liquids (such as fresh water, seawater, lubricating oil, fuel oil, or coolant) in marine piping systems.
UQK type flow switch makes deflection by fluid-flow pushing blade, magnetic switch is acted by magnet steel, and then output signal. It is used for monitoring liquid flow and alarm in ballast pipe and oil water pipe of ship.
Main Technical Specification:
| Applicable pipe dia. | 2” above |
| Material of blade | SUS316/ titanium alloy |
| Max. allowed pressure | 1.5MPa |
| Setting action point tolerance | ≤ ±10% |
| Repeat action error | ≤ 5% |
| Contact capacity | AC220V 0.5A |
| Contact type | SPST |
| Working temperature | 0-70℃ |
| Connection type | ZG1” / 1 NPT |
| Protection | IP56 |

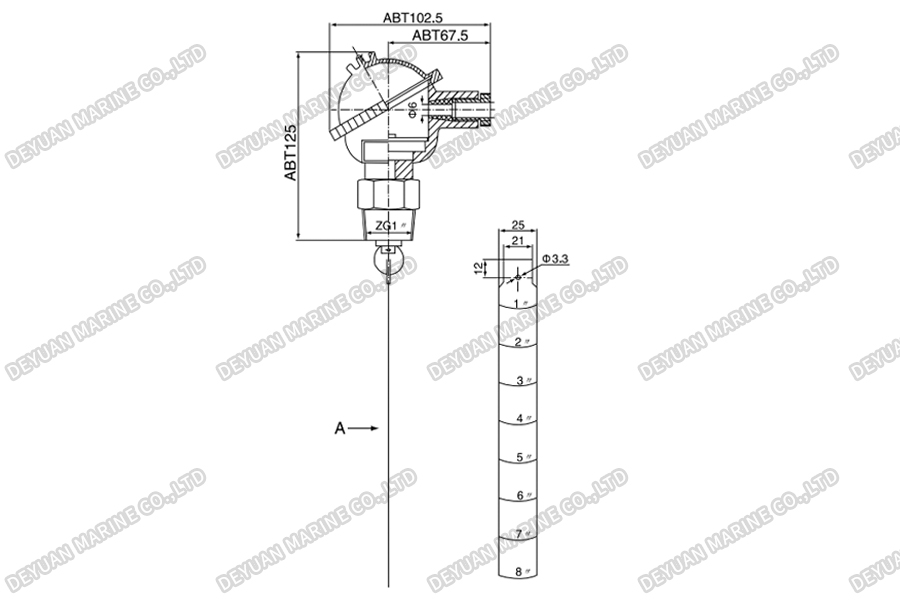

Outline Dimension:
