Product Description
Marine Boiler Level Gauge ULB-3G
Product Introduction:

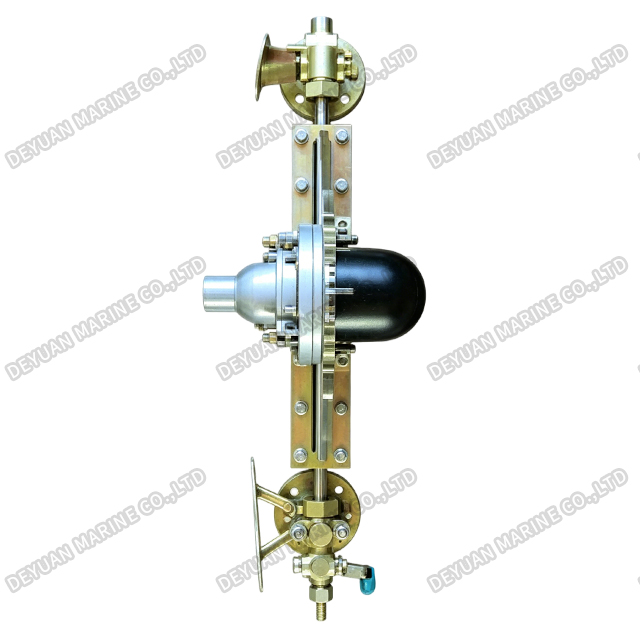

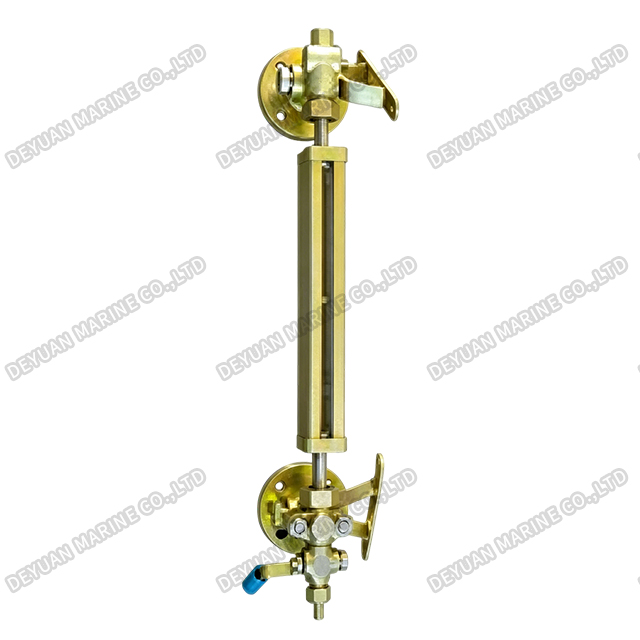

The Marine Boiler Level Gauge (Model ULB-3G) is a heavy-duty direct-reading instrument designed for reliable water level indication in marine auxiliary and exhaust gas boilers. Engineered for high-temperature and high-pressure steam applications, it features a robust flat glass design available in both reflex (bi-color) and transparent styles. The reflex type provides sharp contrast – liquid appears dark while vapor appears light – ensuring excellent visibility even in low-light engine room conditions. The transparent type incorporates mica shields for enhanced glass protection, suitable for superheated steam and high-pressure boilers up to 4.0 MPa and 260°C. Built with corrosion-resistant materials (20Mn body, WCB valve body), the gauge includes self-closing safety valves that automatically seal upon glass breakage, preventing steam blowout. Compliant with major classification societies (CCS, ABS, DNV, LR, BV), the ULB-3G ensures safe, reliable, and regulation-compliant boiler water level monitoring.
Main Technical Specification:
| Nominal pressure | Reflex type 2.5MPa |
| Transparent type 4.0MPa | |
| Working temperature | Reflex type 220℃ |
| Transparent type 260℃ | |
| Connection flange | DIN DN20 DN25 |
| Medium | Steam, water |
| Material | Body － 20Mn |
| Glass plate - Boron silicon glass | |
| Valve － WCB（ZG230-450） |

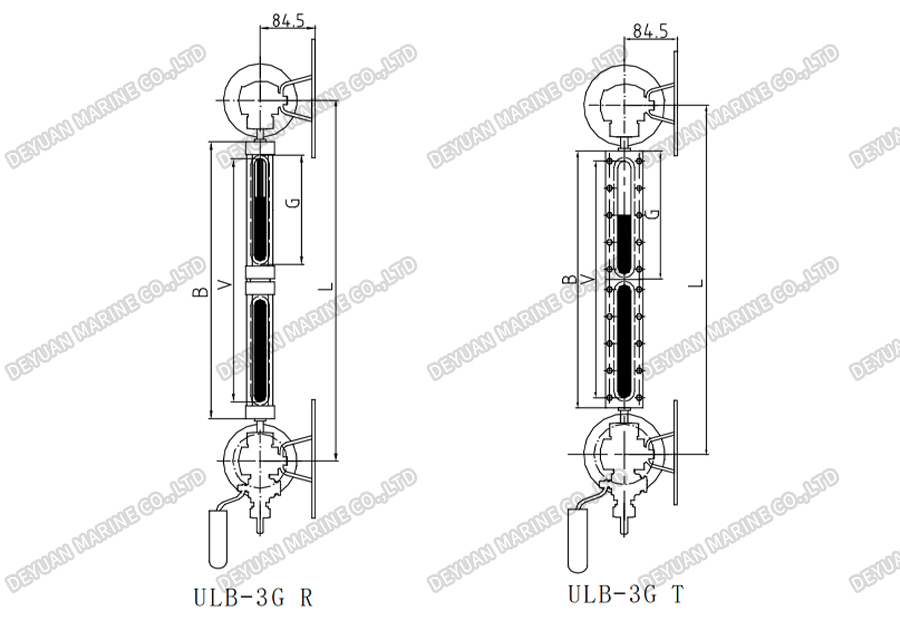

Outline Dimension:
| Code | Nominal length(L) | Code | Nominal length(L) | Code | Nominal length(L) | Code | Nominal length(L) | Code | Nominal length(L) |
| 1X4 | 310 | 1X9 | 460 | 2X8 | 775 | 3X9 | 1170 | 5X7 | 1580 |
| 1X5 | 340 | 2X4 | 515 | 2X9 | 815 | 4X6 | 1350 | 5X8 | 1780 |
| 1X6 | 370 | 2X5 | 575 | 3X6 | 900 | 4X7 | 1385 | 5X9 | 1880 |
| 1X7 | 400 | 2X6 | 635 | 3X7 | 990 | 4X8 | 1445 | 6X8 | 2115 |
| 1X8 | 440 | 2X7 | 695 | 3X8 | 1110 | 4X9 | 1525 | 6X9 | 2235 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
