Product Description

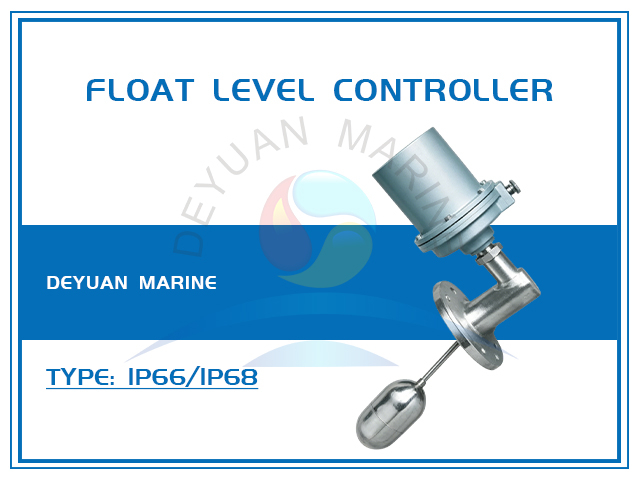

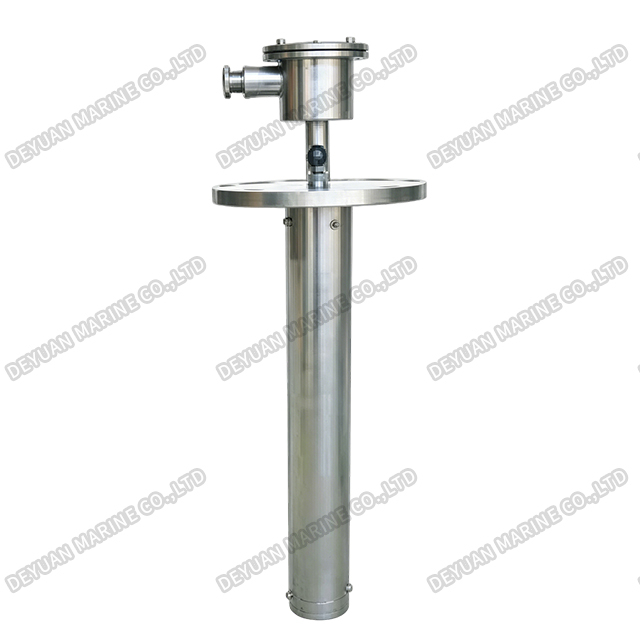

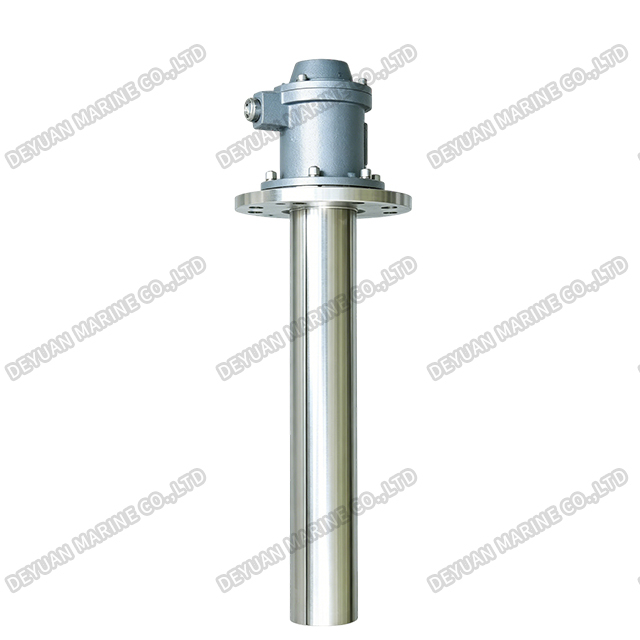

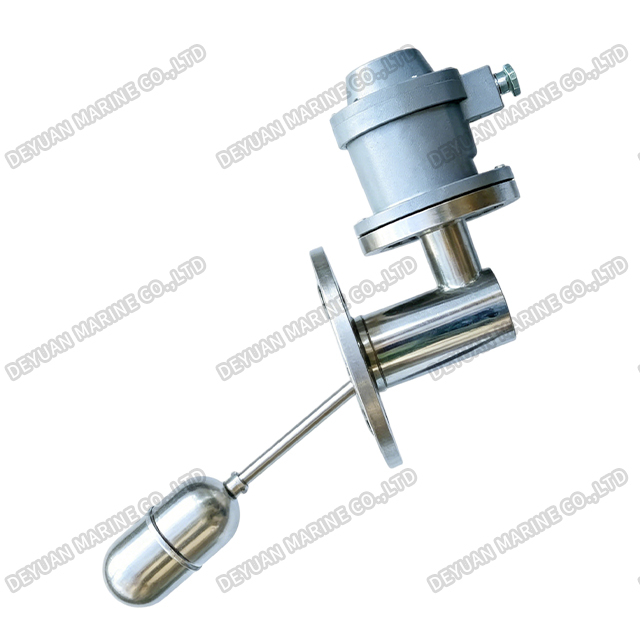

UQK-651/652 Marine Float Level Controller
Product Introduction:
The UQK-651/652 Marine Float Level Controller is a rugged, reliable liquid level control device designed specifically for marine and offshore applications. It is widely used on ships, naval vessels, chemical tankers, and other industrial equipment to perform two-position control and alarm for liquid levels in tanks and compartments .
Main Technical Specification:
| Model | Mounting type | Switch type | Switching error(mm) | Dead zone(mm) | Medium gravity | Accuracy(mm) | Working pressure(MPa) | Medium temp.(C°) | Medium gravity | Protecting pipe dia Φ( mm) | Float dia D(mm) | Protec- tion | ||
| Upper part | Lower part | |||||||||||||
| UQK-651-C UQK-651-C-B | Horizon- tal mounting | SPDT | 20~70 | --- | --- | ≥0.85 | <20 | 1.0 | ≤150 | 0.8~1.2 | --- | Φ60 | IP66 or IP68 | |
| UQK-652-C UQK-652-C-B | Top mounting | 10~40 | <150 | <150 | Φ 76 | Φ60 | ||||||||
| UQK-651-C UQK-651-C-B | Flange standard | GB2506-2005 651-C PNO.6 DN65 652-C PNO.6 DN80 652-B PN1.0 DN125 | contact capacity | SPDT AC:250V 10A DC:125V 0.6A 2XSPDT (Option) | Ex.mark: Ex ia IIC T3/T4/T5/T6 Ga ExdIIC T3/T4/T5/T6 Gb | --- | Φ 60 | |||||||
| UQK-652-C UQK-652-C-B | Range L₀ (mm) | 300~2500 | Φ 76 | Φ60 | ||||||||||
Outline Dimension:
