Product Description

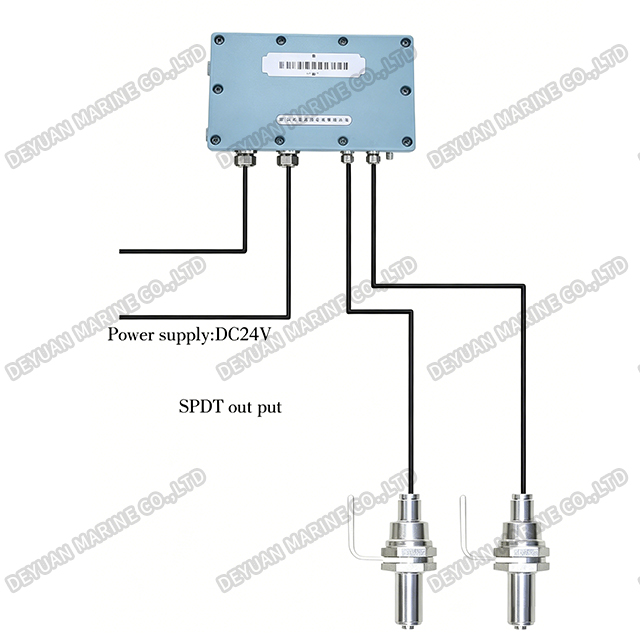

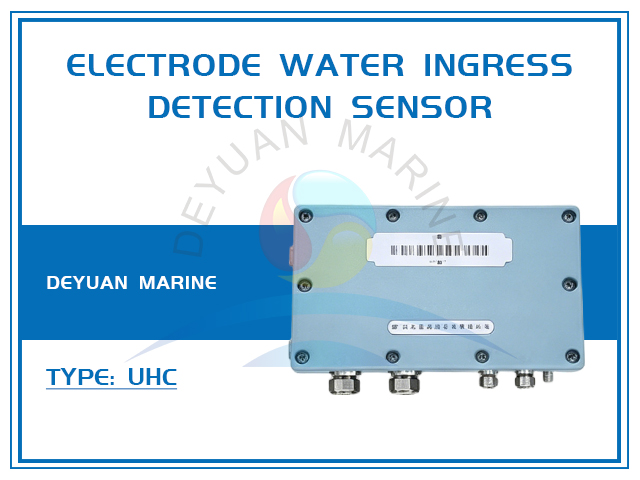

UHC Electrode Type Water Ingress Detection Sensor
Product Introduction:
The Electrode Type Water Ingress Detection Sensor is a reliable monitoring device designed to detect seawater or fresh water leakage in critical areas of a vessel, including engine rooms, pump rooms, cargo holds, shaft alleys, and void spaces. It provides an instant alarm when water contacts the sensor electrodes, helping prevent flooding damage and ensuring unmanned machinery space (UMS) safety compliance.
UHC type electrode type water ingress detection sensor can continuously monitor water level of measured place. It is suitable for monitor and alarm of ships and other industrial places.
Main Technical Specification:
| Alarm accuracy | ±5mm |
| Power voltage | DC24V |
| Protection | IP68 |
| Contact capacity | DC24V 1A |
| Working Temp. | -20℃ ~80℃ |
| Ex.mark | Ex ia IIC T6 Ga |
| Mounting type | Sp.Gr. | Output signal | Switching error(mm) | Applicable medium |
| Top mounting type | 1.0、1.025 | SPDT | ≤5mm | water,seawater |

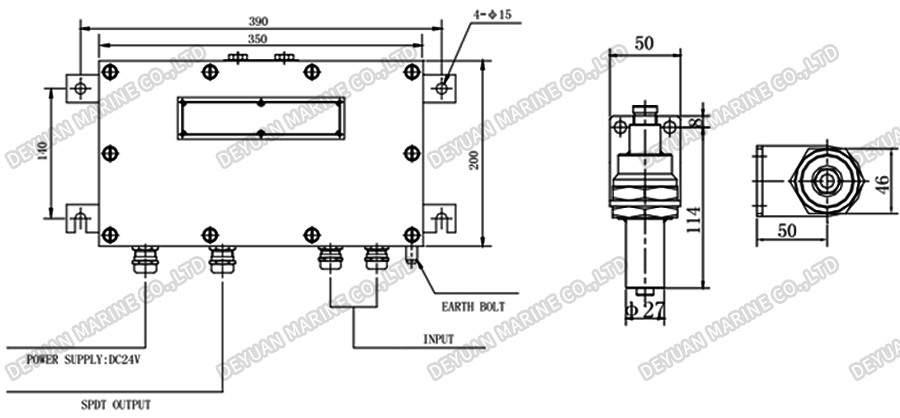

Outline Dimension:
