Product Description

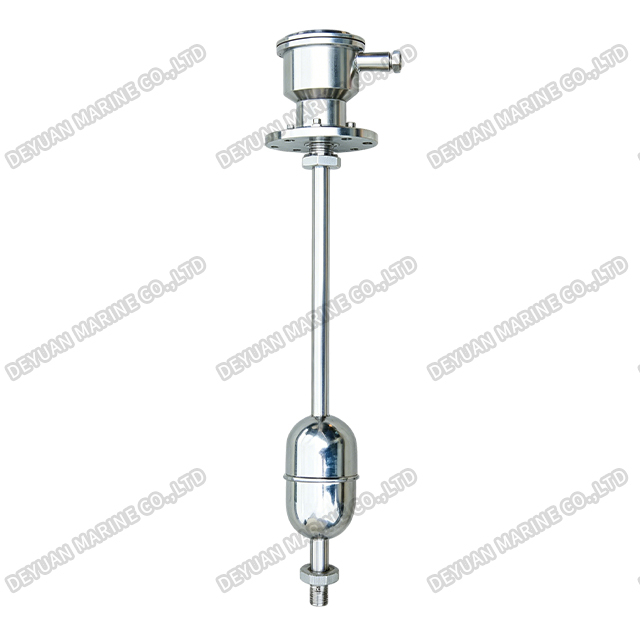

Marine UHB Type Level Transmitter
Product Introduction:

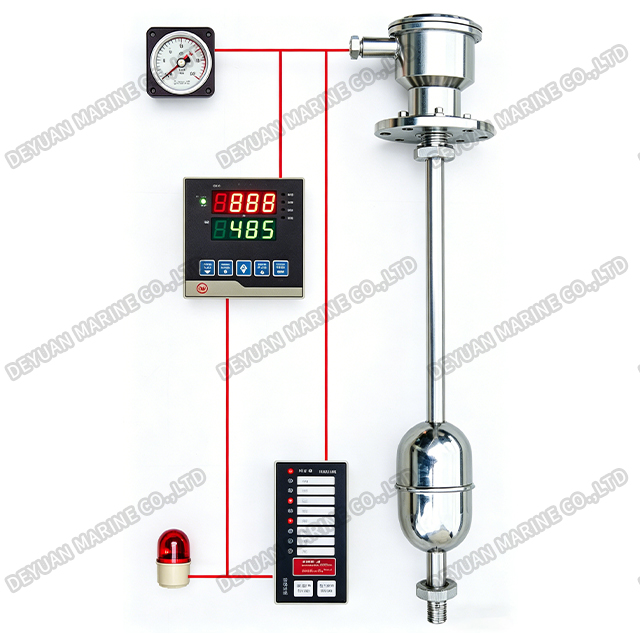

The Marine Level Transmitter is a high-performance electronic device designed for continuous and remote liquid level monitoring in shipboard tanks.UHB type level transmitter matched with level indicator can measure medium`s level in the tank continuously.It is used to measure level in tanks of ships and other industrial equipments.
Main Technical Specification:
| Conn.flange | Float | Mounting type | Medium gravity | Output signal | Medium application | |
| Material | Working temp | |||||
| GB2506-2005 PN1.0 DN 100 | SUS304 SUS316L | -20~100℃ | Top mounting | ≥0.80 | DC24V 4~20mA | Water,Seawater,F.0.,D,0.,L0. |
| 0~1KΩ | ||||||
| Measuring accuracy | ±10mm |
| Measuring range | 0~500 to 6000mm（option） |
| Protection | IP66/IP68 |
| Nominal pressure | 1.0MPa |
| Power voltage | DC 24V ±10% |
| Ex. mark | Ex iaⅡCT4~T6 Ex dⅡCT4~T6 |

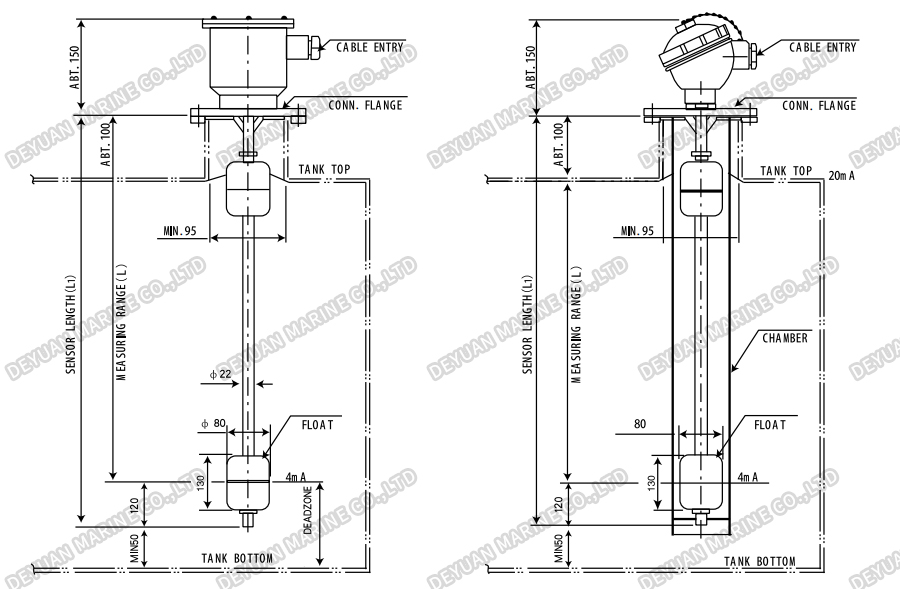

Outline Dimension:
