Product Description

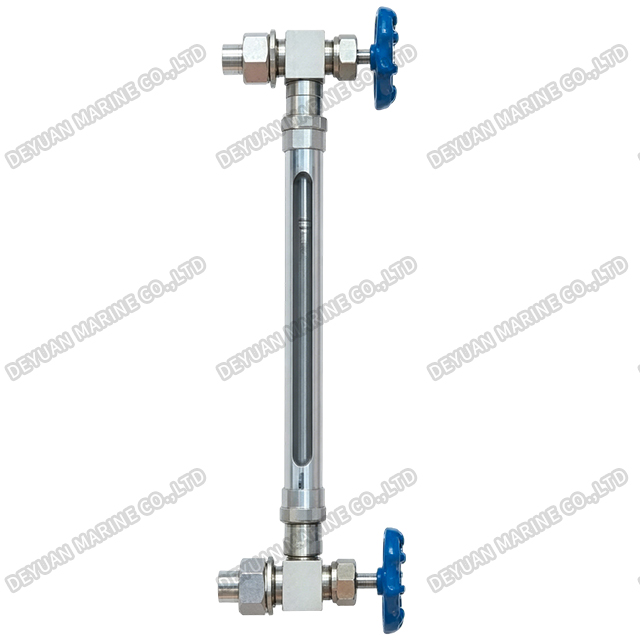

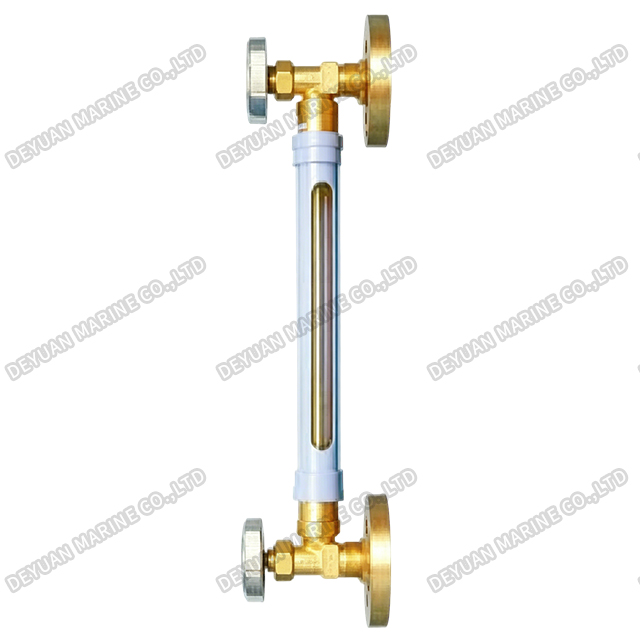

Marine ULG Tubular Type Glass Level Gauge
Product Introduction:
Our Marine Tubular Type Glass Level Gauge is a simple, reliable, and cost-effective solution for direct visual indication of liquid levels in shipboard tanks and vessels.ULG type tubular type glass level gauge which has the characteristic of designing novelty, installing coneniently is used to measure low viscosity medium’s level in miniature tank.
Main Technical Specification:
| Model | Max working pressure | Working temperature | Medium | Connection type |
| ULG-□□/□ | 0.2MPa | 0~100℃ | 0il,water | Weld type(H type) Flange type CB/T 46-2007 DN20 PN16 |
| Product characteristic | When the glass tube breaks accidentally,the inside valve can close autamatically without liquid leakage. | |||

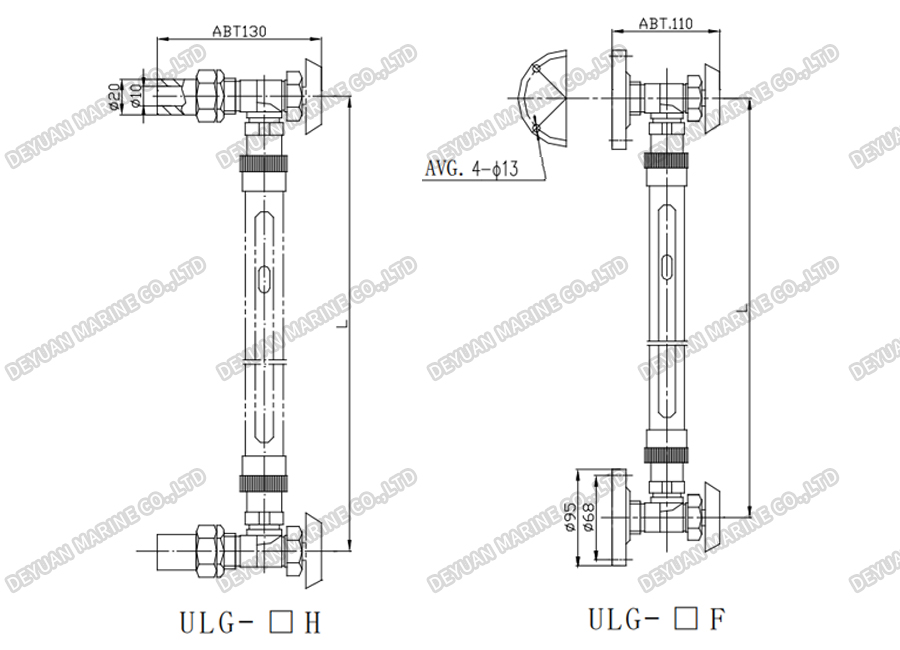

Outline Dimension:
Nominal Length:
| Center to center length L(mm) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 |
| 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1100 | |
| 1200 | 1300 | 1400 | 1500 |
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
