Product Description

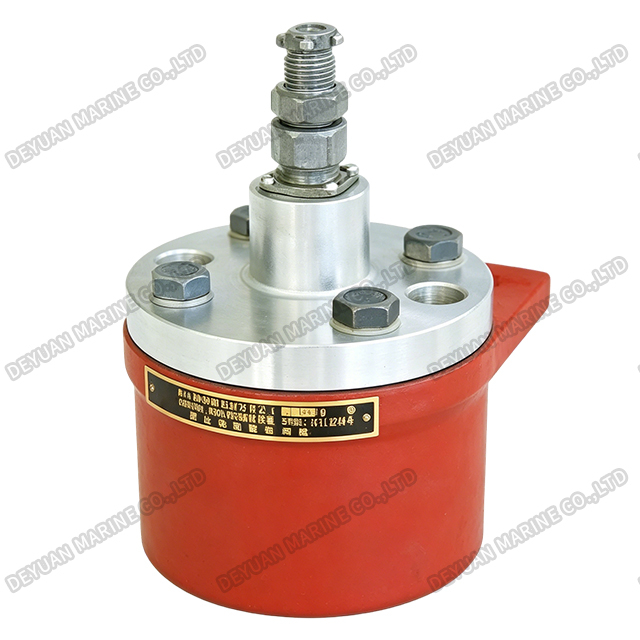

RYK Type Fuel Oil Leakage Alarm Switch
Product Introduction:
The RYK type F.O. leakage level switch consists of a float, lever, magnetic switch, housing, etc. It is made of a sealed magnetic switch switching mechanism and stainless steel material. Its characteristics are small size, high sensitivity, anti-vibration, and reliable operation. It can be widely used in diesel engines and other industrial instruments to provide control and alarm for fuel oil leakage in the oil supply loop.
Main Technical Specification:
| Model | PN | Contact capacity | Working temp. | Medium gravity | No.of Control points | Material of float and chamber | Casing material |
| RYK-3001 | 1.0MPa | AC220V 0.5A (SPDT) | -10~80℃ | ≥0.8 | 1 | SUS 304 | Q235A SUS304 |

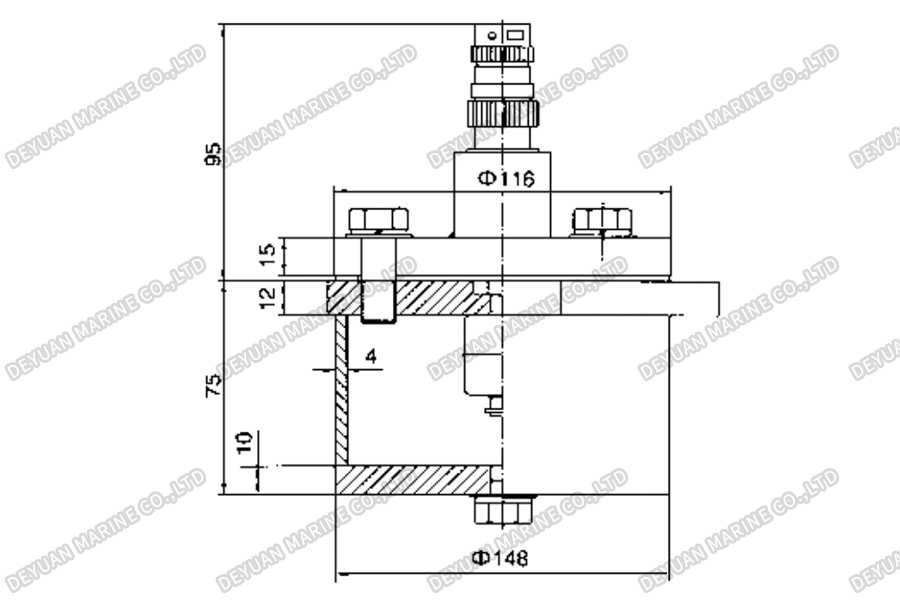

Outline Dimension:

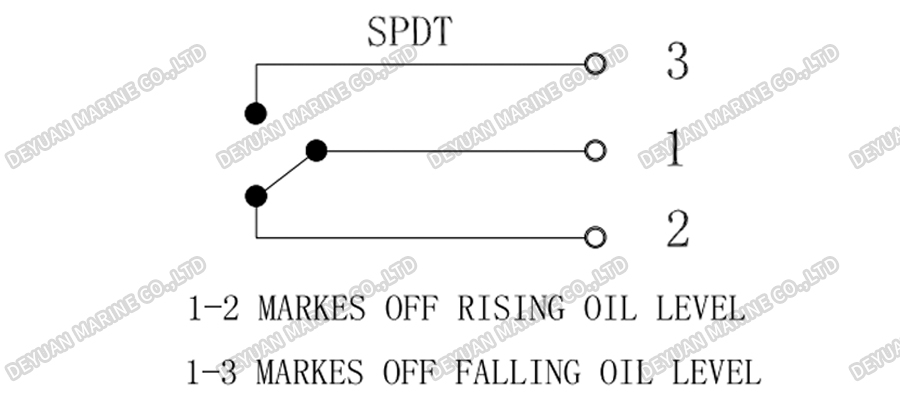

Wiring Diagram:
