Product Description
HB-SPCG Self-Powered Content Gauge
Product Introduction:
Self-powered content gauge unit consists of transmitter chamber, capillary tube and indication gauge.Self-powered content gauge is widely used for Diesel oil, Lub.oil, Heavy fuel oil, Solvents gas oil, Fresh water and all no corrosive liquid.
Operating Principle:
The weight of the fluid column in the tank will be transformed into gas pressure in the transmitter chamber.The gas pressure is transferred to the indicating gauge through the capillary tube.That means,the weight of the fluid column in the tank is directly proportional to the indication.In case of over or underpressure in the tank,It is impossible to compensate the value of gauging
Main Technical Specification:
| Range | 1~30m |
| Accuracy | 1.6 |
| Over load | 120% above maximum range |
| Operation temperature | Indication gauge :-20℃ ~55℃ |
| Transmitter chamber :-20℃ ~80℃ | |
| Dial diameters | φ150 mm |
| Casing material | Aluminum Alloy Or SUS304 |
| Measuring unit | m/m3 |

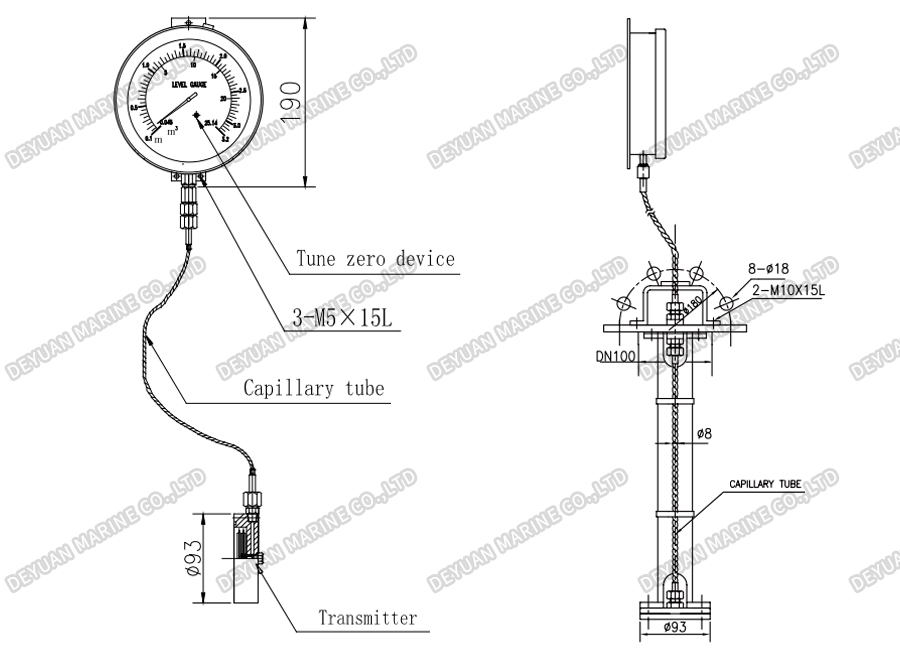

Outline Dimension:

Standard Model And Specification:
| Model | Application | Connection Size | Accuracy | Capillay Tube Length | Material | |||
| Low viscosity | High viscosity | Indication Gauge | Capillary Tube | Diaphragm | ||||
| HB-SPCG-150V | General Liquid | 5K,10K25A | 5K,10K40A | 1.6 grade | ≥1m ≤8m | AC or SUS304 | SUS304 | QBe2.0 |
| HB-SPCG-150S | JIS 5K,10K100A GB2506-2005 DN100 PN6 | |||||||
| Please consult with factory when other condition are required | ||||||||
Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
