Product Description

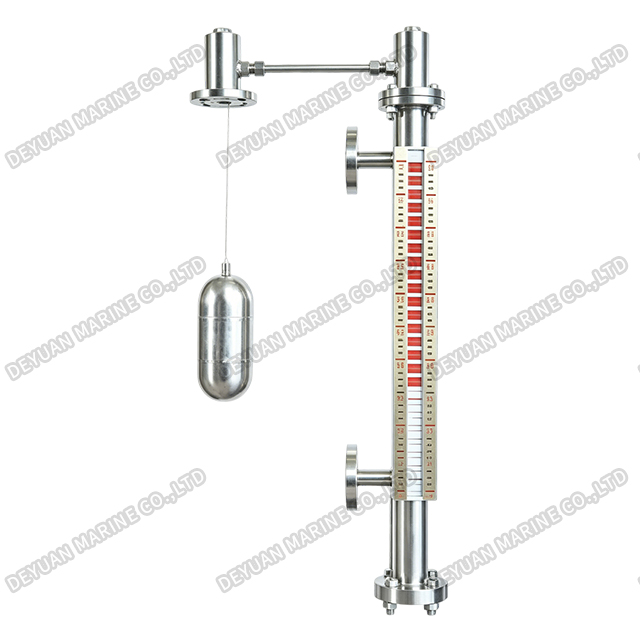

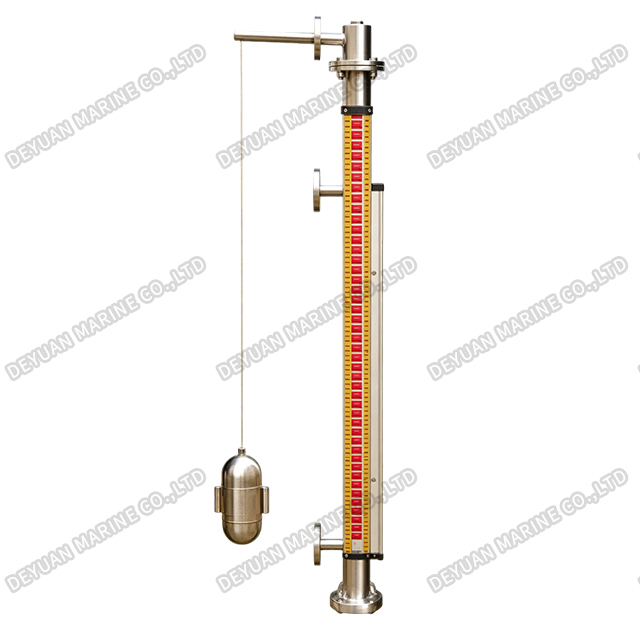

Marine Float Type Level Gauge UHZ-515
Product Introduction:
The Marine Float Type Level Gauge is a reliable liquid level measuring device designed specifically for harsh marine environments. It operates on the simple buoyancy principle: a float rises and falls with the liquid surface, and its movement is transmitted to an external indicator via magnetic coupling or mechanical linkage. With the characteristics of simple structure, stability and reliability, UHZ type float type level gauge can be used to measure level liquid tanks in all kinds of ships.
Main Technical Specification:
| Model | UHZ-515Z□/-□-□□-□ |
| Indication accuracy | ±20mm |
| Nominal length | 500~6000mm |
| Medium gravity | ＞0.8 |
| Working pressure | ≤1.6MPa |
| Medium temperature | ≤150℃ |
| Medium viscosity | ≤ 0.01 Pa·S |
| Connection flange | CBM1012-81 DN125 PN5/GB2506~2005/DN20PN16 |
| Alarm switch | AC220V 1.0A retaining type (Option) |
| Output signal | DC24V 4~20mA (Option) |

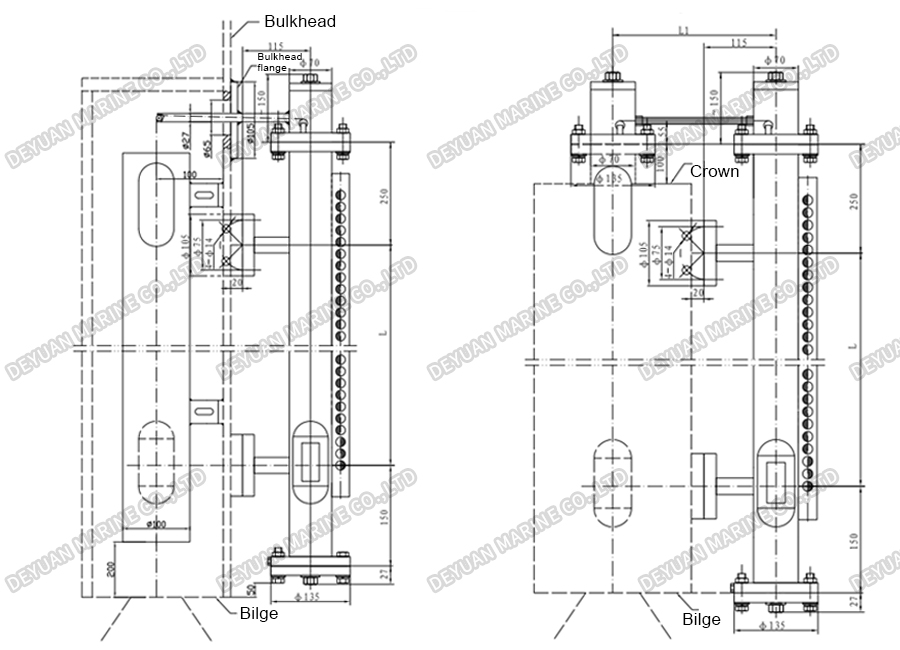

Outline Dimension:
