Product Description

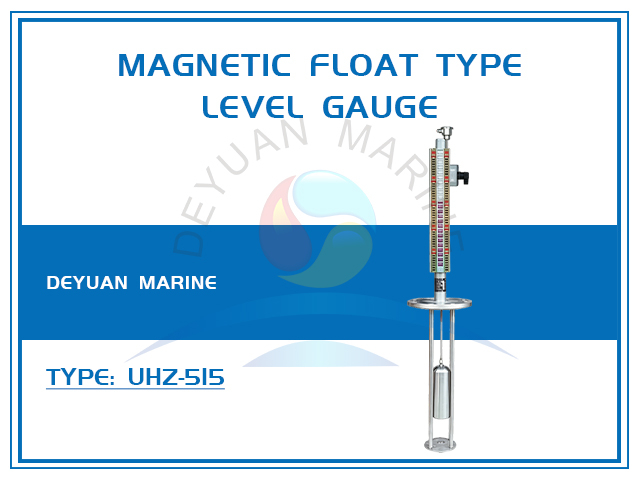

Marine Magnetic Float Type Level Gauge UHZ-515
Product Introduction:
The UHZ-515 is a marine magnetic float level gauge specifically designed for top mounting applications, making it ideal for underground tanks, deep storage vessels, and locations where side mounting is not feasible .
UHZ-512 type magnetic float level gauges are used to meaure and control level of the liquid in the tank with low freezing point and poor fluidity in ship and other industrial equipment
Main Technical Specification:
| Model | UHZ-515Z□/-□-□□-□ |
| Indication accuracy | ±20mm |
| Nominal length | 500~3000mm |
| Medium gravity | ＞0.8 |
| Working pressure | ≤1.6MPa |
| Medium temperature | ≤150℃ |
| Medium viscosity | ≤ 0.01 Pa·S |
| Connection flange | CBM1012-81 DN125 PN5/GB2506~2005/DN20PN16 |

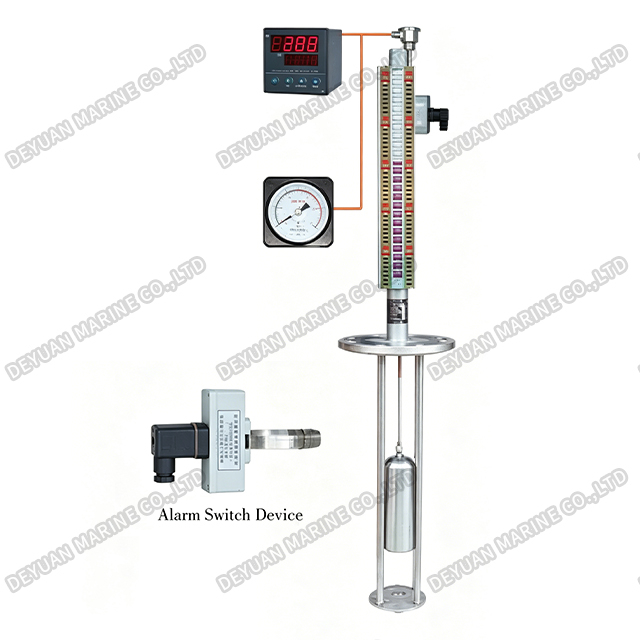

| Alarm switch | AC220V 1.0A retaining type (Option) |
| Output signal | DC24V 4~20mA (Option) |

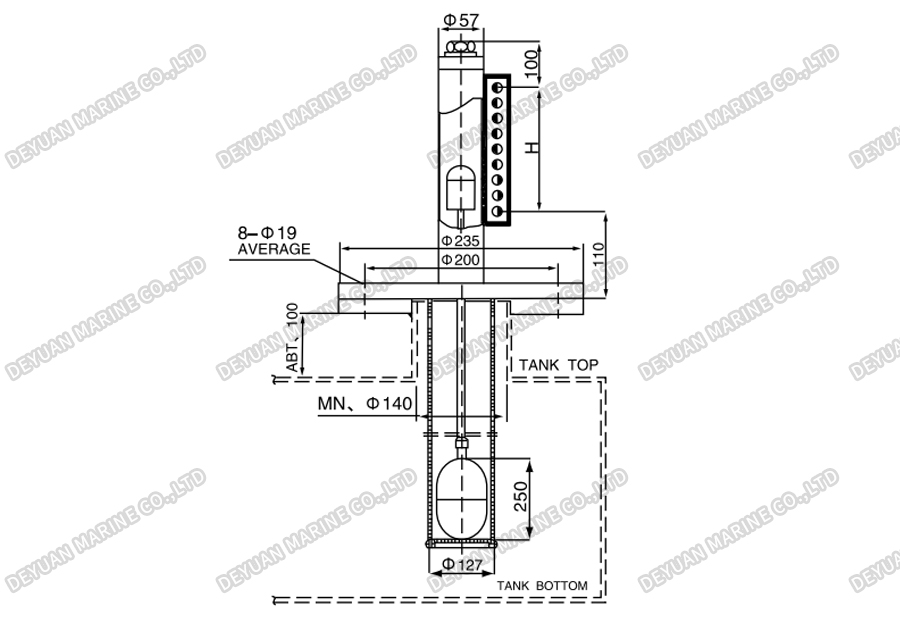

Outline Dimension:
