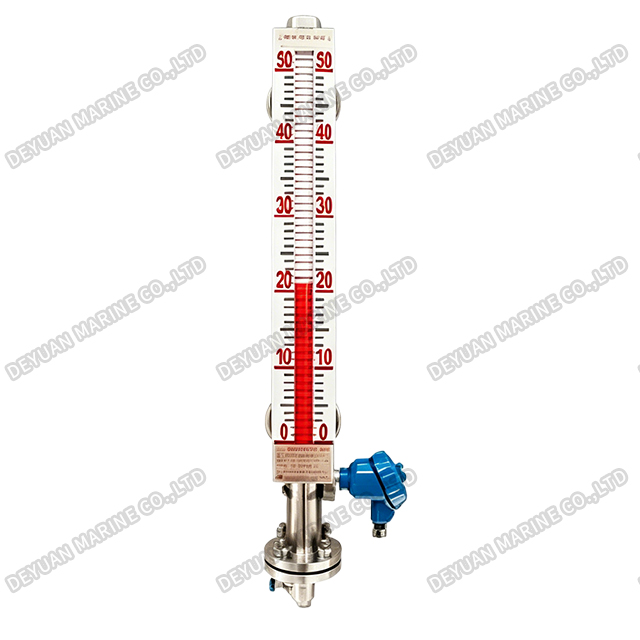

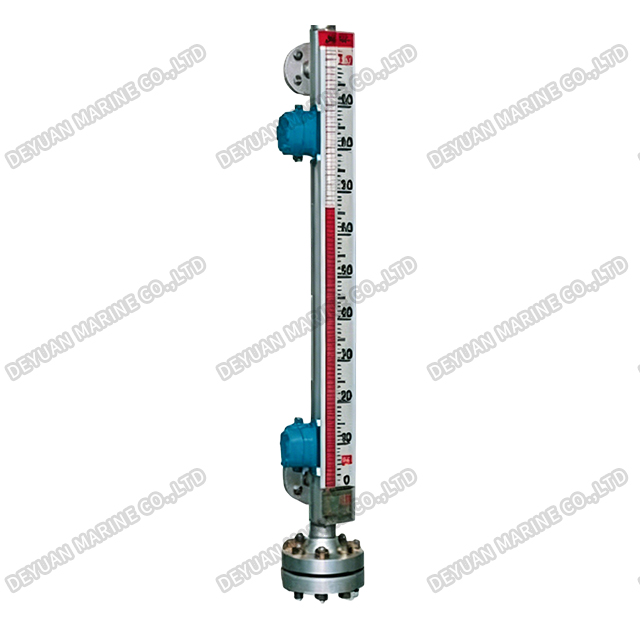

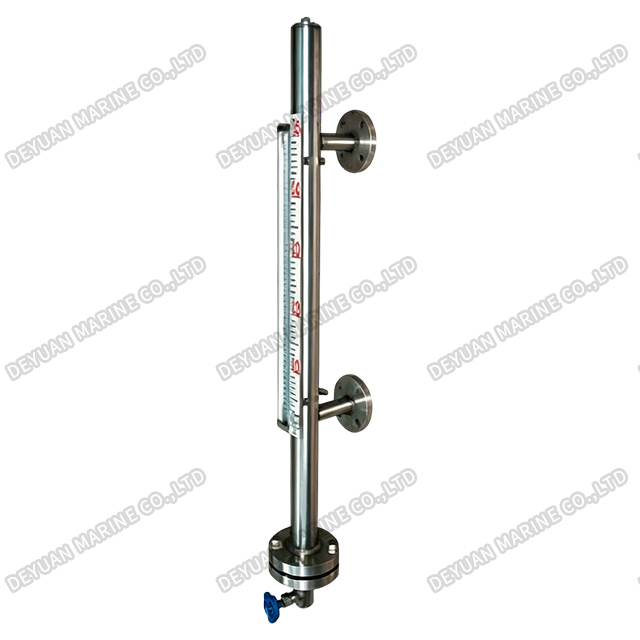

UHZ-57 Series Magnetic Level Gauge
Product Introduction:
Magnetic level gauge is a new type of field direct reading liquid level indicator. Advanced technology, clear instructions and reliable work. It can be used as a liquid level indicator for important tanks in engine room, such as fuel daily tank, fuel precipitation tank, lubricating oil precipitation tank, lubricating oil storage tank, fresh water tank, etc. It can also be used as a liquid level indicator for various underground small liquid storage devices on land or containers whose side faces are not suitable for opening.
Main Technical Specification:
| Measuring range | 0-500mm,0~6000mm |
| Accuracy | ±20mm |
| Diameter of column turnover | 10mm |
| Nominal pressure | 1.6-10.0MPa |
| Medium density | ≥0.45g/cm³ |
| Density difference | ≥0.15g/cm³ (different medium level） |
| Medium Temp. | -20°C~250°C((Max 450°C） |
Characteristic：
*Suitable for measuring the liquid level and boundary position of liquid medium in containers;
*Large measuring range, not limited by the height of storage tank;
*Simple structure, convenient installation and low maintenance cost;
*Corrosion-resistant, power-free and explosion-proof; · Obtain CCS type approval;
*The reading is intuitive, and the direction of the observation indicator can be changed according to needs;
*The indicating mechanism is completely isolated from the measured medium, so it has good sealing, high reliability and safe use;
